The dynamic Sonus faber Palladio PC 563 P 2-way Point In-Ceiling Speaker is now available on Ooberpad. This line of Custom installation speakers in-wall and in-ceiling directly refer to the Olympica Nova Collection for the choice of materials, the electroacoustic project and design. These models are an authentic representation of a unique choice in the Custom Installation landscape: the first speakers that even furnishes your home. We can subdivide the Palladio collection into two lines: Level 5 and Level 6, ideal completion of Sonetto and Olympica collections respectively with 13 models in total. Level 5 offers 2 In-Wall and 4 In-Ceiling speakers and the Level 6 includes 2 In-Wall and 5 In-Ceiling speakers. In addition to this, both lines boast an option to add a versatile passive subwoofer (PS-G101).

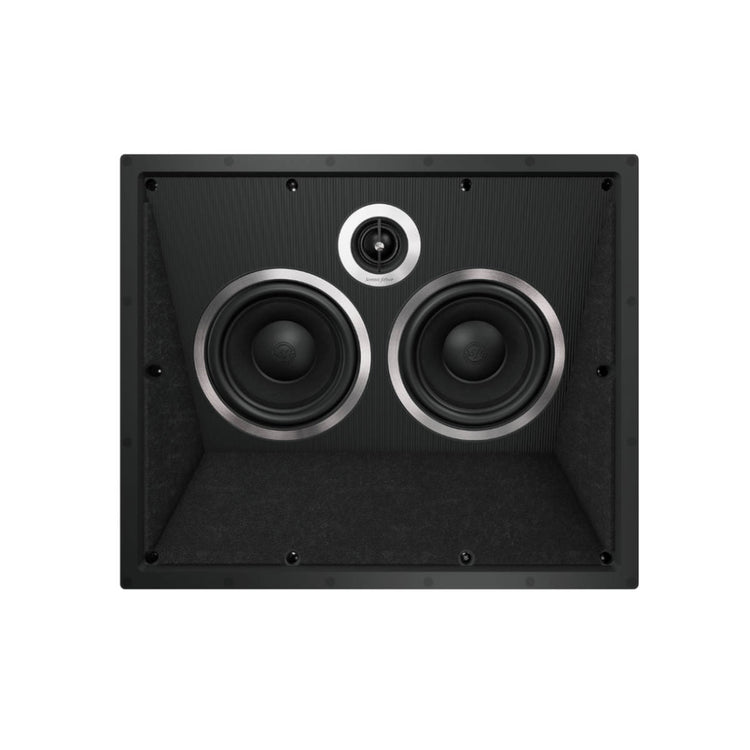

The PC-563 P directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design. Tweeter and mid-woofers are enriched with satin aluminum trims. Whenever front speakers cannot be placed on walls, this model is made to be mounted in the ceiling. By positioning drivers to be angled to the surface, the sound emission aims to the direction of the listening position. The PC-563 P comes packed with a magnetic edgeless square metal grille, ready to be painted.
Warranty
2-year manufacturer's warranty
Key Features:
- The PC-563 P directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design
- Whenever front speakers cannot be placed on walls, this model is made to be mounted in the ceiling. By positioning drivers to be angled to the surface, the sound emission aims to the direction of the listening position

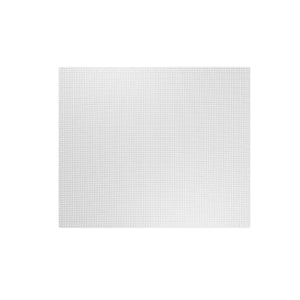

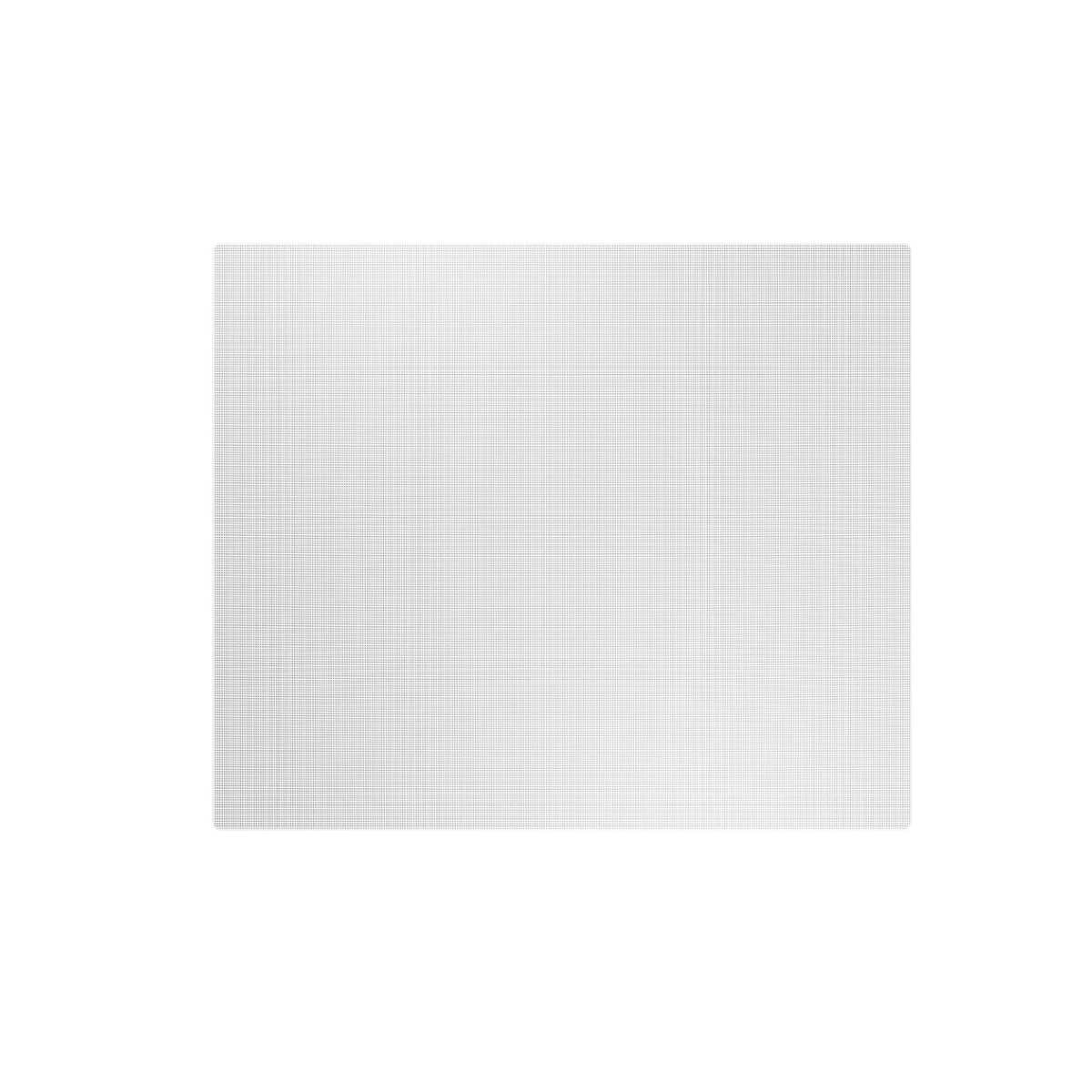

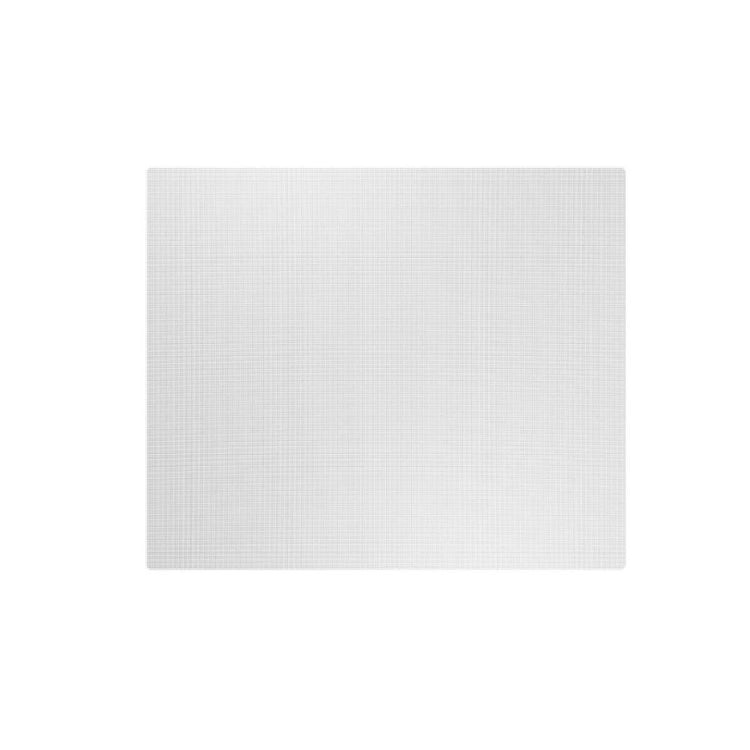

- The PC-563 P is equipped with a magnetic edgeless square metal grille,

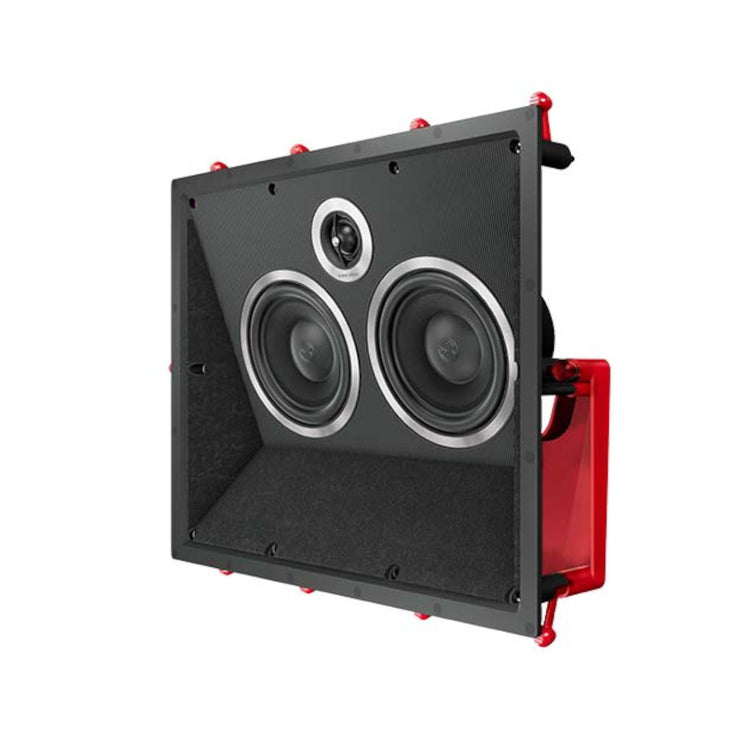

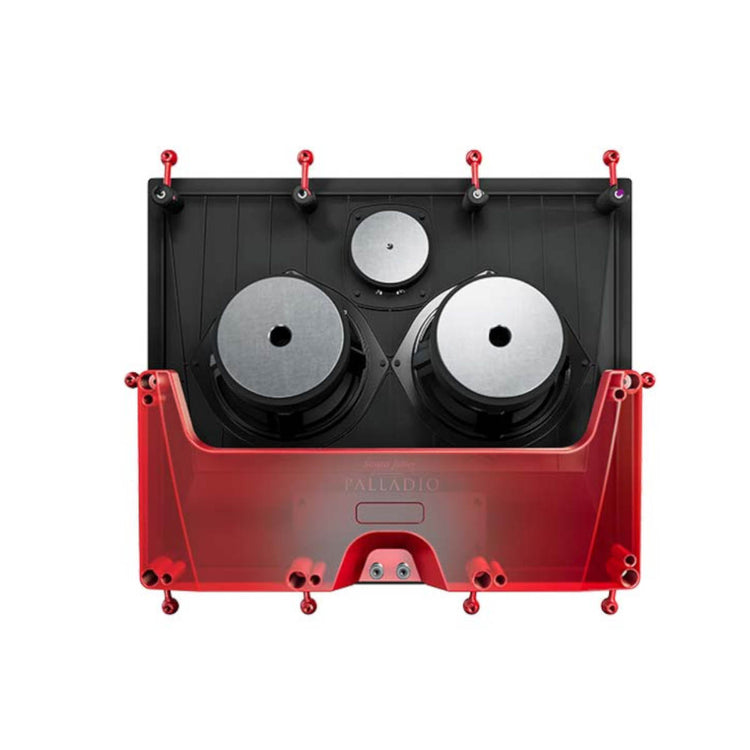

ready to be painted - Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard
Benefits of Sonus faber Palladio PC 563 P 2-way Point In-Ceiling Speaker:
Palladio - The new custom collection
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
Level 5 and Sonetto - Harmonic Integration
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).
The voice of Sonus faber
It's timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
Easy to install and customize
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Where to Buy?
Buy Sonus faber Palladio PC 563 P 2-way Point In-Ceiling Speaker (Each) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Sonus faber Palladio PC 563 P 2-way Point In-Ceiling Speaker:
Brand & Model # | Palladio PC 563 P |
Loudspeaker System |
Two-way point In-ceiling system. Infinite baffle |
Tweeter - DAD Driver |
29 mm / 1.1 in |
Midwoofer | 2 x 165 mm / 2 x 6.5 in |
Crossover Frequency - Paracross Topology | 1,650 Hz |
Frequency Response |
45 - 25,000Hz(-6dB) |
Sensitivity (2.83 Vrms @ 1m) |
92 dB SPL |
Nominal Impedance |
4 ohm |
Coverage Angle (1 kHz, @-6 dB) | ± 45° H - ± 60° V |
Suggested Amplifier Power Output |
40 – 250 W without clipping |
Frame Outer |
460 x 386 mm / 18.1 x 15.1 in |
Cut Out | 433 x 359 mm / 17 x 14.1 in |
Depth Behind Surface | 148 mm / 5.82 in |
Protrusion | 13 mm / 0.51 in |
Weight |
6.5 Kg / 14.3 lb |
Included In The Box | Bezel-Free square magnetic grille |
