About

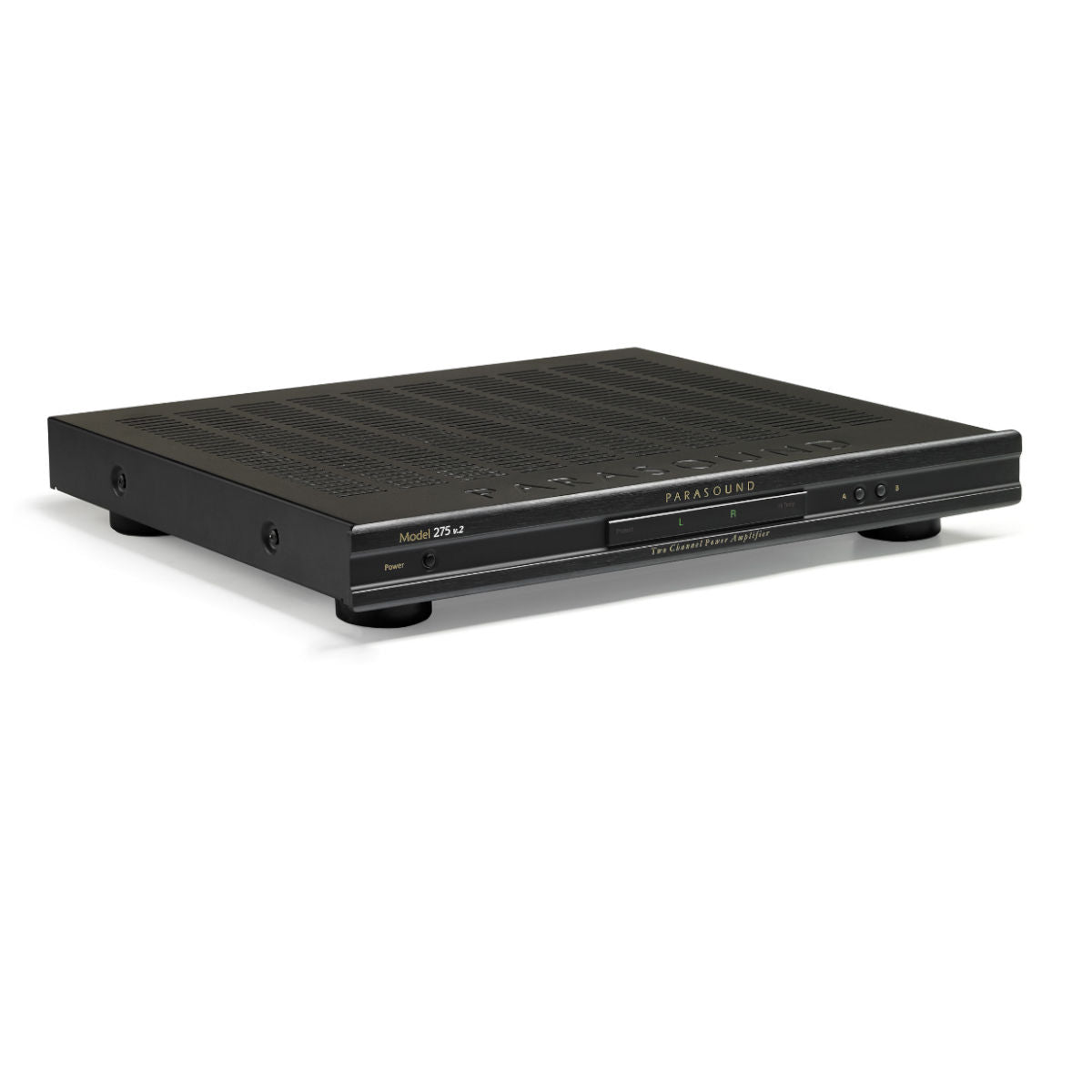

Ooberpad announces the availability of Parasound NewClassic 275 v.2 Two Channel Power Amplifier. This is the new v.2 version of the Model 275 with several new features for enhanced performance and convenience. First is a new A/B speaker button lockout switch on the rear panel. When this switch is set to Lockout, the front panel A and B buttons are disabled and speakers A and B will always be on. This can be particularly useful for a professional audio installer who never intends for the client to use the front panel buttons.
Warranty
1-year manufacturer's warranty
Key Features:
- 90 watts x 2 into 8 Ω (all channels driven)
- 150 watts x 2 into 4 Ω or 2 Ω (all channels driven)
- 200 watts x 1 bridged into 8 Ω or 4 Ω
- 20 amps peak current per channel
- 2 Ohm stable operation with load selector switch
- Two pairs of speaker outputs with front panel A/B buttons

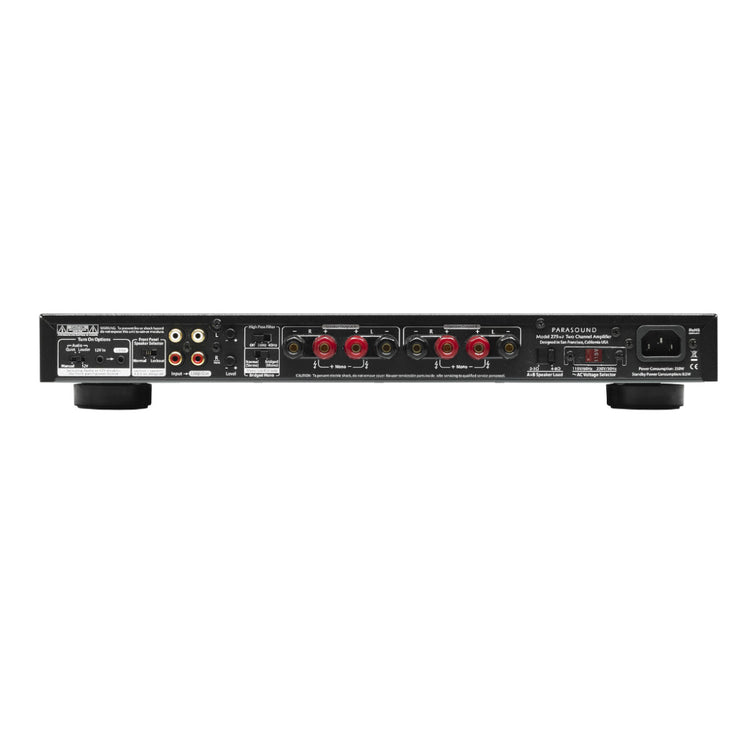

- Rear-mounted lockout switch disables front A/B buttons
- High pass filter, switchable for 20Hz or 40Hz
- Automatic on/off by DC trigger with looping output
- Automatic on/off by audio signal with 2 sensitivity settings
- Fully discrete circuitry with high current toroid transformer
- Bridging switch for stereo or mono operation
- Efficient, low heat design
- DC Servo and relay protection circuits
- Rear-mounted left and right gain controls
- Standby, channel status and high temperature indicators
- Gold-plated RCA input jacks
- Heavy duty 24k gold-plated 5-way speaker terminals
- 115/230v selector on rear panel
- 1U rack mount kit available separately (Model RMK11)
Benefits of Parasound NewClassic 275 v.2 Two Channel Power Amplifier:
The Perfect Amplifier for Smaller Rooms
Revamped v.2 Features
The new ultra-sensitive two-position audio trigger allowed Parasound to eliminate the audio trigger sensitivity knob. A 'Quieter' setting will automatically turn on the amp at a very low volume. If this isn't sensitive enough for your system needs, you can also use the 'Louder' setting. The 12 volt trigger jacks change from 2.5mm to 3.5mm. The standard for 12 volt triggers in the audio world has become the 3.5mm size and all new Parasound products will change to use this larger size. The ground lift switch in the rear panel has been removed. Changes to the internal grounding of the amps make this switch unnecessary. To conserve energy and meet Energy Star and EU power consumption requirement NewClassic amps only require 0.5 watts in standby. Updated front and rear cosmetics give the v.2 amps a fresh new look. The front panel has been updated with rounded corners, a new display lens, and updated silk screening. The rear panel has updated silk screening making it easier to read and understand the functions.
Where to buy?
Buy Parasound NewClassic 275 v.2 Two Channel Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound NewClassic 275 v.2 Two Channel Power Amplifier:
| Brand & Model # | Parasound NewClassic 275 v.2 |
| Power Output - (RMS power, 20 Hz - 20 kHz) All Channels Driven |
90 watts x 2, 8Ω 150 watts x 2, 4Ω 150 watts x 2, 2Ω (Load switch set to 2-3Ω) |
| Bridged Mono |
200 watts x 1, 8Ω 200 watts x 1, 4Ω (Load switch set to 2-3Ω) |
| Current Capacity | 20 amps peak per channel |
| Frequency Response |
20 Hz - 50 kHz, +0/-3 dB, 1 watt |
| Dynamic Headroom | 1.3 dB |
| Total Harmonic Distortion (THD) |
0.35% at full rated output 0.025% at average listening levels |
| IM Distortion | 0.05 % |
| Transient IM Distortion | Not measurable |
| S/N Ratio |
110 dB at rated output, IHF A-weighted 103 dB at rated output, unweighted 93 dB at 2.828 V output, IHF A-weighted 84 dB at 2.828 V output, unweighted |
| Input Impedance | 33 k Ω |
| Input Sensitivity | 800 mV for full rated output (28dB) |
| Inter-Channel Crosstalk | 80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz |
| Damping Factor | Over 150 at 20Hz |
| 12V Trigger Turn On | DC 9 - 12V, 15 mA |
| Audio Turn On | Quieter: 1 mV Louder: 6 mV |
| AC Power Requirement |
110 - 120 V / 220 -240 V, 50 - 60 Hz 0.5 watts standby 25 watts Idle (no audio) 350 watts full output |
| Dimensions |
17-1/4" Wide 16" Deep, with cables connected 2-1/2" High with feet, 1-3/4" panel only (1U) (437 x 406 x 63mm, 44.1 mm panel only) |
| Net Weight |
20 lbs (9.1 kg) |
Ooberpad announces the availability of Parasound NewClassic 275 v.2 Two Channel Power Amplifier. This is the new v.2 version of the Model 275 with several new features for enhanced performance and convenience. First is a new A/B speaker button lockout switch on the rear panel. When this switch is set to Lockout, the front panel A and B buttons are disabled and speakers A and B will always be on. This can be particularly useful for a professional audio installer who never intends for the client to use the front panel buttons.
Warranty
1-year manufacturer's warranty
Key Features:
- 90 watts x 2 into 8 Ω (all channels driven)
- 150 watts x 2 into 4 Ω or 2 Ω (all channels driven)
- 200 watts x 1 bridged into 8 Ω or 4 Ω
- 20 amps peak current per channel
- 2 Ohm stable operation with load selector switch
- Two pairs of speaker outputs with front panel A/B buttons
- Rear-mounted lockout switch disables front A/B buttons
- High pass filter, switchable for 20Hz or 40Hz
- Automatic on/off by DC trigger with looping output
- Automatic on/off by audio signal with 2 sensitivity settings
- Fully discrete circuitry with high current toroid transformer
- Bridging switch for stereo or mono operation
- Efficient, low heat design
- DC Servo and relay protection circuits
- Rear-mounted left and right gain controls
- Standby, channel status and high temperature indicators
- Gold-plated RCA input jacks
- Heavy duty 24k gold-plated 5-way speaker terminals
- 115/230v selector on rear panel
- 1U rack mount kit available separately (Model RMK11)
Benefits of Parasound NewClassic 275 v.2 Two Channel Power Amplifier:
The Perfect Amplifier for Smaller Rooms
Revamped v.2 Features
The new ultra-sensitive two-position audio trigger allowed Parasound to eliminate the audio trigger sensitivity knob. A 'Quieter' setting will automatically turn on the amp at a very low volume. If this isn't sensitive enough for your system needs, you can also use the 'Louder' setting. The 12 volt trigger jacks change from 2.5mm to 3.5mm. The standard for 12 volt triggers in the audio world has become the 3.5mm size and all new Parasound products will change to use this larger size. The ground lift switch in the rear panel has been removed. Changes to the internal grounding of the amps make this switch unnecessary. To conserve energy and meet Energy Star and EU power consumption requirement NewClassic amps only require 0.5 watts in standby. Updated front and rear cosmetics give the v.2 amps a fresh new look. The front panel has been updated with rounded corners, a new display lens, and updated silk screening. The rear panel has updated silk screening making it easier to read and understand the functions.
Where to buy?
Buy Parasound NewClassic 275 v.2 Two Channel Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound NewClassic 275 v.2 Two Channel Power Amplifier:
| Brand & Model # | Parasound NewClassic 275 v.2 |
| Power Output - (RMS power, 20 Hz - 20 kHz) All Channels Driven |
90 watts x 2, 8Ω 150 watts x 2, 4Ω 150 watts x 2, 2Ω (Load switch set to 2-3Ω) |
| Bridged Mono |
200 watts x 1, 8Ω 200 watts x 1, 4Ω (Load switch set to 2-3Ω) |
| Current Capacity | 20 amps peak per channel |
| Frequency Response |
20 Hz - 50 kHz, +0/-3 dB, 1 watt |
| Dynamic Headroom | 1.3 dB |
| Total Harmonic Distortion (THD) |
0.35% at full rated output 0.025% at average listening levels |
| IM Distortion | 0.05 % |
| Transient IM Distortion | Not measurable |
| S/N Ratio |
110 dB at rated output, IHF A-weighted 103 dB at rated output, unweighted 93 dB at 2.828 V output, IHF A-weighted 84 dB at 2.828 V output, unweighted |
| Input Impedance | 33 k Ω |
| Input Sensitivity | 800 mV for full rated output (28dB) |
| Inter-Channel Crosstalk | 80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz |
| Damping Factor | Over 150 at 20Hz |
| 12V Trigger Turn On | DC 9 - 12V, 15 mA |
| Audio Turn On | Quieter: 1 mV Louder: 6 mV |
| AC Power Requirement |
110 - 120 V / 220 -240 V, 50 - 60 Hz 0.5 watts standby 25 watts Idle (no audio) 350 watts full output |
| Dimensions |
17-1/4" Wide 16" Deep, with cables connected 2-1/2" High with feet, 1-3/4" panel only (1U) (437 x 406 x 63mm, 44.1 mm panel only) |
| Net Weight |
20 lbs (9.1 kg) |
Parasound NewClassic 275 v.2 Two Channel Power Amplifier
Country of Origin: Usa
