From the house of Ooberpad arrives Parasound NewClassic 2250 v.2 Two-Channel Power Amplifier. Here comes the powerhouse that is equipped with two-channel power amp that embodies perfection and affordability. Parasound's NewClassic Model 2250 v2 empowers you with abundant power for an earth-shattering, captivating movie house sound quality. And the THX Ultra2 certification means that it adheres to the top performance standards for convincing reproduction of movie soundtracks.
Warranty
1-year manufacturer's warranty
Key Features:
- THX Ultra2 certified
- 275 watts x 2 into 8 Ω (all channels driven)
- 400 watts x 2 into 4 Ω or 2 Ω (all channels driven)
- 750 watts x 1 bridged into 8 Ω or 4 Ω
- 45 amps peak current per channel
- 2 Ohm stable operation with load selector switch
- Two pairs of speaker outputs with front panel A/B buttons
- Rear-mounted lockout switch disables front A/B buttons
- High pass filter, switchable for 20Hz or 40Hz
- Automatic on/off by DC trigger with looping output
- Automatic on/off by audio signal with 2 sensitivity settings
- Fully discrete circuitry with high current toroid transformer
- Bridging switch for stereo or mono operation
- Efficient, low heat design
- DC Servo and relay protection circuits
- Rear-mounted left and right gain controls
- Standby, channel status and high temperature indicators
- Gold-plated RCA input jacks
- Heavy duty 24k gold-plated 5-way speaker terminals
- 115/230v selector on rear panel
- 3U rack mount kit available separately (Model RMK33)
Benefits of Parasound NewClassic 2250 v.2 Two Channel Power Amplifier:
Revamped Features That Power Boost the Performance and Ease of Use

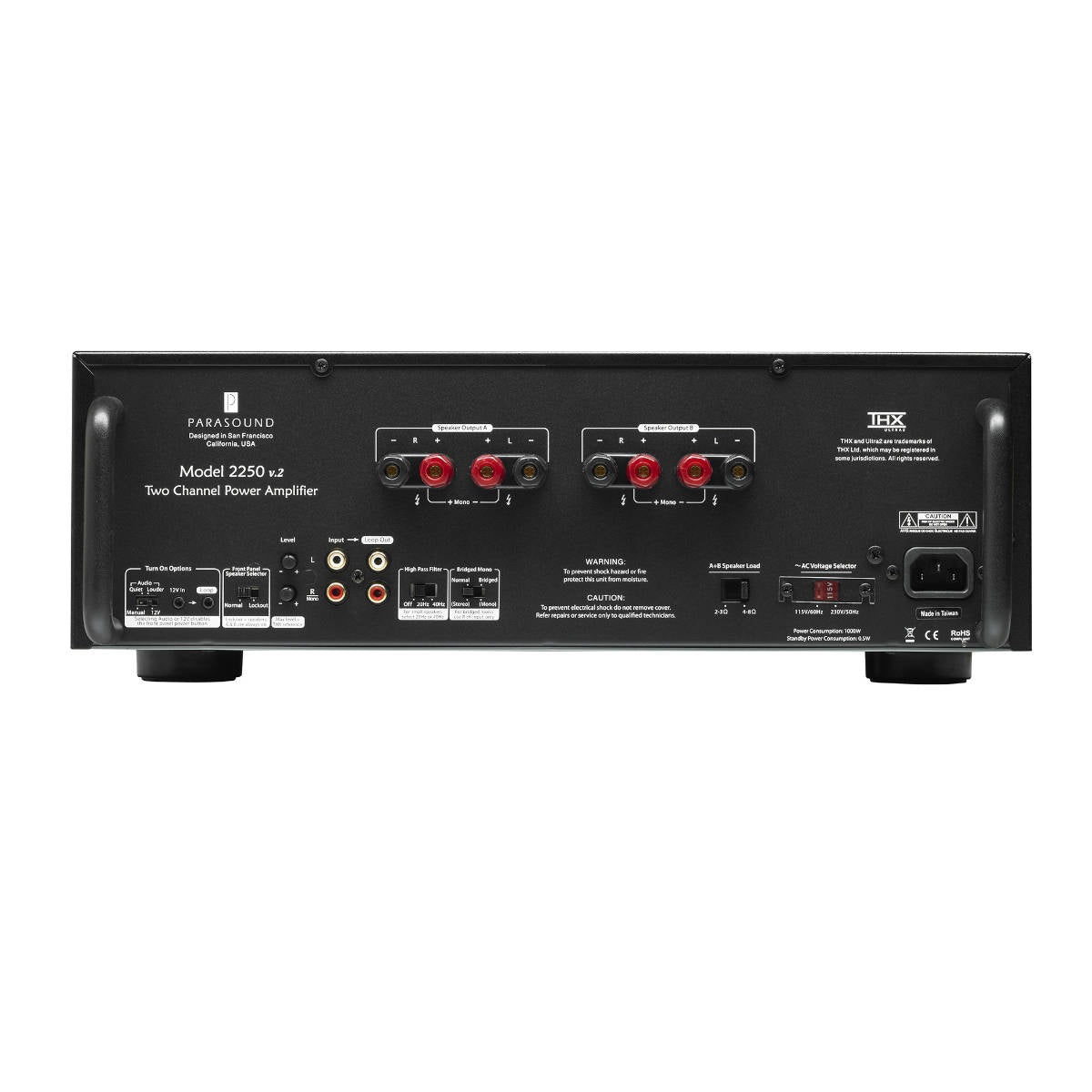

This is the new v.2 version of the Model 2250 with a wide array of powerful features for enhanced performance and unmatched convenience. First is a new A/B speaker button lockout switch on the rear panel. When this switch is set to Lockout, the front panel A and B buttons are disabled and speakers A and B will always be on. This can be especially handy for a professional audio installer who never intends for the client to use the front panel buttons. The new ultra-sensitive two-position audio trigger enabled Parasound to cut out the audio trigger sensitivity knob. A 'Quieter' setting will automatically turn on the amp at a very low volume. If this isn't sensitive enough for your system needs, you can also use the 'Louder' setting. The 12-volt trigger jacks change from 2.5mm to 3.5mm. The standard for 12-volt triggers in the audio world has become the 3.5mm size and all new Parasound products will change to leverage this larger size.
One more alteration to the rear panel is that the ground lift switch has been eliminated. Changes to the internal grounding of the amps make this switch redundant. To conserve energy and meet Energy Star and EU power consumption requirement NewClassic amps only require 0.5 watts in standby. Updated front and rear cosmetics give the v.2 amps a contemporary look. The front panel has been updated with rounded corners, a new display lens, and updated silk screening. The rear panel has updated silk screening facilitating ease to read, understand and assimilate the key functions.
There's also a significant increase in power specification. The original versions of the NewClassic amps were underrated. With the v.2 amps, Parasound has brought a radical change in the specification to match the actual capability of each amp. There is an average rating increase of 10-15%. Both version 1 and v.2 amps have the same power and there are no alterations in the audio circuits.
Where to buy?
Buy Parasound NewClassic 2250 v.2 Two Channel Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound NewClassic 2250 v.2 Two Channel Power Amplifier:
| Brand & Model # | Parasound NewClassic 2250v.2 |
| All Channels Driven |
275 watts x 2, 8Ω 400 watts x 2, 4Ω 400 watts x 2, 2Ω (Load switch set to 2-3Ω) |
| Bridged Mono |
750 watts x 1, 8Ω 750 watts x 1, 4Ω (Load switch set to 2-3Ω) |
| Current Capacity | 45 amps peak per channel |
| Frequency Response |
20 Hz - 50 kHz, +0/-3 dB, 1 watt Dynamic Headroom - 1.6 dB |
| Total Harmonic Distortion (THD) |
0.20% at full rated output 0.015% at average listening levels |
| IM Distortion | 0.05 % |
| Transient IM Distortion | Not measurable |
| S/N Ratio |
114 dB at rated output, IHF A-weighted 106 dB at rated output, unweighted 93 dB at 2.828 V output, IHF A-weighted 84 dB at 2.828 V output, unweighted |
| Input Impedance | 33 k Ω |
| Input Sensitivity | 1 V in for 28.28 V out, THX standard |
| Inter-Channel Crosstalk | 85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz Damping Factor - Over 150 at 20Hz 12V Trigger Turn On - DC 9 – 12V, 15 mA |
| Audio Turn On | Quieter: 1 mV Louder: 6 mV |
| AC Power Requirement |
110 - 120 V / 220 -240 V, 50 - 60 Hz 0.5 watts standby 35 watts Idle (no audio) 1000 watts full output |
| Dimensions |
17.25" Wide 18.5" Deep, with cables connected 6" High with feet, 5.25" panel only (3U) (437 x 470 x 153mm, 133mm panel only) |
| Net Weight |
43 lbs (19.5 kg) |
