About
Ooberpad announces the availability of the feature-packed MSB Technology The Reference Headphone Amplifier. Precision-designed for dynamic headphones, the Reference Headphone Amp is a comprehensively balanced amplifier. Boasting 139dB of dynamic range, the amp works in tandem with the Reference and Select DAC, facilitating the music to enliven in vibrant and unforgettable new ways. The unmatched charisma of ultra HiFi sound brought to dynamic headphones!
Warranty
1-year manufacturer's warranty
Key Features:
- The Dynamic Headphone Amplifier
- CNC billet chassis
- Analog bypass
- 4-Pin XLR
- Anodized finish
Benefits of MSB Technology The Reference Headphone Amplifier:
Dynamically Driven
Designed for dynamic headphones, the Reference Headphone Amp is a fully balanced amplifier. Boasting 139dB of dynamic range, the amp works in tandem with the Reference and Select DAC, allowing the music to come to life in vibrant and unforgettable new ways.

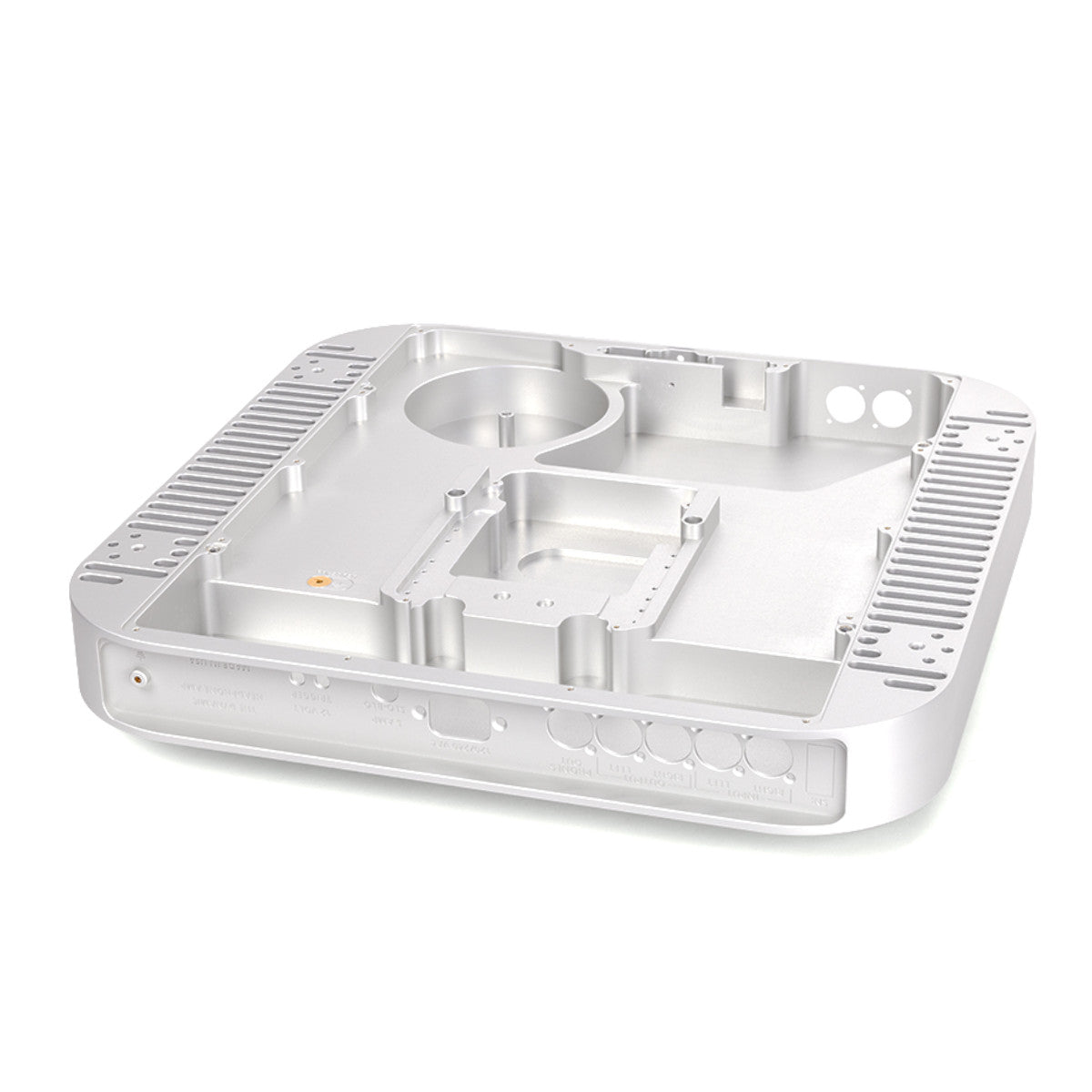

CNC billet chassis
Starting with a 65lb plate of raw aluminum, material is machined in our own in-house CNC shop. After more than four hours of machining, 60% of the aluminum is removed, resulting in a significantly lighter, more contoured product with the best anodized finishes on the market.
4-Pin XLR
Each amplifier is equipped with three 4-pin XLR outputs, designed for a shared listening experience.

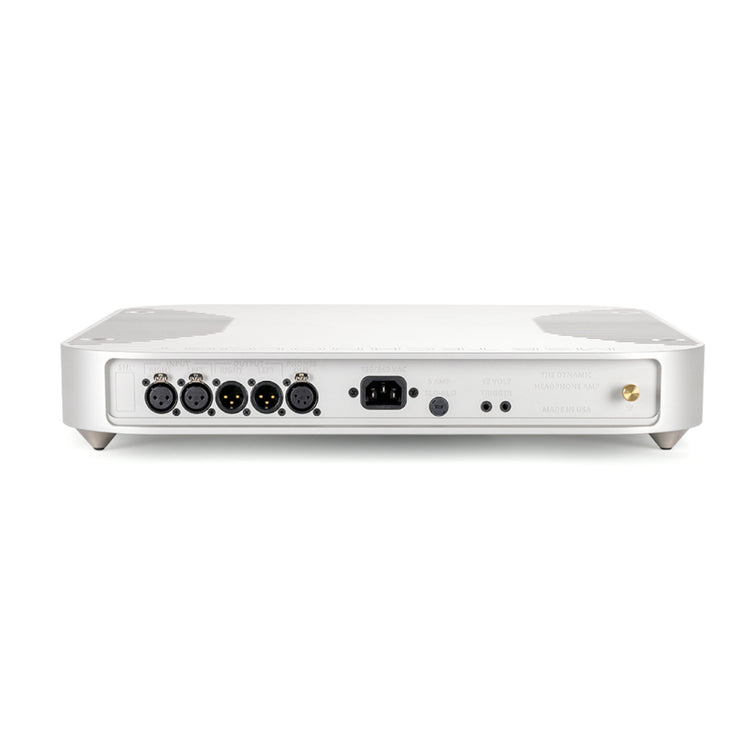

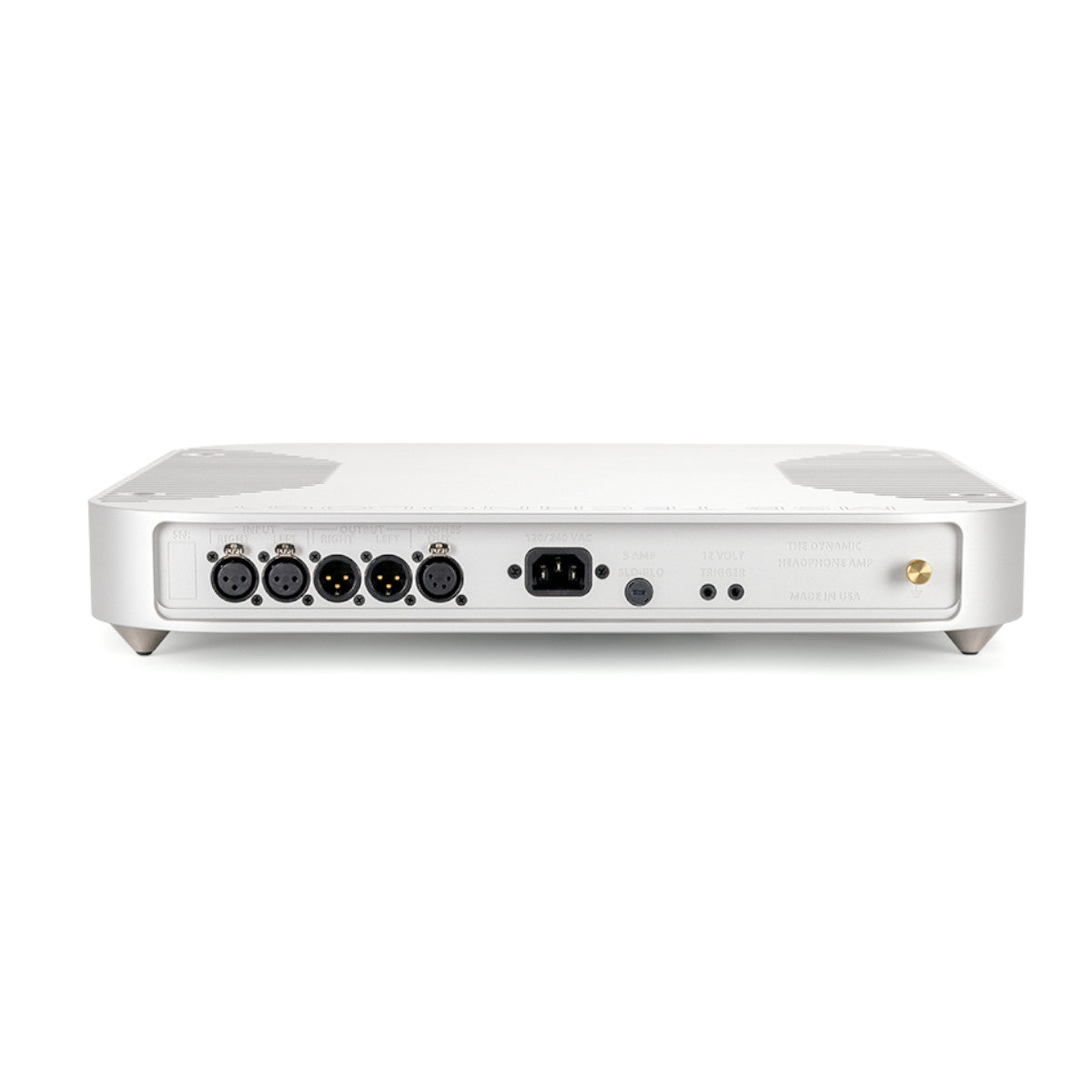

Fully equipped
A rear-facing headphone jack allows for a cleaner system aesthetic—there aren’t any dangling cables interfering with a cleanly assembled system. The noise floor is reduced with an isolated transformer and grounding scheme. 12 Volt triggers allow remote control over the system power.
Analog bypass
If you’re sharing the headphones with a two-channel system, use our internal bypass we’ve installed directly into the amp. Simply turn off the unit for the signal to be sent to your other system.
Anodized finishes
Elegant yet commanding, our finishes are available in a matte silver or matte black anodize. Our products include our in-house designed viton feet, but any audiophile M6X1 foot can be installed to personalize your system.
The 12V Trigger Adapter
The 12V trigger adapter provides a multitude of ways for connecting your MSB product with other 12V trigger systems.
Where to buy?
Buy MSB Technology The Reference Headphone Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of MSB Technology The Reference Headphone Amplifier:
Brand & Model # | The Reference Headphone Amp |
Supported Formats | Analog Only. The Reference Headphone Amp can ONLY be used with MSB DACs. |
XLR Analog Inputs | Optimized for 75Ω or 150Ω Balanced Source |
XLR Analog Outputs | Direct connection to input when enabled or unit powered off. When listening to headphones, output is muted with 75Ω output impedance |
Headphone Output Impedance | 0.45Ω |
Dynamic Range 20Hz-20kHz (Max Power at 45Ω) |
>139dB >141dBA |
Frequency Response | 5Hz-20kHz ±0.016dB |
Common Mode Rejection Ratio | > 95dB CMRR @ 60Hz > 95dB CMRR @ 1kHz > 80dB CMRR @ 20kHz |
Crosstalk | <-130dB Crosstalk @ 1kHz <-110dB Crosstalk @ 20kHz |
SMPTE IMD 0dBu | 0.0019% @ 45Ω |
% THD+N 1kHz 0dBu | 0.00065% @ 45Ω |
Max Power @ 1% THD+N | 16Ω @ 4.25Vrms (1.12W) |
32Ω @ 8.6Vrms (2.3W) | |
45Ω @ 15.5Vrms (5.3W) | |
150Ω @ 15.6Vrms (1.62W) | |
Noise Floor (150Ω Input Impedance) |
0.00168mVrms 20Hz-20kHz |
Headphone Output Connectors | 1x Rear 4 Pin XLR 2x Front 4 Pin XLR |
Display | Power LED |
Controls | IR Remote (Configurable) Power Button (Configurable) 2x MSB 12V Trigger |
Power Consumption | 64 Watts Less than 2W standby |
Topology | |
Input/Gain Stage | - Class-A - Double balanced - Impedance matched - DC coupled - Fully discrete |
Output Stage | - Class-A - Balanced - Current gain only |
Chassis Dimensions | |
Width: | 17.5 in (444 mm) |
Depth: | 17.5 in (444 mm) |
Chassis Height (Without Feet): | 2.2 in (56 mm) |
Stack height: | 2.85 in (92 mm) |
Weight: | 34 lbs (15.5 kg) |
Product Feet: | M6X1 Thread |
Included Accessories | Product manual Ground cable IEC power cord |
Ooberpad announces the availability of the feature-packed MSB Technology The Reference Headphone Amplifier. Precision-designed for dynamic headphones, the Reference Headphone Amp is a comprehensively balanced amplifier. Boasting 139dB of dynamic range, the amp works in tandem with the Reference and Select DAC, facilitating the music to enliven in vibrant and unforgettable new ways. The unmatched charisma of ultra HiFi sound brought to dynamic headphones!
Warranty
1-year manufacturer's warranty
Key Features:
- The Dynamic Headphone Amplifier
- CNC billet chassis
- Analog bypass
- 4-Pin XLR
- Anodized finish
Benefits of MSB Technology The Reference Headphone Amplifier:
Dynamically Driven
Designed for dynamic headphones, the Reference Headphone Amp is a fully balanced amplifier. Boasting 139dB of dynamic range, the amp works in tandem with the Reference and Select DAC, allowing the music to come to life in vibrant and unforgettable new ways.
CNC billet chassis
Starting with a 65lb plate of raw aluminum, material is machined in our own in-house CNC shop. After more than four hours of machining, 60% of the aluminum is removed, resulting in a significantly lighter, more contoured product with the best anodized finishes on the market.
4-Pin XLR
Each amplifier is equipped with three 4-pin XLR outputs, designed for a shared listening experience.
Fully equipped
A rear-facing headphone jack allows for a cleaner system aesthetic—there aren’t any dangling cables interfering with a cleanly assembled system. The noise floor is reduced with an isolated transformer and grounding scheme. 12 Volt triggers allow remote control over the system power.
Analog bypass
If you’re sharing the headphones with a two-channel system, use our internal bypass we’ve installed directly into the amp. Simply turn off the unit for the signal to be sent to your other system.
Anodized finishes
Elegant yet commanding, our finishes are available in a matte silver or matte black anodize. Our products include our in-house designed viton feet, but any audiophile M6X1 foot can be installed to personalize your system.
The 12V Trigger Adapter
The 12V trigger adapter provides a multitude of ways for connecting your MSB product with other 12V trigger systems.
Where to buy?
Buy MSB Technology The Reference Headphone Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of MSB Technology The Reference Headphone Amplifier:
Brand & Model # | The Reference Headphone Amp |
Supported Formats | Analog Only. The Reference Headphone Amp can ONLY be used with MSB DACs. |
XLR Analog Inputs | Optimized for 75Ω or 150Ω Balanced Source |
XLR Analog Outputs | Direct connection to input when enabled or unit powered off. When listening to headphones, output is muted with 75Ω output impedance |
Headphone Output Impedance | 0.45Ω |
Dynamic Range 20Hz-20kHz (Max Power at 45Ω) |
>139dB >141dBA |
Frequency Response | 5Hz-20kHz ±0.016dB |
Common Mode Rejection Ratio | > 95dB CMRR @ 60Hz > 95dB CMRR @ 1kHz > 80dB CMRR @ 20kHz |
Crosstalk | <-130dB Crosstalk @ 1kHz <-110dB Crosstalk @ 20kHz |
SMPTE IMD 0dBu | 0.0019% @ 45Ω |
% THD+N 1kHz 0dBu | 0.00065% @ 45Ω |
Max Power @ 1% THD+N | 16Ω @ 4.25Vrms (1.12W) |
32Ω @ 8.6Vrms (2.3W) | |
45Ω @ 15.5Vrms (5.3W) | |
150Ω @ 15.6Vrms (1.62W) | |
Noise Floor (150Ω Input Impedance) |
0.00168mVrms 20Hz-20kHz |
Headphone Output Connectors | 1x Rear 4 Pin XLR 2x Front 4 Pin XLR |
Display | Power LED |
Controls | IR Remote (Configurable) Power Button (Configurable) 2x MSB 12V Trigger |
Power Consumption | 64 Watts Less than 2W standby |
Topology | |
Input/Gain Stage | - Class-A - Double balanced - Impedance matched - DC coupled - Fully discrete |
Output Stage | - Class-A - Balanced - Current gain only |
Chassis Dimensions | |
Width: | 17.5 in (444 mm) |
Depth: | 17.5 in (444 mm) |
Chassis Height (Without Feet): | 2.2 in (56 mm) |
Stack height: | 2.85 in (92 mm) |
Weight: | 34 lbs (15.5 kg) |
Product Feet: | M6X1 Thread |
Included Accessories | Product manual Ground cable IEC power cord |
MSB Technology The Reference Headphone Amplifier
- Regular price
- ₹ 1,650,000.00
- Sale price
- ₹ 1,650,000.00
- Regular price
-
Country of Origin: Usa
