About

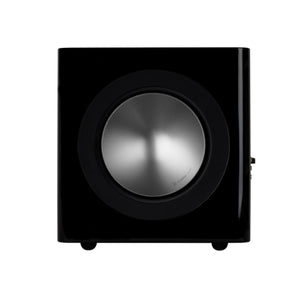

Ooberpad announces the availability of the Radius 380 subwoofer from Monitor Audio. The Radius 380’s twin side-firing 8" C-CAM drivers - one active and one passive ABR - work in synergy with a dynamic 140 W cool-running Class D amplifier (double the power of its predecessor). The drivers have no grilles but are colour-coded to blend well with cabinet finish. A 12 V trigger syncs the 380 with other AV components when the system is activated.
Warranty
1-year manufacturer's warranty
Key Features:
- 18 mm MDF cabinet construction with internal bracing
- Cool-running 140 W Class D amplifier with switch mode power supply (SMPSU)
- Twin side-firing 8" C-CAM drivers - one active and one passive ABR
- Low pass filter switch – for LFE or Stereo input selection
- Power switch with ON – Auto- Off/ trigger settings
- Stereo/ LFE RCA inputs
- 3 x Pre-set EQ settings – Music/Movie/Impact
Benefits of Monitor Audio Radius 380 Subwoofer:
High Tech Appeal Even with a Modestly Sized Cabinet
The 8" long throw active C-CAM bass gives the Radius 380 a high tech appeal. The seamless, aluminium construction is light and rigid, giving a rapid response to changes in sound. Helping to reinforce the bass still further, a second ABR (Auxiliary Bass Radiator) at the opposite side of the sub uses energy within the cabinet to strengthen the bass. The result is bass to make the room shake from a modestly sized cabinet. With around 200 watts of clean power, it has little trouble in keeping the bass cone under tight control.
Buy Monitor Audio Radius 380 Subwoofer online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Monitor Audio Radius 380 Subwoofer:
| Brand & Model # |
Monitor Audio Radius 380 |
| System Format | Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet |
| Lower Frequency Limit |
30 Hz (- 6 dB) |
| Upper Frequency Limit | Variable 40 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 140 W @ 1% THD+N |
| Amplifier Classification | Class D amplifier with Switch mode power supply (SMPSU) |
| Bass EQ Profiles | Music / Movie / Impact |
| Phase Control | 0 & 180 degrees |
| Auto Sensing | Line Level >3.5mV |
| Input Level Requirements | Standby after approximately 15 minutes if no signal sensed |
| Drive Unit Complement | 1 x 8” (200 mm) C-CAM long throw driver 1 x 8” (200 mm) ABR |
| Input Impedance | > 20 ohms |
| Mains Input Voltage | AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset) |
|
Dimensions (Including Amp and Feet (H x W x D)) |
308 x 290 x 305 mm (121/8 x 117/16 x 12") |
| Connection | Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack) |
| Trigger Input |
5 - 12v via 3.5 mm mono mini-jack socket |
|
Power Consumption |
200 W / 0.5 W in Standby (ErP approved) |
| Weight (unpacked) |
10.16 kg (22 lb 6 oz) |
