About

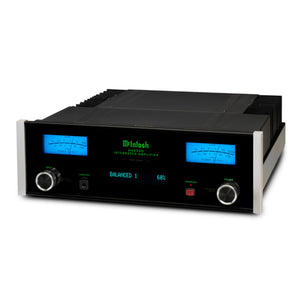

The MA5300 Integrated Amplifier is testimonial to the fact that big sound can come in small packages. It is McIntosh's compact solid state integrated amplifier in terms of both power output and physical size, making it the perfect choice for space-challenged places or for someone just starting to assemble a home audio system. It’s a direct coupled amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. New dual scale blue Watt meters renders an accurate readout of power output for both 4 and 8 Ohm impedances.
The MA5300’s complement of 12 inputs includes 6 analog inputs (4 unbalanced, 1 balanced and 1 Moving Magnet input for turntables) and 6 digital inputs (2 each coaxial and optical, 1 USB and 1 proprietary MCT for use with our MCT series of SACD/CD Transports). All digital inputs are housed in our DA1 Digital Audio Module which can be replaced by future modules as new digital audio technologies are built. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode and supports up to DSD256 and DXD 384kHz for high resolution audio playback. All inputs can be given user-friendly names to simplify system control and configuration.
Warranty
3-year manufacturer's warrantyKey Features:
- 100 Watts into 8 Ohms
- 160 Watts into 4 Ohms
- Comes with DA1 Digital Audio Module installed
- Optional dealer installed upgrade to DA2 Digital Audio Module available
Benefits of McIntosh MA5300 2-Channel Integrated Amplifier:
McIntosh's Monogrammed Heatsinks™
The MA5300 includes McIntosh's Monogrammed Heatsinks™ which are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA5300’s complete sonic capabilities from the moment you turn it on. Powerful new control microprocessors have been used to improve overall system operation, along with some of the latest audio-grade circuit components to deliver the best possible sound. Bass and treble tone controls have been added to help you further fine tune your music to your personal preferences.
Roon tested along with other McIntosh technologies
The MA5300 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities. Rounding out the MA5300 are time tested McIntosh technologies including Power Guard®, Sentry Monitor™, Home Theater PassThru, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts. The classic McIntosh aesthetic of blue Watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo complete the MA5300.
Buy the McIntosh MA5300 2-Channel Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of McIntosh MA5300 2-Channel Integrated Amplifier:
| Brand & Model # | McIntosh MA5300 |
| Power Output per Channel |
100 Watts into 8 Ohms 160 Watts into 4 Ohms |
| Number of Channels |
2 |
| Speaker Impedance |
4 or 8 Ohms |
| Rated Power Band |
20Hz to 20kHz |
| Total Harmonic Distortion | 0.005% |
| Dynamic Headroom |
1.8dB |
| Frequency Response | Frequency Response +0,-0.5dB 20Hz to 20kHz Frequency Response, +0, -3dB 10Hz to 100kHz |
| Sensitivity | Sensitivity Phono (Moving Coil) N/A Sensitivity Phono (Moving Magnet) 2.5mV Sensitivity High Level (Balanced / Unbalanced) 0.5V/0.25V Sensitivity (Power Amp input) 1V |
| Signal to Noise Ratio | Signal To Noise Ratio (Moving Coil) N/A Signal To Noise Ratio (Moving Magnet) 82dB Signal To Noise Ratio (High Level) 95dB Signal To Noise Ratio (Power Amp input) 110dB |
| Input Impedance | 20K/20K |
| Damping Factor | 8 Ohms: >200 4 Ohms: >100 |
| Maximum Output (Balanced / Unbalanced) | 8V Unbalanced |
| Connectivity |
|
| Digital Audio Specification |
|
| Control |
|
| General Specifications |
|
| Weight & Dimensions |
|
The MA5300 Integrated Amplifier is testimonial to the fact that big sound can come in small packages. It is McIntosh's compact solid state integrated amplifier in terms of both power output and physical size, making it the perfect choice for space-challenged places or for someone just starting to assemble a home audio system. It’s a direct coupled amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. New dual scale blue Watt meters renders an accurate readout of power output for both 4 and 8 Ohm impedances.
The MA5300’s complement of 12 inputs includes 6 analog inputs (4 unbalanced, 1 balanced and 1 Moving Magnet input for turntables) and 6 digital inputs (2 each coaxial and optical, 1 USB and 1 proprietary MCT for use with our MCT series of SACD/CD Transports). All digital inputs are housed in our DA1 Digital Audio Module which can be replaced by future modules as new digital audio technologies are built. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode and supports up to DSD256 and DXD 384kHz for high resolution audio playback. All inputs can be given user-friendly names to simplify system control and configuration.
Warranty
3-year manufacturer's warrantyKey Features:
- 100 Watts into 8 Ohms
- 160 Watts into 4 Ohms
- Comes with DA1 Digital Audio Module installed
- Optional dealer installed upgrade to DA2 Digital Audio Module available
Benefits of McIntosh MA5300 2-Channel Integrated Amplifier:
McIntosh's Monogrammed Heatsinks™
The MA5300 includes McIntosh's Monogrammed Heatsinks™ which are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA5300’s complete sonic capabilities from the moment you turn it on. Powerful new control microprocessors have been used to improve overall system operation, along with some of the latest audio-grade circuit components to deliver the best possible sound. Bass and treble tone controls have been added to help you further fine tune your music to your personal preferences.
Roon tested along with other McIntosh technologies
The MA5300 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities. Rounding out the MA5300 are time tested McIntosh technologies including Power Guard®, Sentry Monitor™, Home Theater PassThru, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts. The classic McIntosh aesthetic of blue Watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo complete the MA5300.
Buy the McIntosh MA5300 2-Channel Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of McIntosh MA5300 2-Channel Integrated Amplifier:
| Brand & Model # | McIntosh MA5300 |
| Power Output per Channel |
100 Watts into 8 Ohms 160 Watts into 4 Ohms |
| Number of Channels |
2 |
| Speaker Impedance |
4 or 8 Ohms |
| Rated Power Band |
20Hz to 20kHz |
| Total Harmonic Distortion | 0.005% |
| Dynamic Headroom |
1.8dB |
| Frequency Response | Frequency Response +0,-0.5dB 20Hz to 20kHz Frequency Response, +0, -3dB 10Hz to 100kHz |
| Sensitivity | Sensitivity Phono (Moving Coil) N/A Sensitivity Phono (Moving Magnet) 2.5mV Sensitivity High Level (Balanced / Unbalanced) 0.5V/0.25V Sensitivity (Power Amp input) 1V |
| Signal to Noise Ratio | Signal To Noise Ratio (Moving Coil) N/A Signal To Noise Ratio (Moving Magnet) 82dB Signal To Noise Ratio (High Level) 95dB Signal To Noise Ratio (Power Amp input) 110dB |
| Input Impedance | 20K/20K |
| Damping Factor | 8 Ohms: >200 4 Ohms: >100 |
| Maximum Output (Balanced / Unbalanced) | 8V Unbalanced |
| Connectivity |
|
| Digital Audio Specification |
|
| Control |
|
| General Specifications |
|
| Weight & Dimensions |
|
McIntosh MA5300 2-Channel Integrated Amplifier
Country of Origin: Usa
