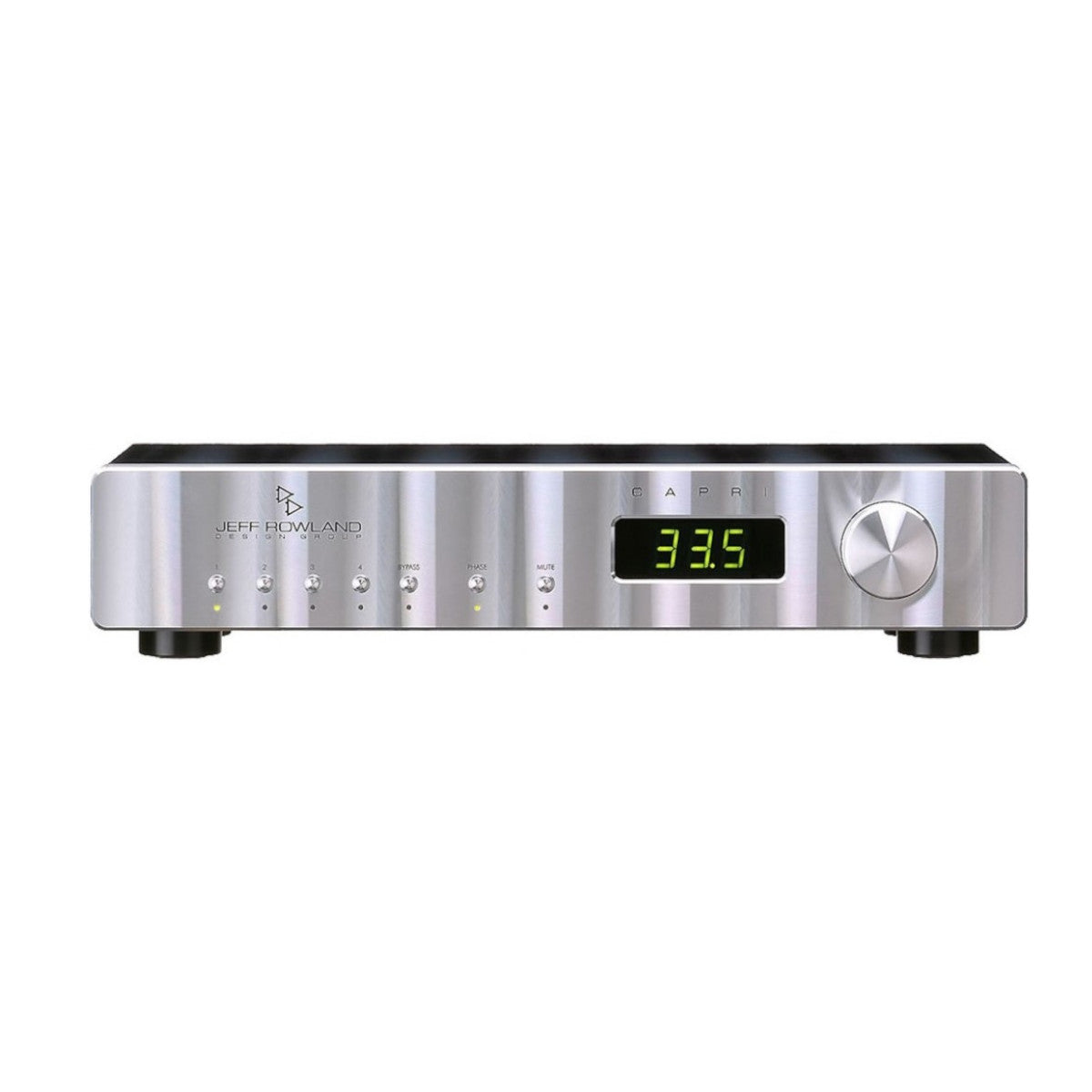

The Capri S2 features an impressive complement of standard input/output interfaces; greatly enhanced flexibility through its optional DAC card or phono option; and the Rowland trademark prismatic platinum faceplate beautifully integrated into a non-resonant chassis milled from a solid block of aluminum.
With an output impedance of only 80 Ohms balanced and 40 Ohms single ended, Capri S2 drives any amplifier with confidence. Whether serving a single-ended triode amplifier in a vinyl rig, or controlling a quartet of solid-state Rowland M525 monoblocks with a 192 kHz digital source, or at the nexus of a home theater setup, the Capri S2 preamplifier delivers the trademark Rowland musicality, resolution, and consistent authority.
Warranty
1-year manufacturer's warranty
Key Features:
- Compact Elegance
- Universal power supply
- Thin Film Resistors
- Four Layer Circuit Board
- I/O flexibility
Benefits of Jeff Rowland Capri S2 Stereo Preamplifier:
Compact elegance
Balanced preamplifier design housed inside a low profile, compact, ultra-low resonance, structurally rigid chassis that is precision-machined from solid blocks of aircraft grade 6061-T6 aluminum that is completely sealed for trouble-free operation and high RF and EMI isolation. Features an elegant front panel precision-machined and sculpted with a diamond tipped cutting tool.
Universal power supply
Low noise, high-current, dual regulated switch- mode auto sensing and auto ranging power supply provides Capri with optimum performance at any world-wide mains operating voltage.
Thin Film Resistors
All resistors are low noise, 0.1% thin-film type for extremely low thermal noise which complement the low-noise characteristics of the active circuitry.
Four Layer Circuit Board
All circuitry is populated on one side of a 4 layer circuit board to allow for continuous, unbroken, low impedance ground and power supply distribution planes. Care was taken to minimize signal path lengths and components sizes.
Input transformer-Coupling and Isolation
Transformer coupled input circuitry provides universal component compatibility and virtually eliminate ground loop noise and RFI/EMI. Transformer coupling ensures identical preamplifier overall gain when using unbalanced input adapters. Other benefits include ground noise isolation and excellent common mode noise rejection (CMRR) from all sources.
Remote control
Six-function remote control transmitter display dim, adjusts volume, input selection, mute, phase, and channel balance.

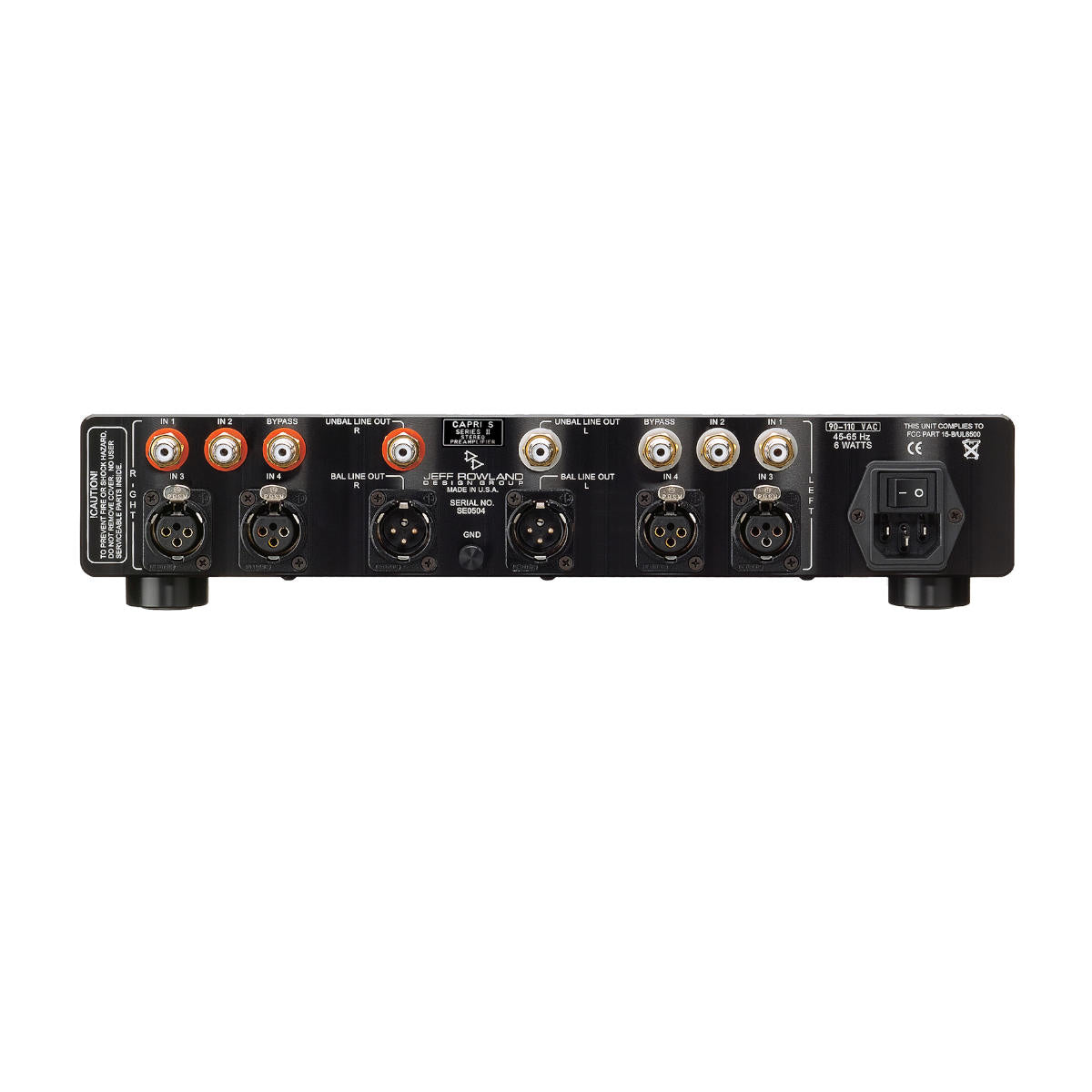

I/O flexibility
Dual low impedance line-level outputs (80 Ohms balanced, 40 Ohms unbalanced), 48 Ohms balanced and unbalanced inputs, and preamp bypass inputs allow unprecedented compatibility with audio and A/V components, while optional high quality phono cards are available for compatibility with vinyl sources.
Precision volume adjustments
Dual rate volume control allows precision level adjustments over nearly a 100 dB range. The volume control incorporates a permanently noiseless optical encoder that always maintain its tactile feel, accuracy, and channel balance at all settings. The optical encoder mounted behind the volume knob commands the attenuation level of a monolithic resistor attenuator over a 99.5 dB range in 0.5 dB increments.
Optional Phono Card
Plug-in phono cards (installed internally) converts Line Input 1 to high performance phono input. Three gain and loading options can accommodate moving magnet (MM), moving coil (MC), and high output moving coil cartridge types.
Optional DAC Card
Plug-in DAC card (installed internally) converts Line Input 1 to high performance DAC input. Accepts all SPDIF digital signal sources from 44.1 to 192 kHz sampling rates and adjusts accordingly.
Home Theater Bypass Adjustment
The Home Theatre BYPASS RCA inputs can be changed to an additional set of standard inputs by placement of an internal jumper inside the unit.
High-quality connectors
All signal connectors are rhodium plated, copper jacks (RCA) and Neutrix silver plated contact (XLR), soldered directly to the circuit board for direct connection to the signal circuitry.
Green technology
Modest power consumption of mere 6 Watts permits constant power-up operation to eliminate warm-up time and maximize musical performance, and allows Capri to operate enclosed into an entertainment unit.
Display Off (5 Sec) with IEC
An internal jumper will place the display in an automatic OFF condition after 5 seconds from any operational command and illuminates again for 5 seconds after additional commands are initiated. 15 Amp female IEC AC power connector.
Where to buy?
Buy Jeff Rowland Capri S2 Stereo Preamplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Jeff Rowland Capri S2 Stereo Preamplifier:
| Brand & Model # |
Jeff Rowland Capri S2 |
Overall Gain
|
14 dB |
| Gain Range |
99.5 dB, 199 Equal Increments |
Frequency Response
|
10 Hz – 350 kHz, -3 dB
|
| DAC Card (optional) |
Internal DAC card accepts all SPDIF digital signal sources from 44.1 to 192 kHz |
| Phono Card (optional) |
Adjustable for simple load and gain adjustments for MM, high-output MC and MC cartridges |
| Inputs |
2 x Pair Balanced XLR, 1 x Pair Unbalanced (RCA) Unity Gain (Bypass), 2 x Pair Unbalanced RCA
|
| Outputs |
1 x Pair Balanced Line Level, 1 x Pair Unbalanced Line Level
|
| Weight |
9.5 lbs / 4.26 kg |
| Dimensions |
2.6”(H) x 13.7” (W) x 6.2” (D) / 6.7 cm (H)x 35 cm (W) x 15.7 cm (D)
|
