About
The Dali Phantom K-60 LP (Low Profile) is an ultra-shallow in-ceiling speaker with a mounting depth of only 36.5mm, which will fit in installations where regular in-ceiling speakers will not. Everything about the K-60 LP has been designed to deliver the same Hi-Fi quality sound that you would expect from any DALI speaker in an ultra-shallow form factor. From the innovative driver and crossover design to the rigid ABS baffle and convenient dogleg mounting system, prepare to be impressed by the K-60 LP.
Warranty
2-year manufacturer's warranty
Dali Phantom K-60 LP Key Features
- Superior sound quality - Based on a market demand, we set out to make an ultra-shallow in-ceiling speaker with superior sound quality - and we succeeded
- Low profile mounting depth - With a total mounting depth of only 36.5mm, the K-60 LP is amongst the most shallow in-ceiling speakers available

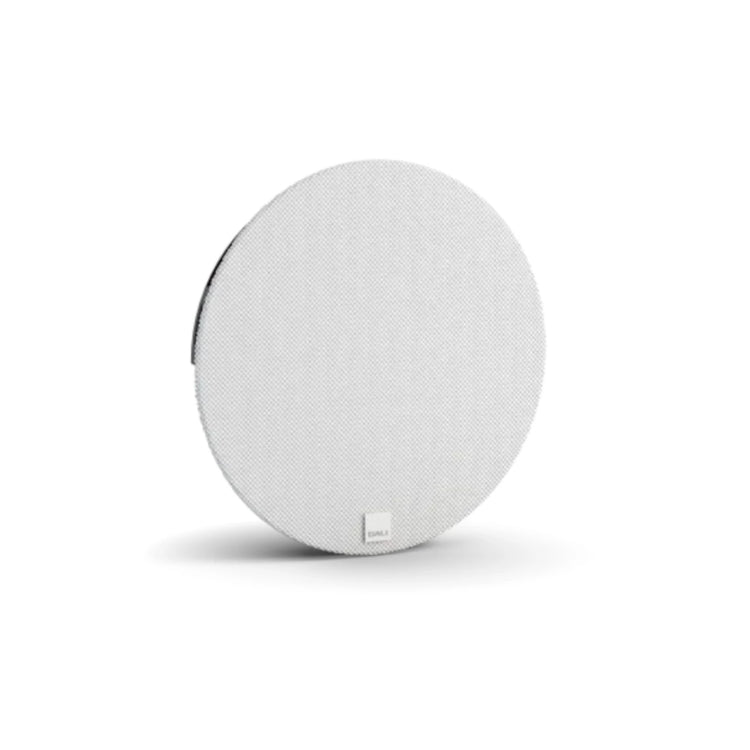

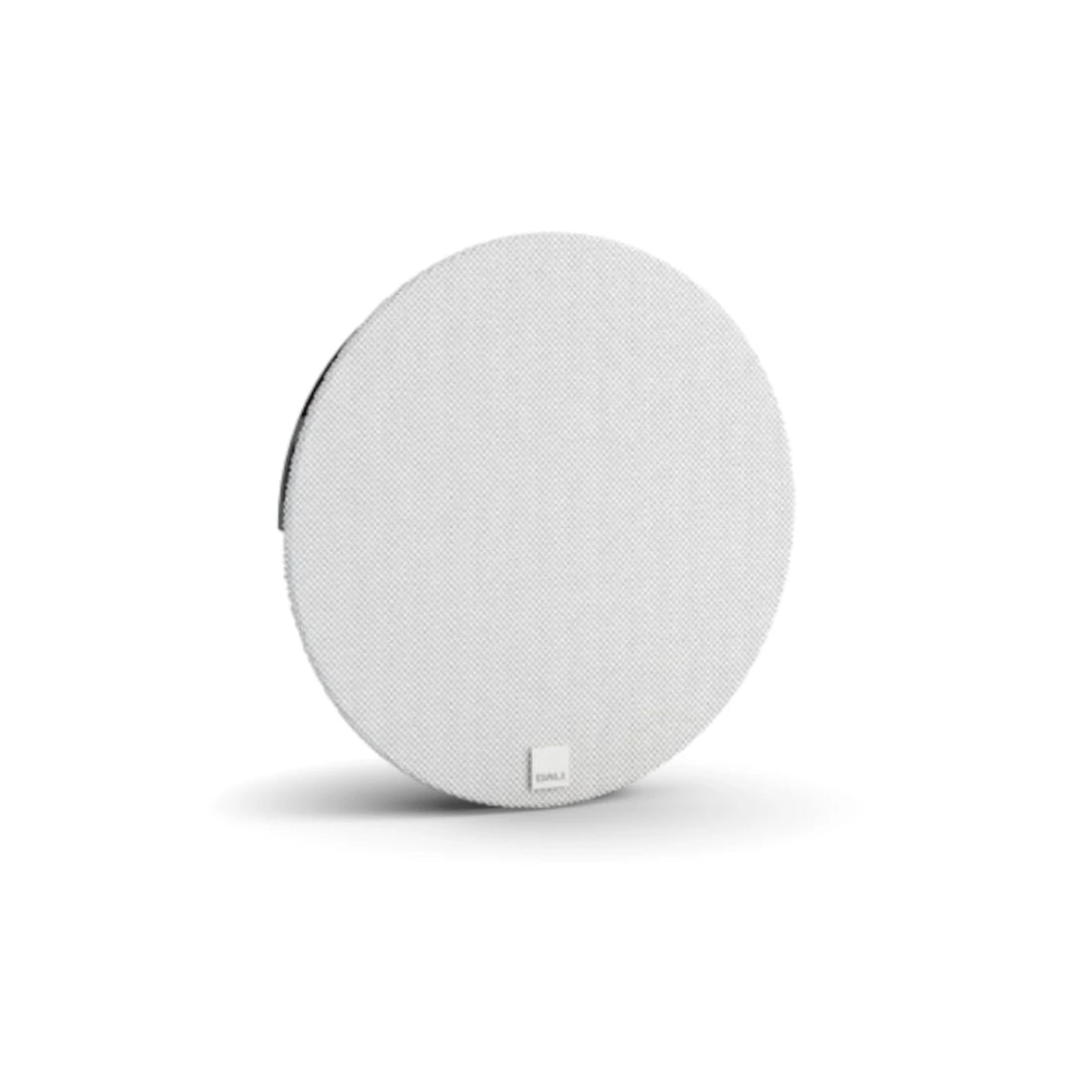

- Discrete Design - The K series include a new true-white front grille which is slimmer and more discrete than our previous designs
-
Easy installation - The dogleg mounting system makes the install process an easy one-step action. Simply insert the K-60 LP and mount it from the front
Benefits of Dali Phantom K-60 LP In-ceiling Speaker
In-ceiling excellence
Everything about the K-60 LP has been designed to deliver the same Hi-Fi quality sound that you would expect from any DALI speaker in an ultra-shallow form factor. From the innovative driver and crossover design to the rigid ABS baffle and convenient dogleg mounting system, prepare to be impressed by the K-60 LP.

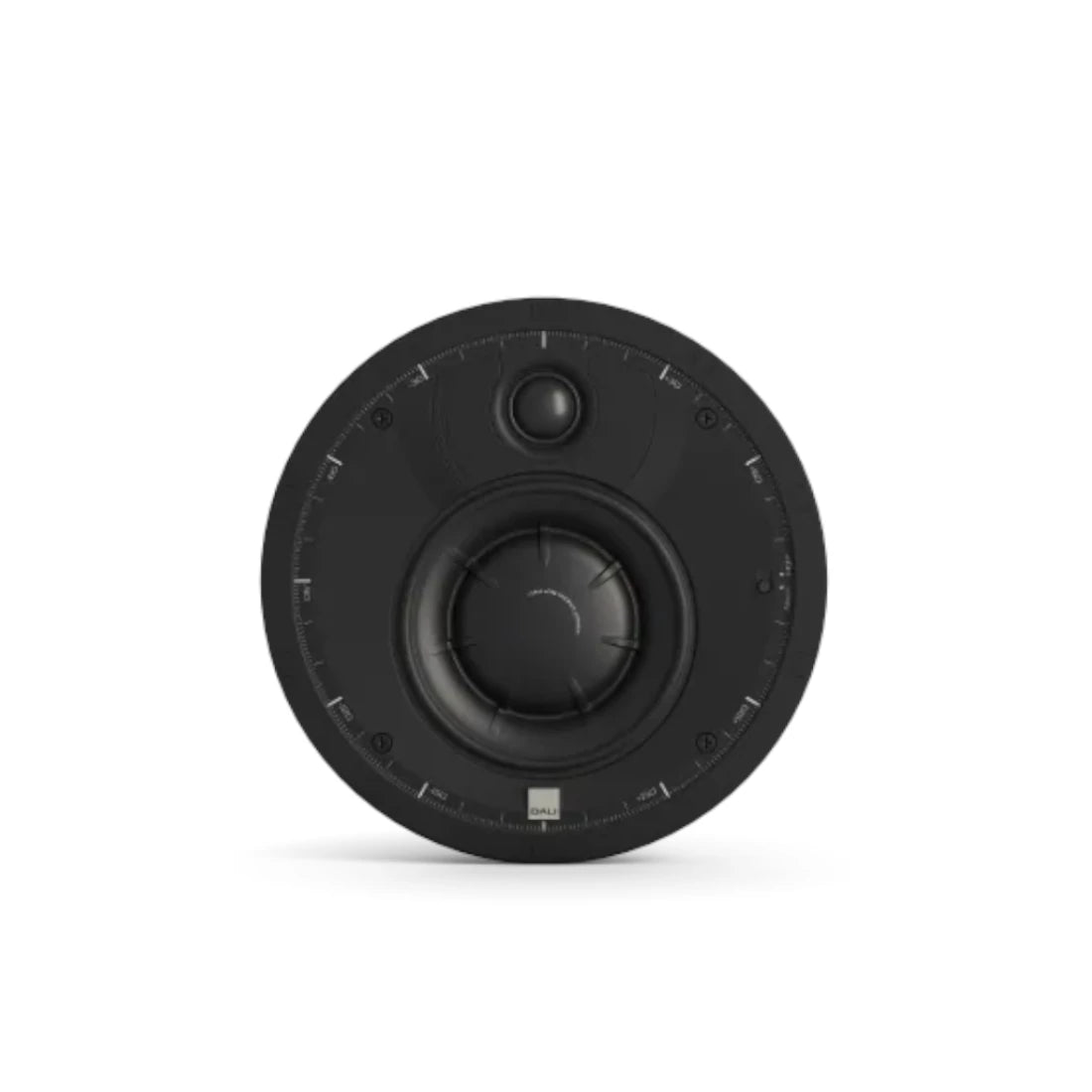

Innovative 6" woofer
Creating an ultra-shallow speaker with Hi-Fi quality sound required radical thinking. By placing the voice-coil and magnet system inside the cone instead of underneath and attaching the spider to the membrane instead of the voice-coil-former, the K-60 LP's ultra-flat aluminium cone bass driver unites long-throw excursion with an ultra-shallow profile for unrivalled bass response.
Featuring a new 25 mm soft dome tweeter
Using technology from Dali's traditional cabinet speakers, the K-60 LP's lightweight 25 mm driver with a powerful neodymium magnet delivers an outstanding high-frequency response that's as detailed and coherent as you'll expect from a DALI speaker.
Tailoring the sound to any room
The directional nature of high frequencies can impact the listening experience at extreme off-axis angles. The K-60 LP's HF switch lets you increase the high frequencies to deliver an even performance in any situation, while the compass markings on the baffle let you align your speakers with ultimate accuracy.
No Backbox required

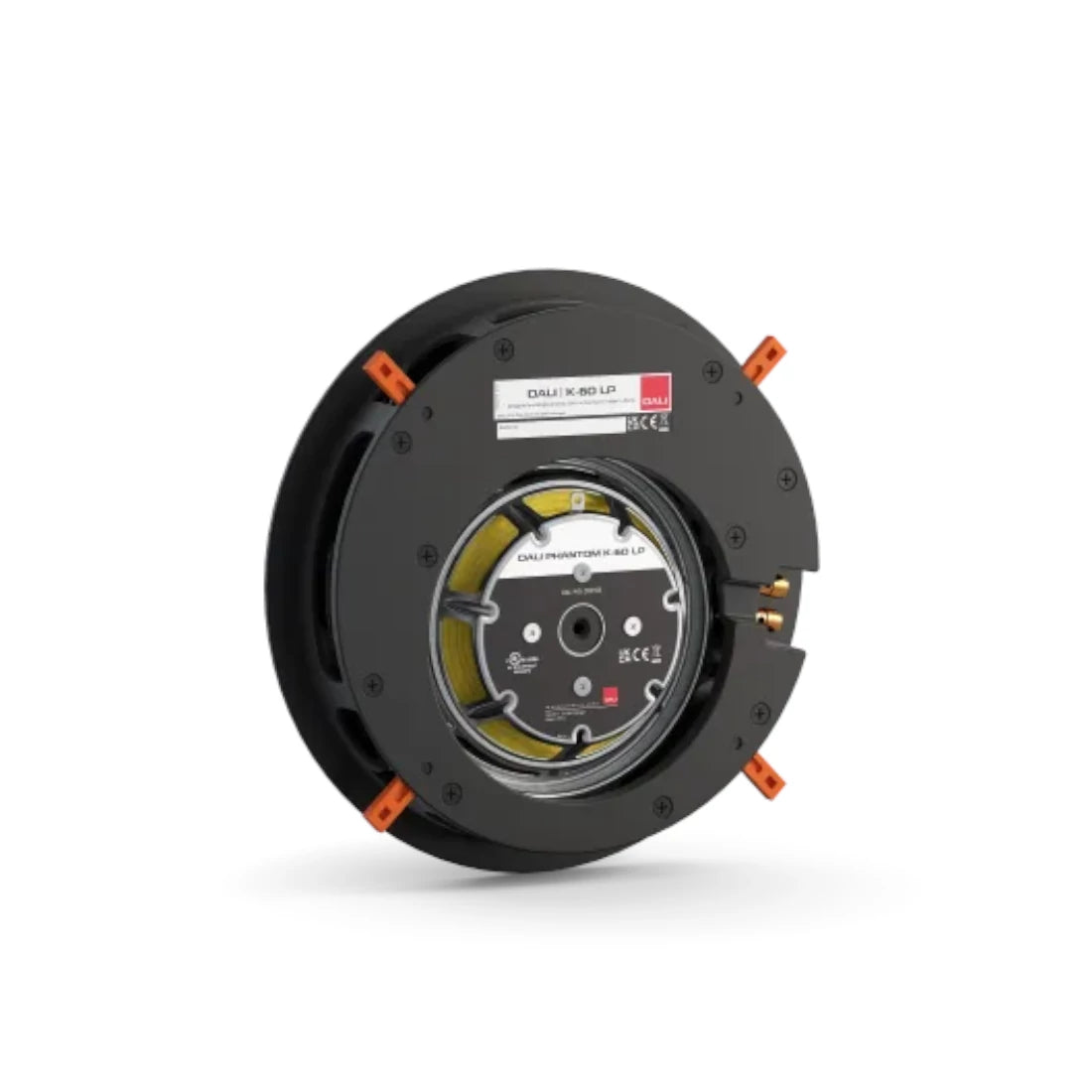

Install speakers typically require a backbox to be mounted behind the surface of a wall or ceiling... but not the K-60 LP. Installed quickly and conveniently using the dogleg mounting system, this low profile speaker delivers outstanding sound without the need for a backbox.
Wide dispersion
All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-60 also includes two slide switches for fine-tuning off-axis performance.
Where to Buy?
Buy Dali Phantom K-60 LP In-ceiling Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Dali Phantom K-60 LP In-ceiling Speaker
Brand & Model # | Dali Phantom K-60 LP |
Frequency Range (+/-3 DB) [HZ] |
52 - 25,000 |
Sensitivity [2.83V/1M, DB] | 84 dB |
Nominal Impedance [ohms] | 8 ohm |
Maximum SPL [dB] | 103 dB |
Recommended Amp. Power [Watts] | 40 - 150 |
Crossover Frequency [HZ] | 2,400 |
Crossover Principle |
2-way |
High Frequency Driver |
1 x 25 mm soft dome / soft woven fabric |
Low Frequency/midrange Driver(s) | 1 x 6 inch low profile Anodised aluminium |
Connection input | Single wire |
Enclosure Type | Open back |
Other features | Normal/High+ Normal/Mid+ |
Installation location | In-ceiling/In-wall |
Recommended Placement | Ceiling/Front/Centre/Surround |
Outer dimensions incl. grille (H x W x D) | Ø 265 x 43 mm Ø 10.43 x 1.70 inches |
Outer dimensions excl. grille (H x W x D) | Ø 242 x 41 mm Ø 9.53 x 1.62 inches |
Cut-out dimensions | Ø 223 mm Ø 8.78 inches |
Mounting depth | 36.5 mm 1.43 inches |
Mounting depth incl. BACK CAN | N/A |
Recommended rear volume (backbox) | 3 - 30 litres |
Optimum rear volume | 9 litres |
Ceiling/wall thickness (total dog-leg span) | 10.5 - 28 mm 0.41 - 1.10 inches |
Weight incl.grille | 1.2 kg / 2.64 lb |
Finish | White |
Accessories | Manual Cut-out template Front grille |
