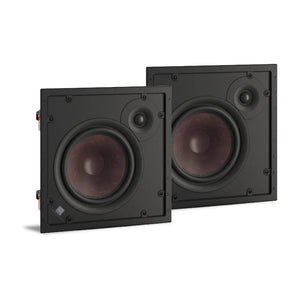

Dali Phantom H-80 In-wall Speaker

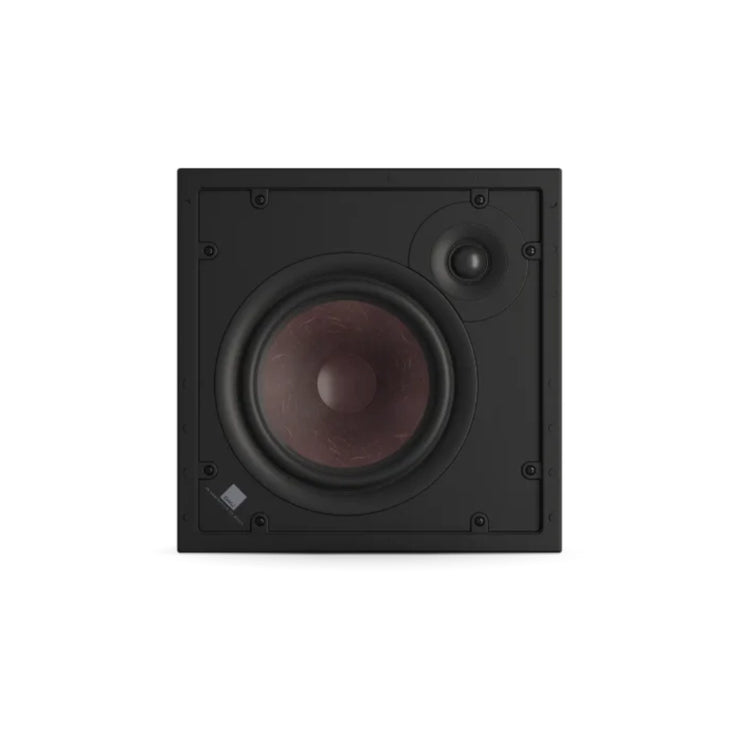

Dali Phantom H-80 - Front view

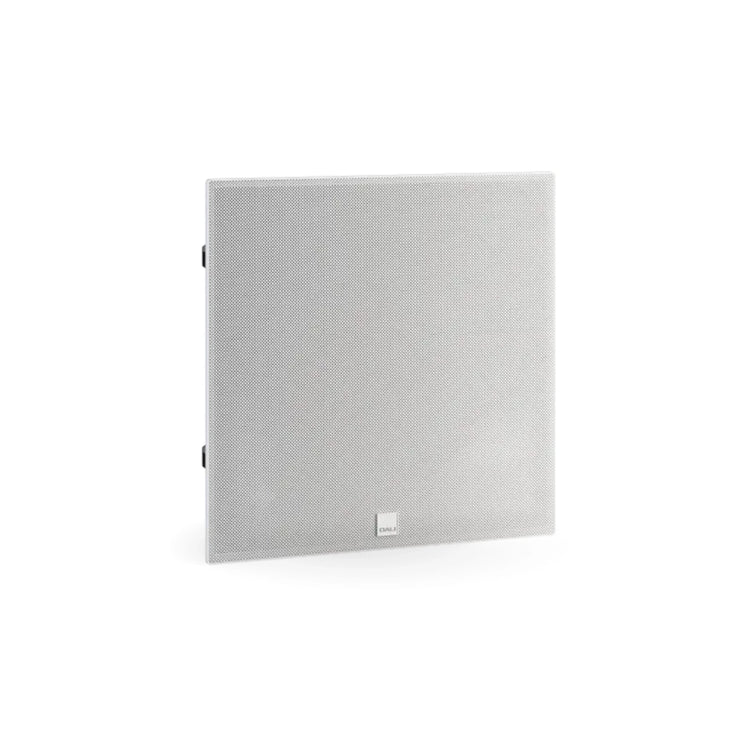

Dali Phantom H-80 with grille

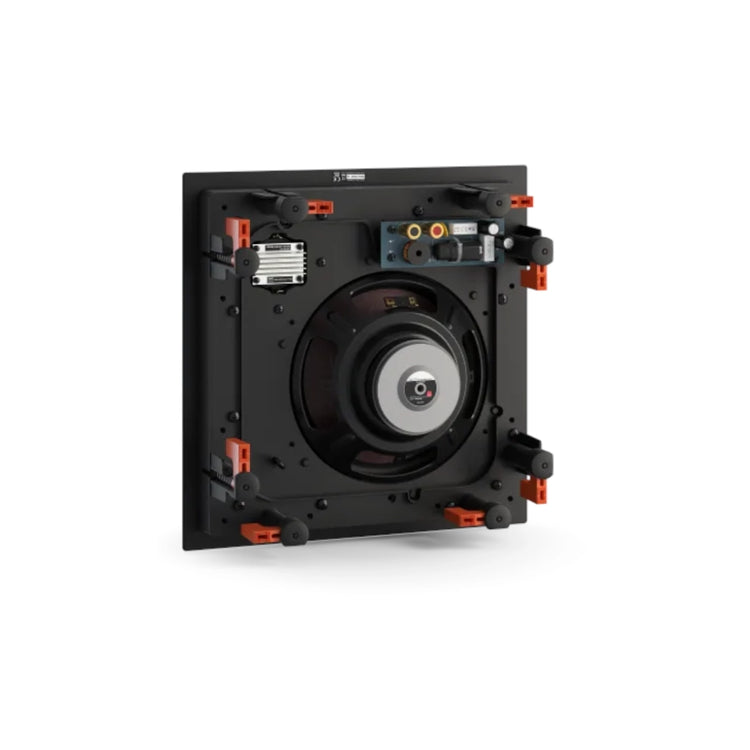

Dali Phantom H-80 - Rear view

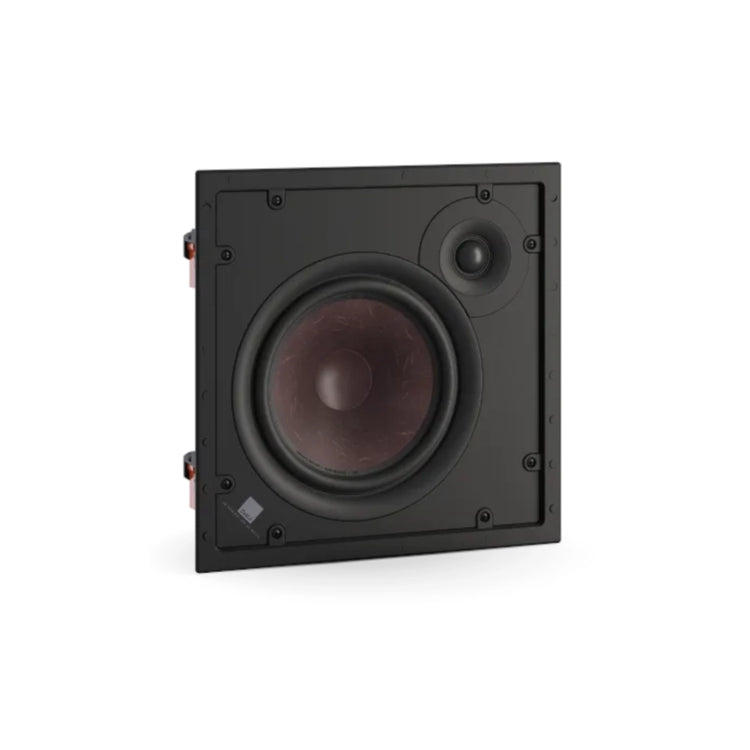

Dali Phantom H-80
    Dali Phantom H-80 In-wall Speaker
    Dali Phantom H-80 - Front view
    Dali Phantom H-80 with grille
    Dali Phantom H-80 - Rear view
    Dali Phantom H-80
Dali Phantom H-80 In-wall Speaker
Dali Phantom H-80 - Front view
Dali Phantom H-80 with grille
Dali Phantom H-80 - Rear view
Dali Phantom H-80
Dali Phantom H-80 In-wall Speaker
Dali Phantom H-80 - Front view
Dali Phantom H-80 with grille
Dali Phantom H-80 - Rear view
Dali Phantom H-80
    Dali Phantom H-80 In-wall Speaker
    Dali Phantom H-80 - Front view
    Dali Phantom H-80 with grille
    Dali Phantom H-80 - Rear view
    Dali Phantom H-80
Dali Phantom H-80 In-wall Speaker
Dali Phantom H-80 - Front view
Dali Phantom H-80 with grille
Dali Phantom H-80 - Rear view
Dali Phantom H-80

About

Description

The Dali Phantom H-80 is for when you're looking for large, dynamic and well-defined sound. Equipped with a powerful 8" woofer and designed primarily for in-wall use, the Phantom H-80 can also be mounted in the ceiling. The sound performance is clear, detailed, controlled and powerful, extending into every corner of even larger rooms and home cinemas. This in-wall speaker is built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-80 is a true full-range loudspeaker and needs no supplemental subwoofer – it's all about true Hi-Fi sound, versatility, and flexibility.

Warranty

2-year manufacturer's warranty

Dali Phantom H-80 Key Features

  • Wide Dispersion - Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of our familiar technologies, including wood fibre cones and soft dome tweeters

Benefits of Dali Phantom H-80 In-wall Speaker

Bringing dynamic sound to larger rooms

DALI Phantom H-80 - Bringing dynamic sound to larger rooms

The Phantom H-80 is the speaker you choose when large, dynamic and well-defined sound truly matters. The sound performance is clear, detailed, controlled and powerful, extending into every corner of even larger rooms and home cinemas. This in-wall speaker is built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-80 is a true full-range loudspeaker and needs no supplemental subwoofer – it's all about true Hi-Fi sound, versatility, and flexibility.

Details designed for optimal integration

Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-80 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-80 is quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.

High quality crossover

DALI Phantom H-80 - High quality crossover

Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Lightweight soft dome

DALI PHANTOM H-80 - Lightweight soft dome

The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-80 combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.

Wood fibre cone

DALI Phantom H-80 - Wood fibre cone

A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-80 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.

Wide dispersion

DALI Phantom H-80 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.

Where to Buy?

Buy Dali Phantom H-80 In-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom H-80 In-wall Speaker

Brand & Model # Dali Phantom H-80
Frequency Range (+/-3 DB) [HZ]
46 - 25,000
Sensitivity [2.83V/1M, DB] 90
Nominal Impedance [ohms] 6
Maximum SPL [dB] 109
Recommended Amp. Power [Watts] 30 - 200
Crossover Frequency [HZ] 2,350
Crossover principle 2-way
High Frequency Driver
1 x 28 mm soft dome Soft woven fabric
Low Frequency Driver/
Mid-range Driver(s)
1 x 8 inch Wood Fibre Cone
Connection Input(s) Single Wire
Enclosure Type Open Back
Other Features N/A
Installation Placement In-wall / In-ceiling
Recommended Location Ceiling / Front / Centre / Surround
Outer dimensions incl. grille
(H x W x D)
335 x 335 x 102 mm
13.19 x 13.19 x 4.02 inches
Outer dimensions excl. grille
(H x W x D)
320 x 320 x 99 mm
12.60 x 12.60 x 3.90 inches
Cut-out Dimentions (H x W) 299 x 299 mm
11.77 x 11.77 inches
Mounting depth 95 mm
3.74 inches
Recommended rear volume (backbox) 15 - 100 litres
Optimum rear volume 30 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl. Grille 3.50 kg
7.71 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
Description

The Dali Phantom H-80 is for when you're looking for large, dynamic and well-defined sound. Equipped with a powerful 8" woofer and designed primarily for in-wall use, the Phantom H-80 can also be mounted in the ceiling. The sound performance is clear, detailed, controlled and powerful, extending into every corner of even larger rooms and home cinemas. This in-wall speaker is built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-80 is a true full-range loudspeaker and needs no supplemental subwoofer – it's all about true Hi-Fi sound, versatility, and flexibility.

Warranty

2-year manufacturer's warranty

Dali Phantom H-80 Key Features

  • Wide Dispersion - Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of our familiar technologies, including wood fibre cones and soft dome tweeters

Benefits of Dali Phantom H-80 In-wall Speaker

Bringing dynamic sound to larger rooms

DALI Phantom H-80 - Bringing dynamic sound to larger rooms

The Phantom H-80 is the speaker you choose when large, dynamic and well-defined sound truly matters. The sound performance is clear, detailed, controlled and powerful, extending into every corner of even larger rooms and home cinemas. This in-wall speaker is built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-80 is a true full-range loudspeaker and needs no supplemental subwoofer – it's all about true Hi-Fi sound, versatility, and flexibility.

Details designed for optimal integration

Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-80 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-80 is quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.

High quality crossover

DALI Phantom H-80 - High quality crossover

Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Lightweight soft dome

DALI PHANTOM H-80 - Lightweight soft dome

The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-80 combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.

Wood fibre cone

DALI Phantom H-80 - Wood fibre cone

A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-80 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.

Wide dispersion

DALI Phantom H-80 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.

Where to Buy?

Buy Dali Phantom H-80 In-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom H-80 In-wall Speaker

Brand & Model # Dali Phantom H-80
Frequency Range (+/-3 DB) [HZ]
46 - 25,000
Sensitivity [2.83V/1M, DB] 90
Nominal Impedance [ohms] 6
Maximum SPL [dB] 109
Recommended Amp. Power [Watts] 30 - 200
Crossover Frequency [HZ] 2,350
Crossover principle 2-way
High Frequency Driver
1 x 28 mm soft dome Soft woven fabric
Low Frequency Driver/
Mid-range Driver(s)
1 x 8 inch Wood Fibre Cone
Connection Input(s) Single Wire
Enclosure Type Open Back
Other Features N/A
Installation Placement In-wall / In-ceiling
Recommended Location Ceiling / Front / Centre / Surround
Outer dimensions incl. grille
(H x W x D)
335 x 335 x 102 mm
13.19 x 13.19 x 4.02 inches
Outer dimensions excl. grille
(H x W x D)
320 x 320 x 99 mm
12.60 x 12.60 x 3.90 inches
Cut-out Dimentions (H x W) 299 x 299 mm
11.77 x 11.77 inches
Mounting depth 95 mm
3.74 inches
Recommended rear volume (backbox) 15 - 100 litres
Optimum rear volume 30 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl. Grille 3.50 kg
7.71 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
