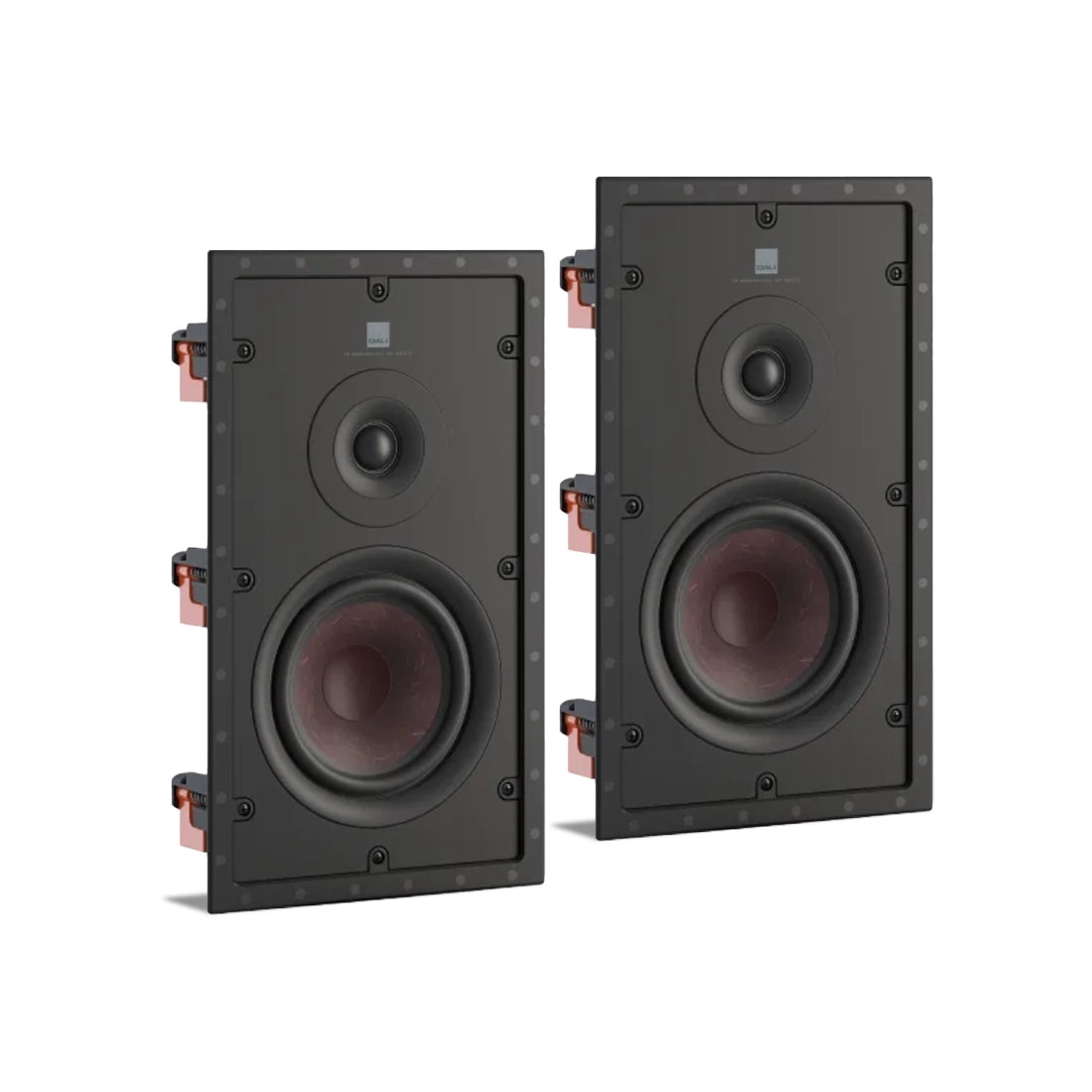

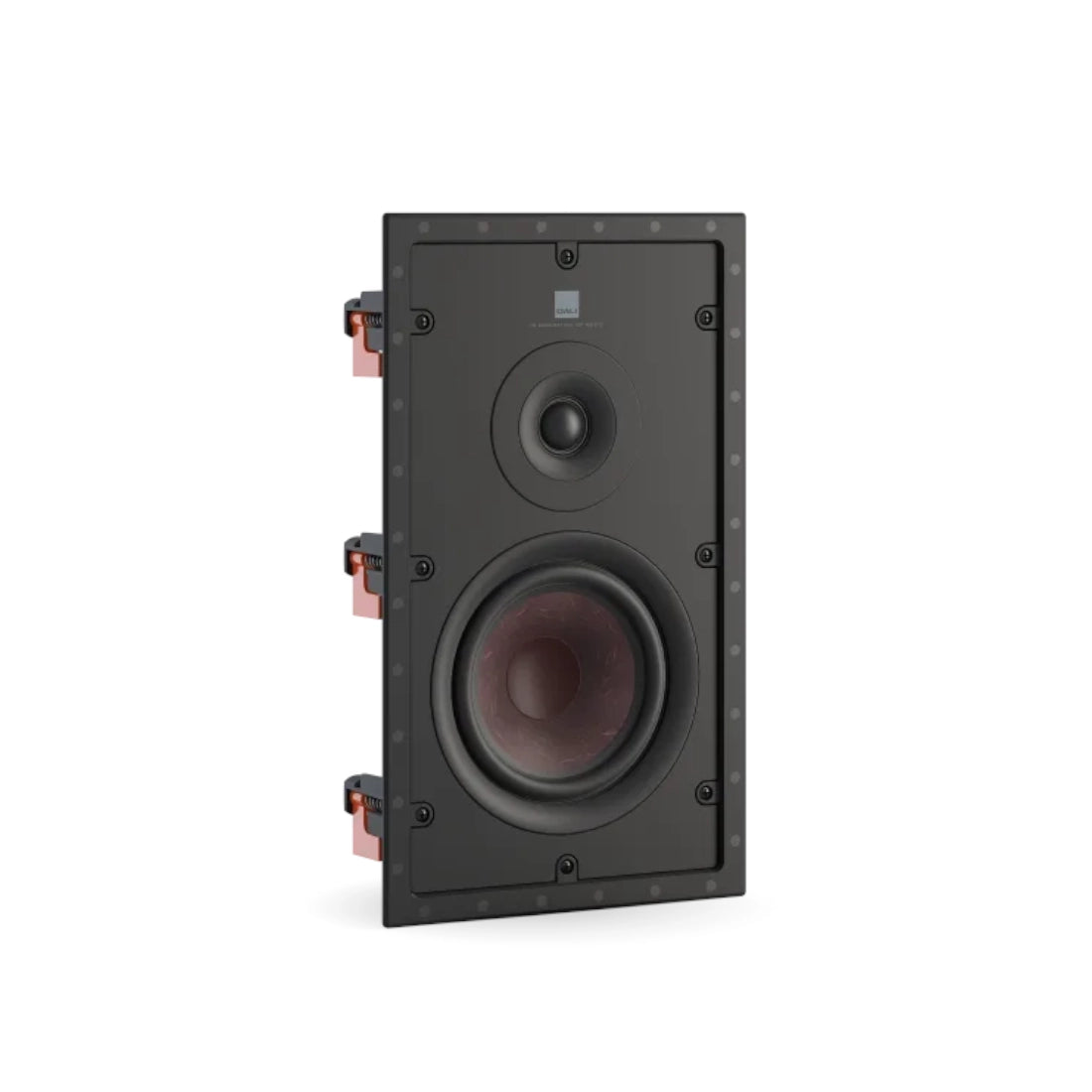

Dali Phantom H-60 R Bookshelf Style in-wall Speaker

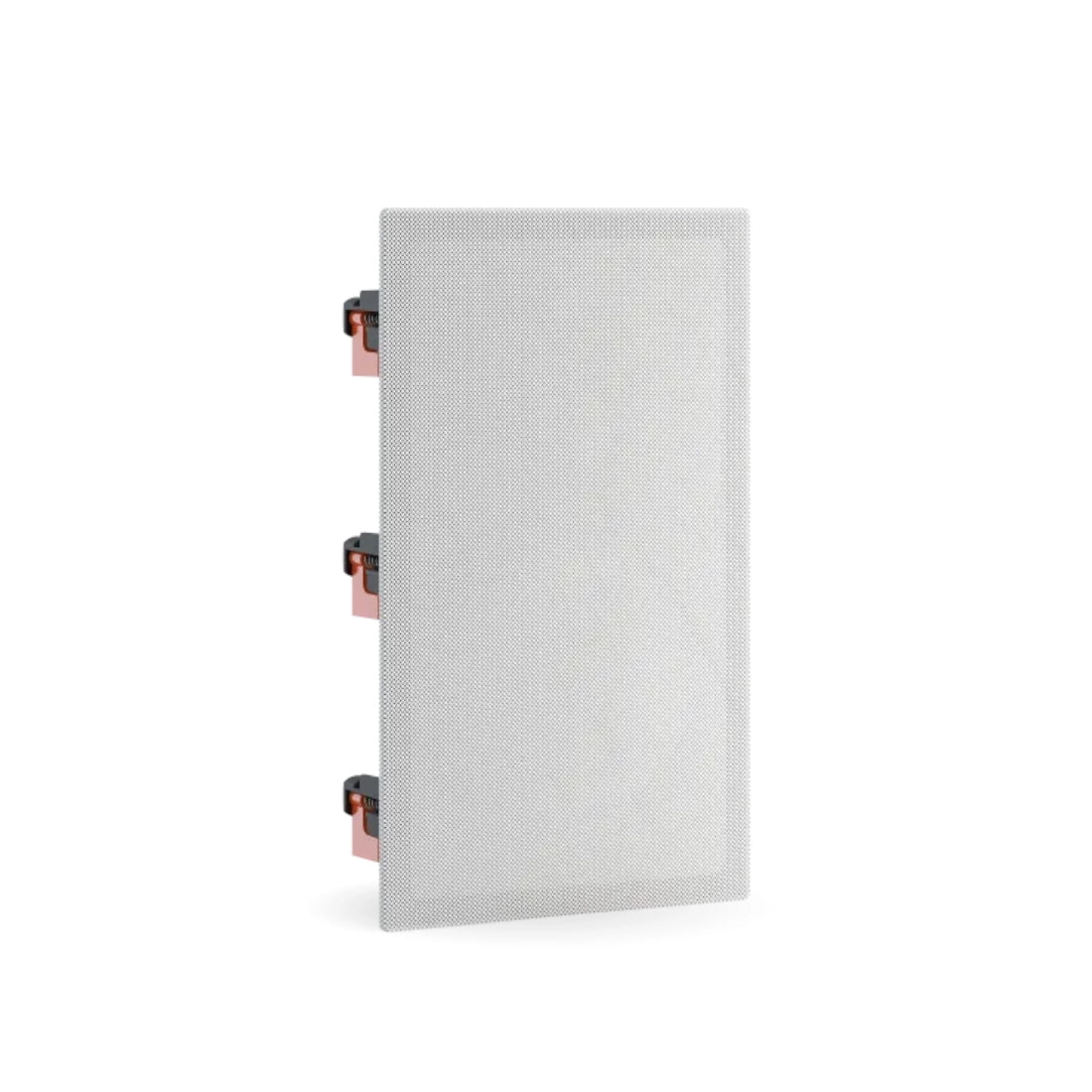

Dali Phantom H-60 R with grille

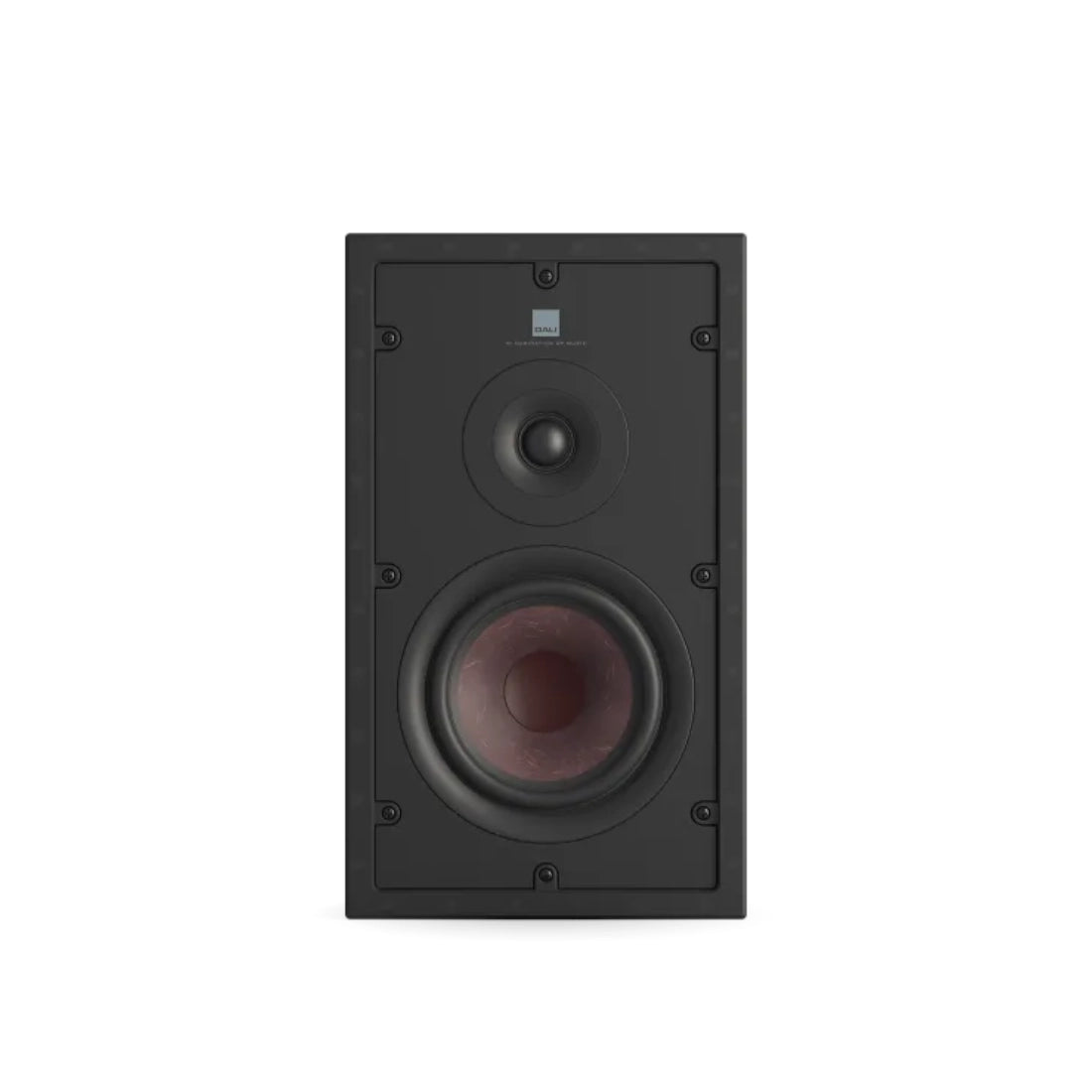

Dali Phantom H-60 R - Front view

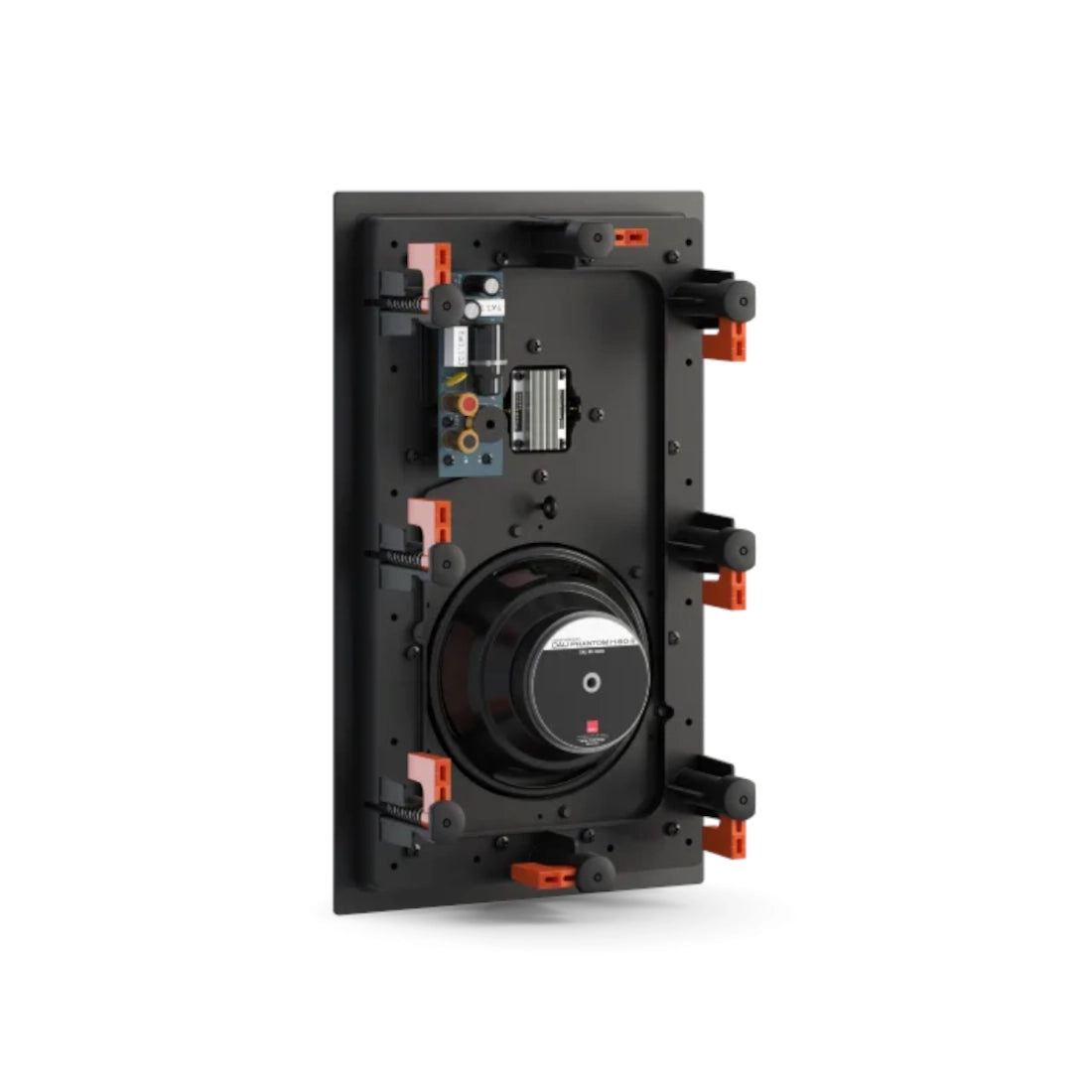

Dali Phantom H-60 R in-wall Speaker - Rear view

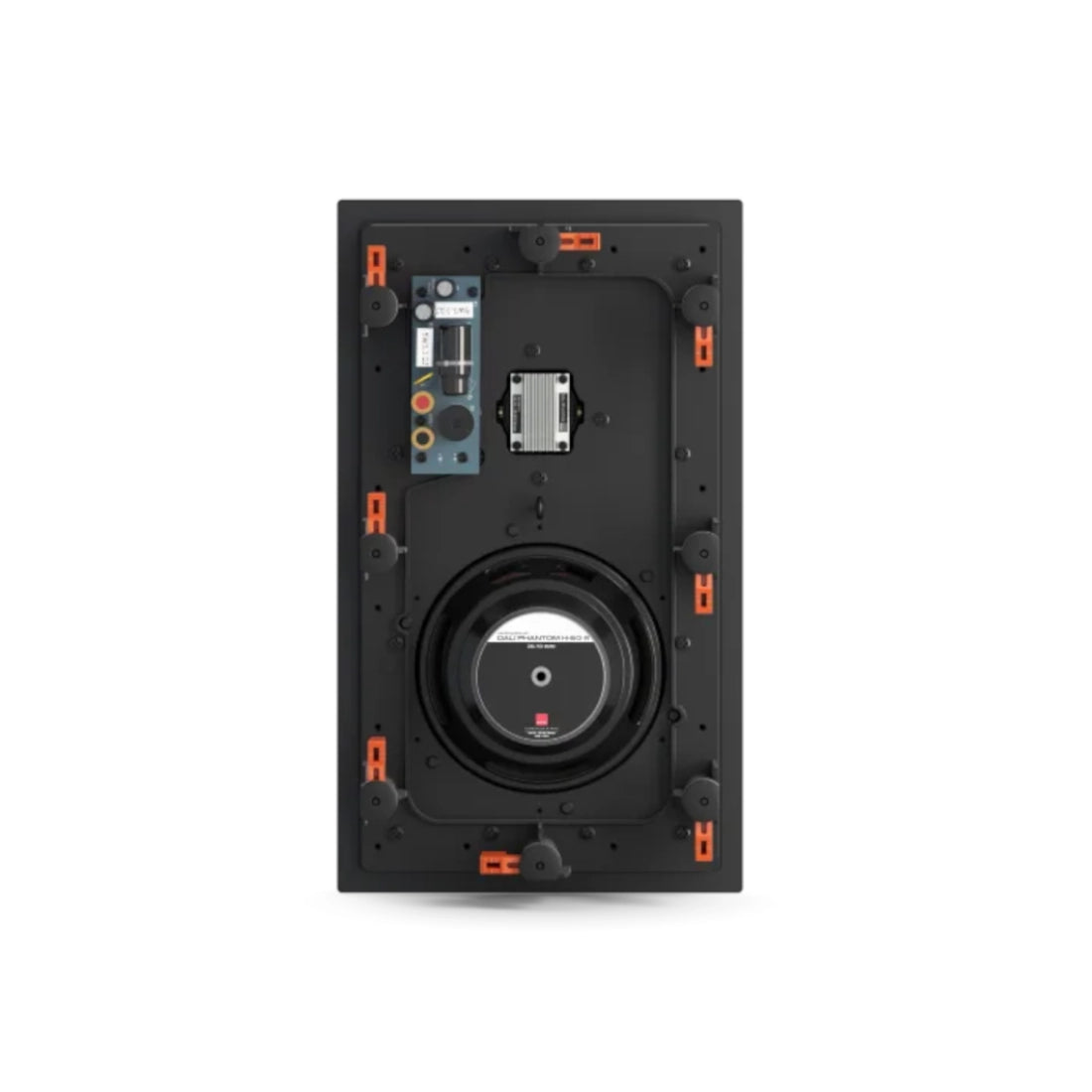

Dali Phantom H-60 R - Rear view
    Dali Phantom H-60 R Bookshelf Style in-wall Speaker
    Dali Phantom H-60 R with grille
    Dali Phantom H-60 R - Front view
    Dali Phantom H-60 R in-wall Speaker - Rear view
    Dali Phantom H-60 R - Rear view
Dali Phantom H-60 R Bookshelf Style in-wall Speaker
Dali Phantom H-60 R with grille
Dali Phantom H-60 R - Front view
Dali Phantom H-60 R in-wall Speaker - Rear view
Dali Phantom H-60 R - Rear view
Dali Phantom H-60 R Bookshelf Style in-wall Speaker
Dali Phantom H-60 R with grille
Dali Phantom H-60 R - Front view
Dali Phantom H-60 R in-wall Speaker - Rear view
Dali Phantom H-60 R - Rear view
    Dali Phantom H-60 R Bookshelf Style in-wall Speaker
    Dali Phantom H-60 R with grille
    Dali Phantom H-60 R - Front view
    Dali Phantom H-60 R in-wall Speaker - Rear view
    Dali Phantom H-60 R - Rear view
Dali Phantom H-60 R Bookshelf Style in-wall Speaker
Dali Phantom H-60 R with grille
Dali Phantom H-60 R - Front view
Dali Phantom H-60 R in-wall Speaker - Rear view
Dali Phantom H-60 R - Rear view

About

Description

The Dali Phantom H-60 R is a rectangular version of Dali Phantom H-60 speaker with the same impressive features and balance between size and performance - but with a more traditional, rectangular form. The Phantom H-60 R fills a room with a large soundstage and natural dynamics. An alternative to traditional bookshelf speakers and small floorstanders, it offers the same level of musical performance in a more discreet form. In fact, the Phantom H-60 R's minimised cabinet edge diffraction delivers a smooth midrange and better time alignment with the bass. Locating the speaker in the wall rather than near also improves impulse response, while increased acoustical loading lets the PHANTOM H-60 R work less hard at low frequencies.

Warranty

2-year manufacturer's warranty

Dali Phantom H-60 R Key Features

  • Amazing Sound Quality - With its large soundstage and natural dynamics, the H-R series can easily replace a pair of shelf-mounted or small floorstander speakers
  • Rectangular Form Factor - Dali developed the rectangular H-R series to appeal to those who prefer a more traditional look.
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of Dali's familiar technologies, including wood fibre cones and soft dome tweeters

Benefits of Dali Phantom H-60 R Bookshelf Style In-wall Speaker

No-compromise sound from in-wall speaker

Dali Phantom H-60 R - No-compromise sound from in-wall speaker

The PHANTOM H-60 R fills a room with a large soundstage and natural dynamics. An alternative to traditional bookshelf speakers and small floorstanders, it offers the same level of musical performance in a more discreet form. In fact, the Phantom H-60 R's minimised cabinet edge diffraction delivers a smooth midrange and better time alignment with the bass. Locating the speaker in the wall rather than near also improves impulse response, while increased acoustical loading lets the Phantom H-60 R work less hard at low frequencies.

Rectangular form factor

Dali Phantom H-60 R - Rectangular Form Factor

Dali designed the PHANTOM H-R series to offer a rectangular alternative to the square PHANTOM H series speakers. So, if you're looking for the performance of the Phantom H-60 in a more conventional form, the H-60 R will integrate seamlessly into any room in your home.

Wood fibre cone

DALI Phantom H-60 R - Wood fibre cone

A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-60 R woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.

Deep bass response

DALI Phantom H-60 R - Deep bass response

PHANTOM series speakers are optimised to deliver tremendous bass response for their size. Using large magnet systems coupled to an efficient moving system with long excursion, the PHANTOM H-60 R has a warm, full sound profile, yet punchy and fast – without sacrificing the details and naturalness of the important midrange frequencies.

Lightweight soft dome

DALI Phantom H-60 R - Lightweight soft dome

The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-60 R combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.

Low resonance baffle

DALI Phantom H-60 R - Low resonance baffle

The low resonance MDF baffle construction provides a solid base for the drivers and reduces colouration. The thick, stiff outer trim of the baffle also makes a better connection with the wall, lowering resonance even further and minimises distortion.

Where to Buy?

Buy Dali Phantom H-60 R Bookshelf Style in-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom H-60 R Bookshelf Style in-wall Speaker

Brand & Model # Dali Phantom H-60 R
Frequency Range (+/-3 DB) [HZ]
51 - 25,000
Sensitivity [2.83V/1M, DB] 89
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Recommended Amp. Power [Watts] 30 - 150
Crossover Frequency [HZ] 1,900 Hz
Crossover principle 2-way
High Frequency Driver
1 x 28 mm soft dome Soft woven fabric
Low Frequency Driver/
Mid-range Driver(s)
1 x 6½ inch Wood Fibre Cone
Connection Input(s) Single Wire
Enclosure Type Open Back
Other Features N/A
Installation Placement In-wall / In-ceiling
Recommended Location Ceiling / Front / Centre / Surround
Outer dimensions incl. grille
(H x W x D)
414 x 244 x 97 mm
16.30 x 9.61 x 3.82 mm
Outer dimensions excl. grille
(H x W x D)
410 x 240 x 96 mm
16.14 x 9.45 x 3.78 inches
Cut-out Dimentions (H x W) 390 x 220 mm
15.35 x 8.66 inches
Mounting depth 92 mm
3.62 inches
Recommended rear volume (backbox) 10 - 35 litres
Optimum rear volume 20 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl. Grille 3.50 kg
7.71 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
