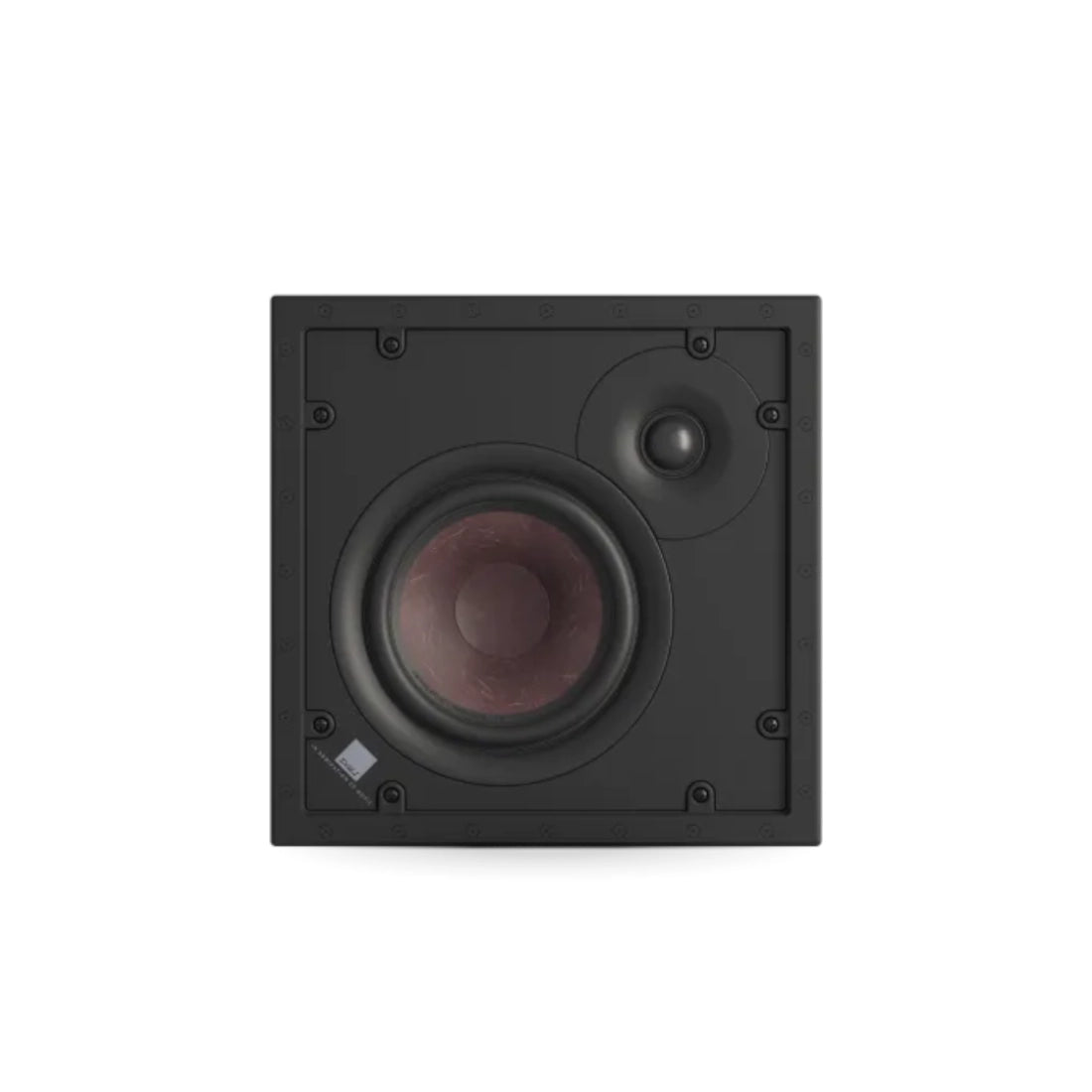

Dali Phantom H-60 - Front view

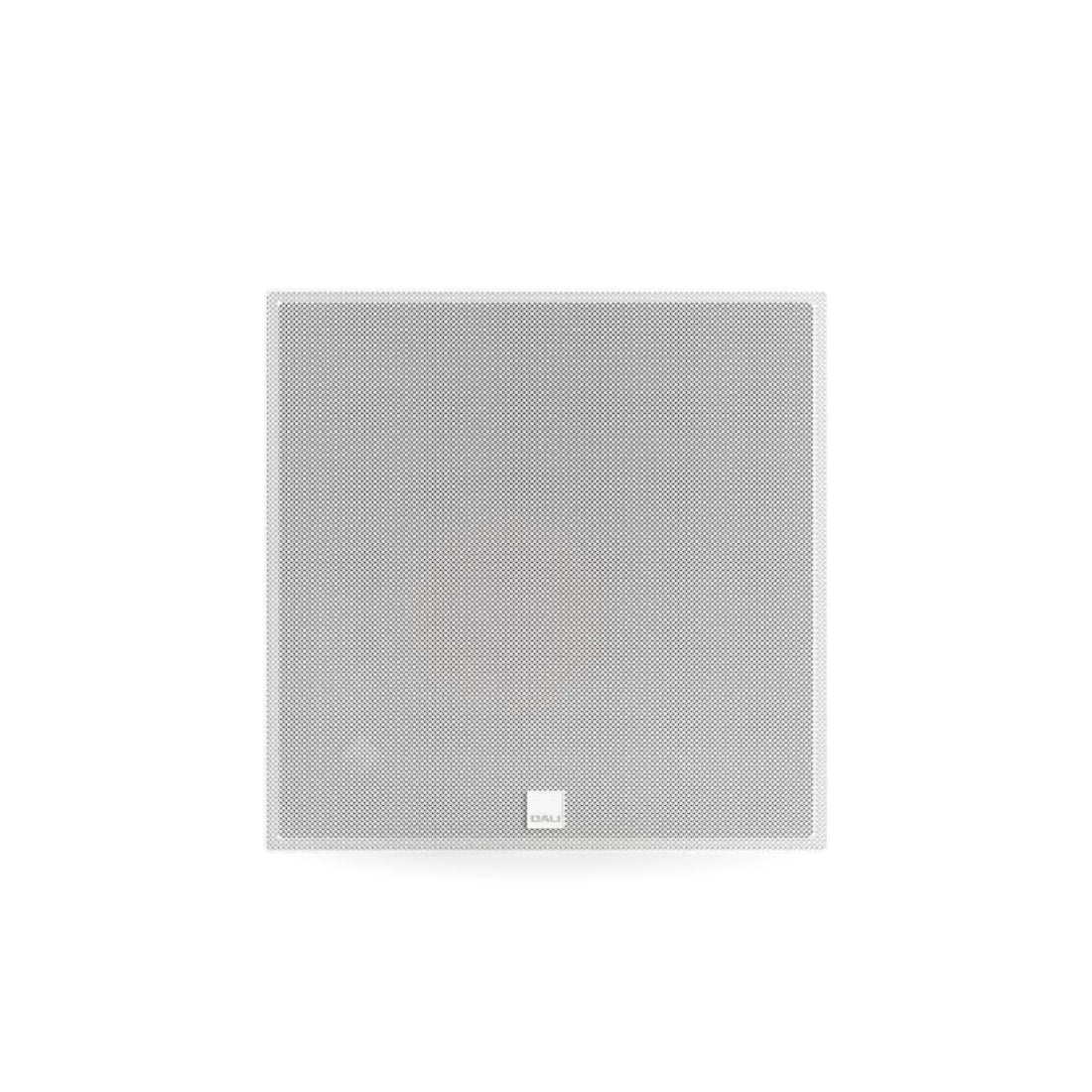

Dali Phantom H-60 with grille

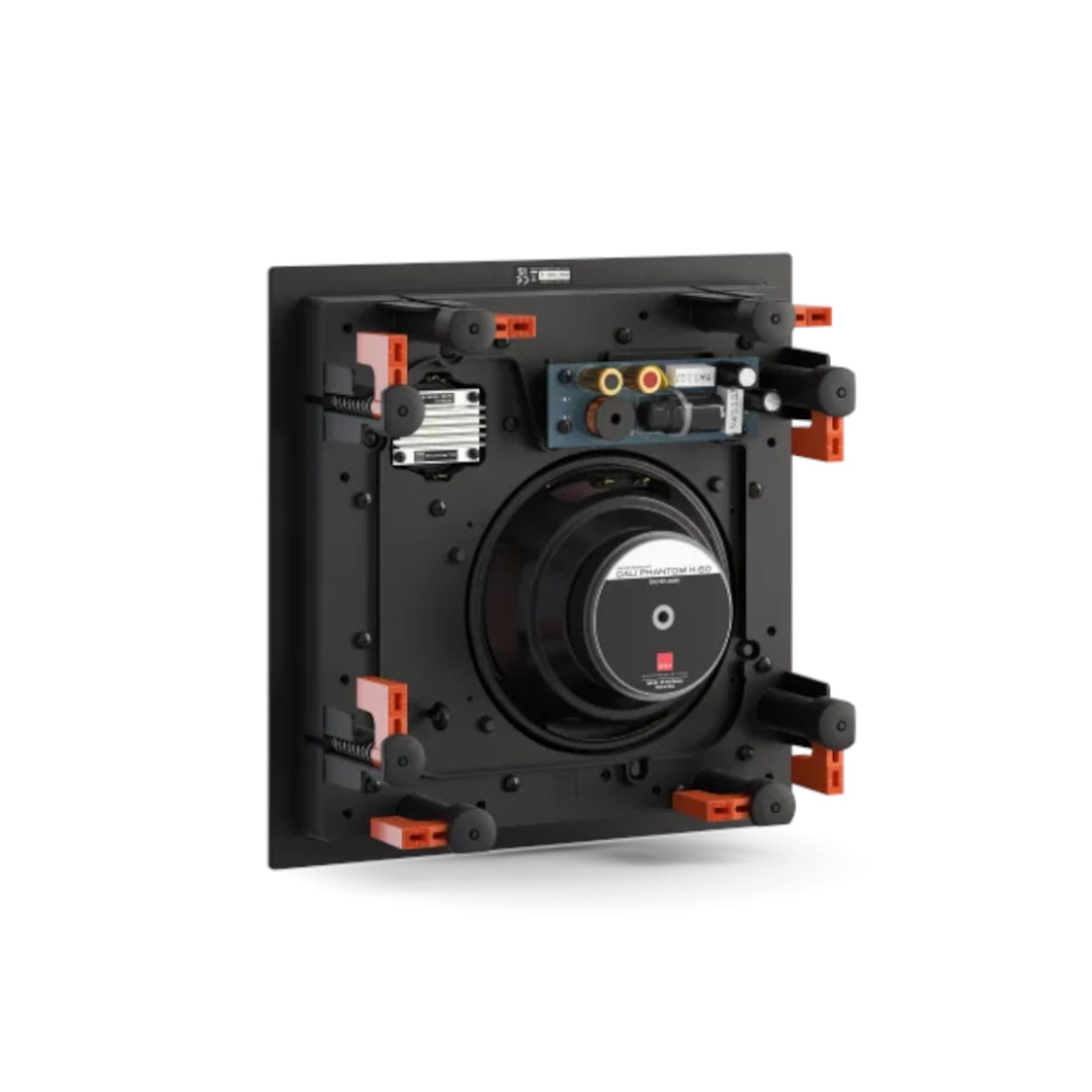

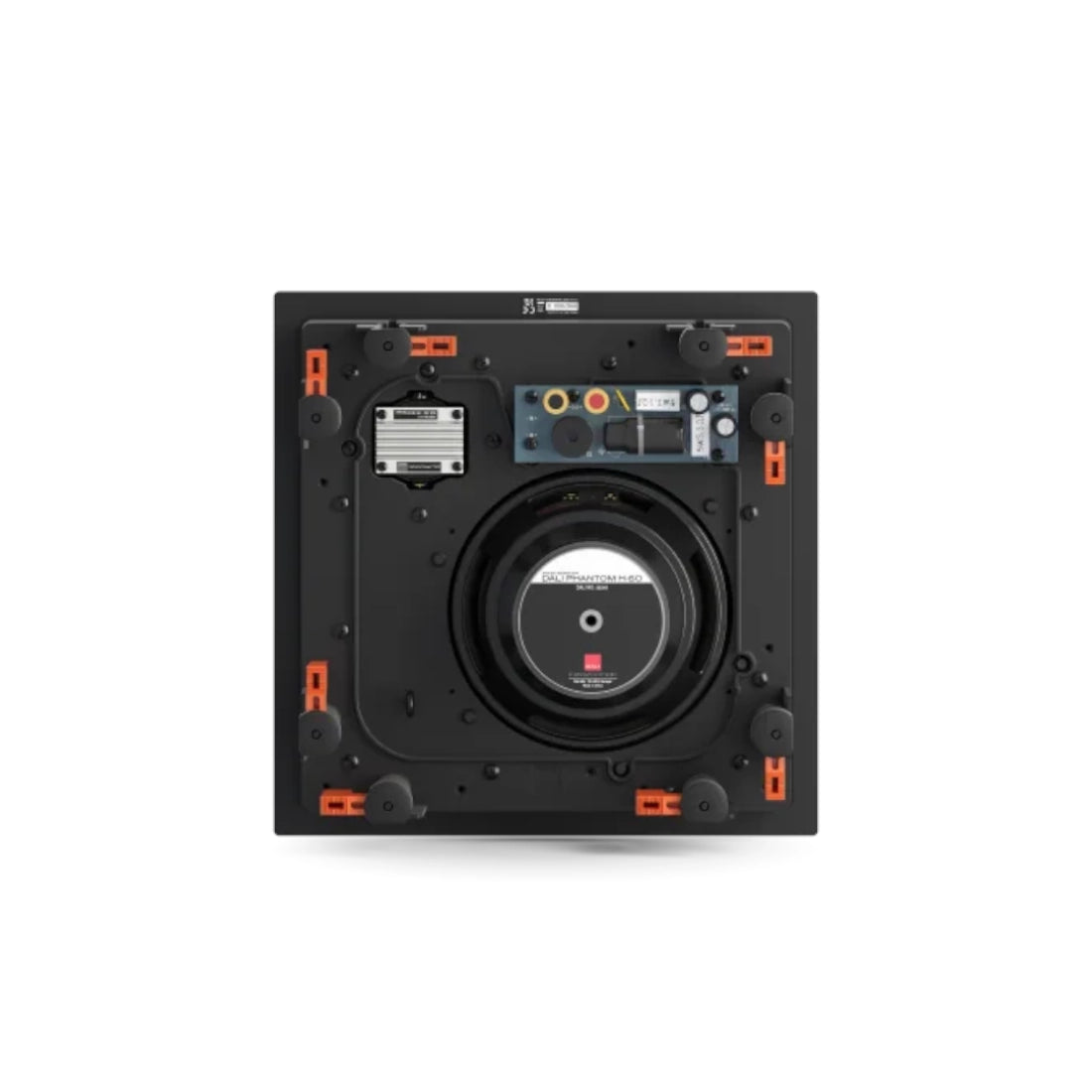

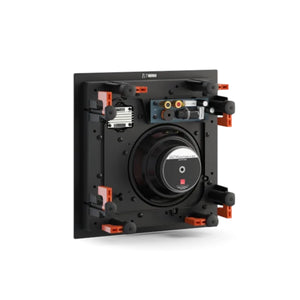

Dali Phantom H-60 - Rear view

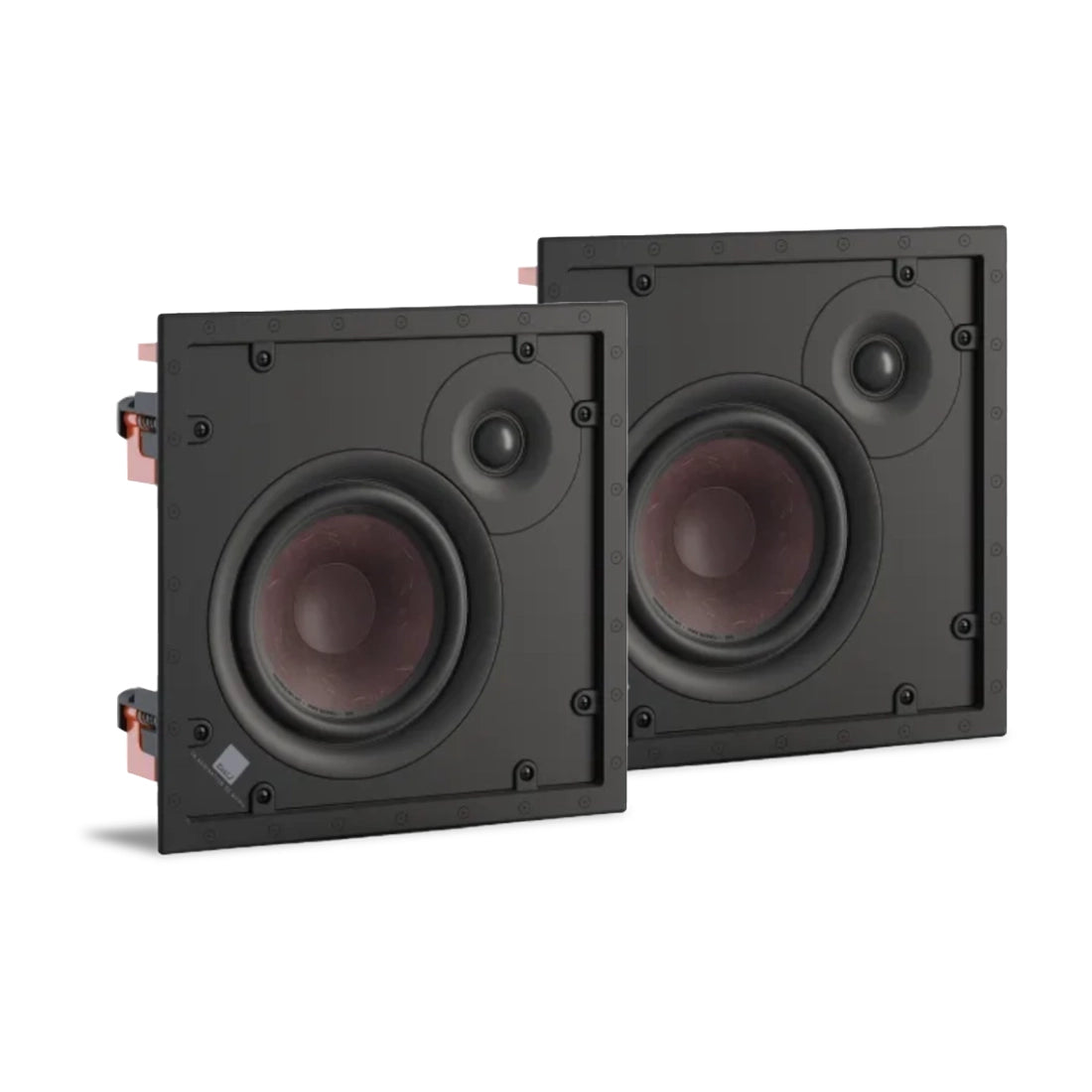

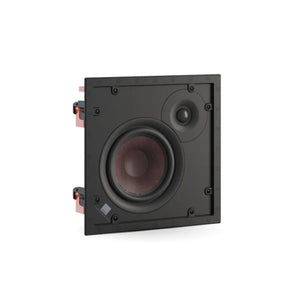

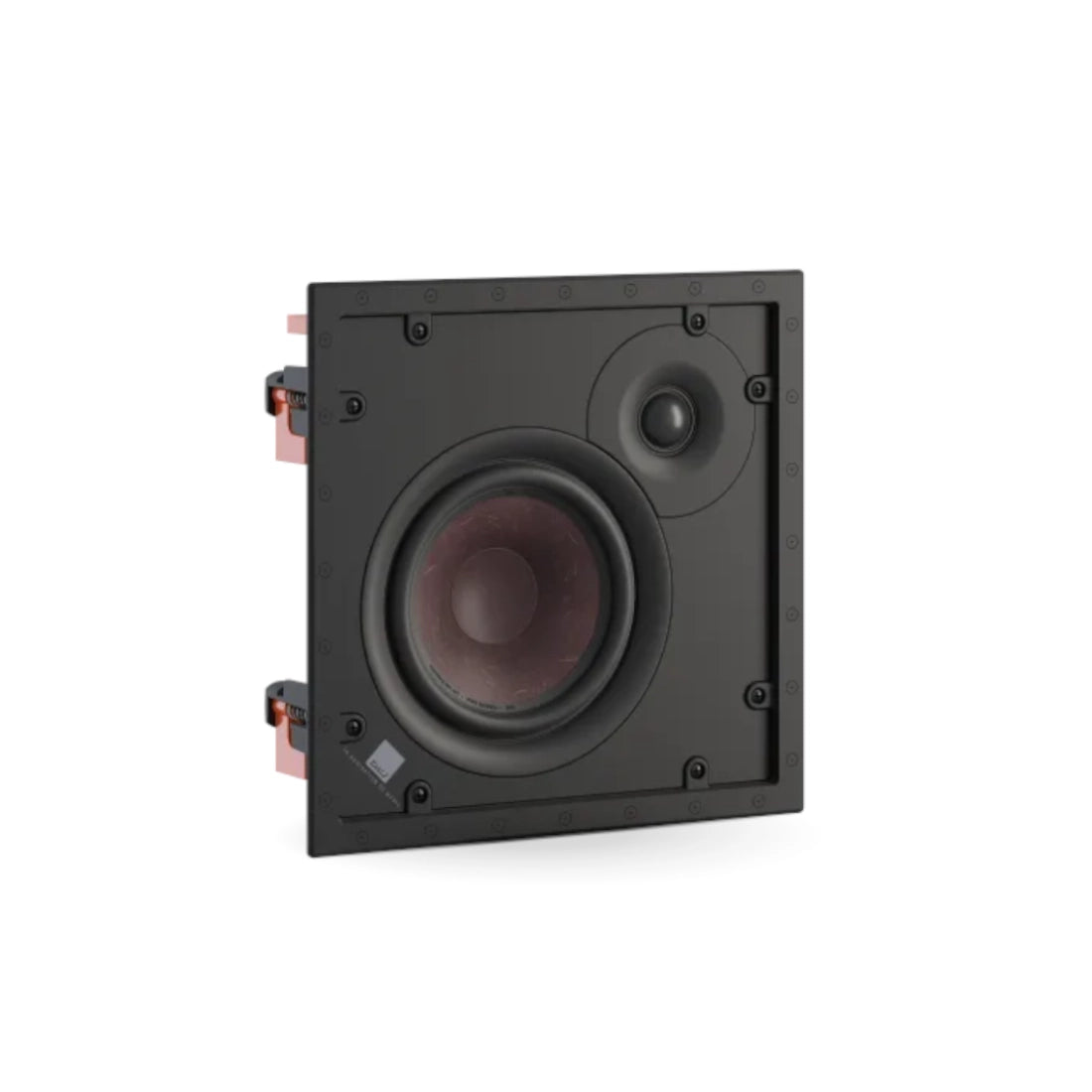

Dali Phantom H-60
    Dali Phantom H-60 - Front view
    Dali Phantom H-60 with grille
    Dali Phantom H-60 - Rear view
    Dali Phantom H-60
Dali Phantom H-60 - Front view
Dali Phantom H-60 with grille
Dali Phantom H-60 - Rear view
Dali Phantom H-60
Dali Phantom H-60 - Front view
Dali Phantom H-60 with grille
Dali Phantom H-60 - Rear view
Dali Phantom H-60
    Dali Phantom H-60 - Front view
    Dali Phantom H-60 with grille
    Dali Phantom H-60 - Rear view
    Dali Phantom H-60
Dali Phantom H-60 - Front view
Dali Phantom H-60 with grille
Dali Phantom H-60 - Rear view
Dali Phantom H-60

About

Description

The Dali Phantom H-60 in-wall speaker delivers the perfect balance between size and performance. Featuring a 6¬Ω" woofer and designed for in-wall use, the PHANTOM H-60 performs equally as well as an in-ceiling speaker. With the PHANTOM H-60, you get a loudspeaker with the perfect balance of size and performance, bringing a complete audio experience to medium sized rooms and home cinemas. It's an in-wall speaker built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-60 is a true full-range loudspeaker and needs no additional subwoofer – it's all about Hi-Fi sound, versatility and flexibility.

Warranty

2-year manufacturer's warranty

Dali Phantom H-60 Key Features

  • Wide Dispersion - Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of our familiar technologies, including wood fibre cones and soft dome tweeters

Benefits of Dali Phantom H-60 In-wall Speaker

Perfect balance in size & performance

DALI Phantom H-60 - Perfect balance in size & performance

With the PHANTOM H-60, you get a loudspeaker with the perfect balance of size and performance, bringing a complete audio experience to medium sized rooms and home cinemas. It's an in-wall speaker built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-60 is a true full-range loudspeaker and needs no additional subwoofer – it's all about Hi-Fi sound, versatility and flexibility.

Compact design

DALI Phantom H-60 - Compact design

Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-60 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-60 is quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.

High quality crossover

DALI Phantom H-60 - High quality crossover

Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Lightweight soft dome

DALI Phantom H-60 - Lightweight soft dome

The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-60 combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.

Wood fibre cone

DALI Phantom H-60 - Wood fibre cone

A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-60 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.

Wide dispersion

DALI Phantom H-60 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.

Where to Buy?

Buy Dali Phantom H-60 In-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom H-60 In-wall Speaker

Brand & Model # Dali Phantom H-60
Frequency Range (+/-3 DB) [HZ]
51 - 25,000
Sensitivity [2.83V/1M, DB] 89
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Recommended Amp. Power [Watts] 30 - 150
Crossover Frequency [HZ] 1,900
Crossover principle 2-way
High Frequency Driver
1 x 28 mm soft dome Soft woven fabric
Low Frequency Driver/
Mid-range Driver(s)
1 x 6½ inch Wood Fibre Cone
Connection Input(s) Single Wire
Enclosure Type Open Back
Other Features N/A
Installation Placement In-wall / In-ceiling
Recommended Location Ceiling / Front / Centre / Surround
Outer dimensions incl. grille
(H x W x D)
300 x 300 x 98 mm
11.81 x 11.81 x 3.86 inches
Outer dimensions excl. grille
(H x W x D)
285 x 285 x 96 mm
11.22 x 11.22 x 3.78 inches
Cut-out Dimentions (H x W) 264 x 264 mm
10.39 x 10.39 inches
Mounting depth 92 mm
3.62 inches
Recommended rear volume (backbox) 10 - 35 litres
Optimum rear volume 20 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl. Grille 3 kg
6.60 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
Description

The Dali Phantom H-60 in-wall speaker delivers the perfect balance between size and performance. Featuring a 6¬Ω" woofer and designed for in-wall use, the PHANTOM H-60 performs equally as well as an in-ceiling speaker. With the PHANTOM H-60, you get a loudspeaker with the perfect balance of size and performance, bringing a complete audio experience to medium sized rooms and home cinemas. It's an in-wall speaker built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-60 is a true full-range loudspeaker and needs no additional subwoofer – it's all about Hi-Fi sound, versatility and flexibility.

Warranty

2-year manufacturer's warranty

Dali Phantom H-60 Key Features

  • Wide Dispersion - Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of our familiar technologies, including wood fibre cones and soft dome tweeters

Benefits of Dali Phantom H-60 In-wall Speaker

Perfect balance in size & performance

DALI Phantom H-60 - Perfect balance in size & performance

With the PHANTOM H-60, you get a loudspeaker with the perfect balance of size and performance, bringing a complete audio experience to medium sized rooms and home cinemas. It's an in-wall speaker built around innovative loudspeaker technologies, such as Dali's signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-60 is a true full-range loudspeaker and needs no additional subwoofer – it's all about Hi-Fi sound, versatility and flexibility.

Compact design

DALI Phantom H-60 - Compact design

Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-60 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-60 is quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.

High quality crossover

DALI Phantom H-60 - High quality crossover

Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Lightweight soft dome

DALI Phantom H-60 - Lightweight soft dome

The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-60 combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.

Wood fibre cone

DALI Phantom H-60 - Wood fibre cone

A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-60 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.

Wide dispersion

DALI Phantom H-60 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.

Where to Buy?

Buy Dali Phantom H-60 In-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom H-60 In-wall Speaker

Brand & Model # Dali Phantom H-60
Frequency Range (+/-3 DB) [HZ]
51 - 25,000
Sensitivity [2.83V/1M, DB] 89
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Recommended Amp. Power [Watts] 30 - 150
Crossover Frequency [HZ] 1,900
Crossover principle 2-way
High Frequency Driver
1 x 28 mm soft dome Soft woven fabric
Low Frequency Driver/
Mid-range Driver(s)
1 x 6½ inch Wood Fibre Cone
Connection Input(s) Single Wire
Enclosure Type Open Back
Other Features N/A
Installation Placement In-wall / In-ceiling
Recommended Location Ceiling / Front / Centre / Surround
Outer dimensions incl. grille
(H x W x D)
300 x 300 x 98 mm
11.81 x 11.81 x 3.86 inches
Outer dimensions excl. grille
(H x W x D)
285 x 285 x 96 mm
11.22 x 11.22 x 3.78 inches
Cut-out Dimentions (H x W) 264 x 264 mm
10.39 x 10.39 inches
Mounting depth 92 mm
3.62 inches
Recommended rear volume (backbox) 10 - 35 litres
Optimum rear volume 20 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl. Grille 3 kg
6.60 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
