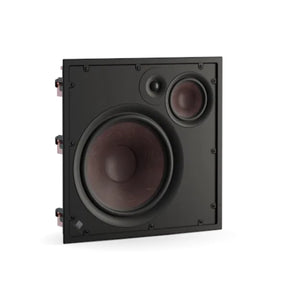

The Dali Phantom H-120 in-wall speaker brings the best qualities of a large floorstander in a speaker mounted in your wall. With an unprecedented 12" woofer that delivers deep and powerful bass, as well as a 5" woofer to handle the important midrange frequencies, this 3-way speaker delivers like no other in-wall loudspeaker. Perfect for spaces where floorstanding speakers or subwoofers can't be used, the PHANTOM H-120 is a full-range speaker that delivers all the bass you need without needing a separate subwoofer – it's all about true Hi-Fi sound, versatility and flexibility.
Warranty
2-year manufacturer's warranty
Dali Phantom H-120 Key Features
- Wide Dispersion - Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers

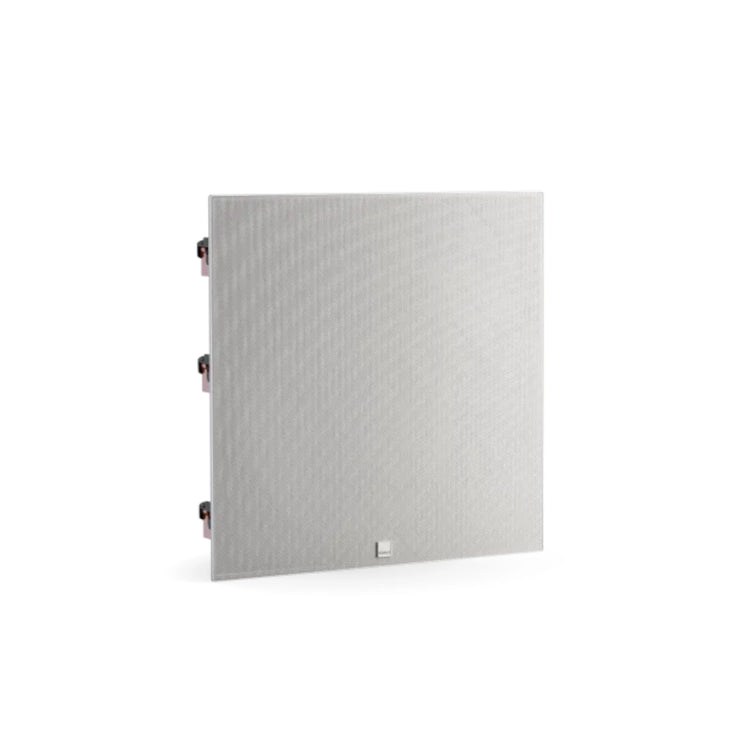

- Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
- Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
- Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of our familiar technologies, including wood fibre cones and soft dome tweeters
Benefits of Dali Phantom H-120 In-wall Speaker
Deep and powerful bass
The Phantom H-120 in-wall loudspeaker brings the best qualities of a large floorstander in a speaker mounted in your wall. With an unprecedented 12" woofer that delivers deep and powerful bass, as well as a 5" woofer to handle the important midrange frequencies, this 3-way speaker delivers like no other in-wall loudspeaker. Perfect for spaces where floorstanding speakers or subwoofers can't be used, the PHANTOM H-120 is a full-range speaker that delivers all the bass you need without needing a separate subwoofer – it's all about true Hi-Fi sound, versatility and flexibility.
Details designed for optimal integration
Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-120 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-120 is also quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.
High quality crossover
Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.
Lightweight soft dome
The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-120 combines extended frequency response with wide dispersion and low colouration to improve the integration with the midrange and bass drivers.
Wood fibre cone
A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-120 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.
Wide dispersion
All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.
Where to Buy?
Buy Dali Phantom H-120 In-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Dali Phantom H-120 In-wall Speaker
Brand & Model # | Dali Phantom H-120 |
Frequency Range (+/-3 DB) [HZ] |
32 - 25,000 |
Sensitivity [2.83V/1M, DB] | 90 |
Nominal Impedance [ohms] | 4 |
Maximum SPL [dB] | 112 |
Recommended Amp. Power [Watts] | 50 - 400 |
Crossover Frequency [HZ] | 850 / 4,000 Hz |
Crossover principle | 2-way |
High Frequency Driver |
1 x 28 mm soft dome Soft woven fabric |
Low Frequency Driver/ Mid-range Driver(s) |
1 x 12 inch 1 x 5¼ inch Wood Fibre Cone |
Connection Input(s) | Single Wire |
Enclosure Type | Open Back |
Other Features | N/A |
Installation Placement | In-wall / In-ceiling |
Recommended Location | Front / Centre / Surround |
Outer dimensions incl. grille (H x W x D) |
487 x 487 x 164 mm 19.17 x 19.17 x 6.46 inches |
Outer dimensions excl. grille (H x W x D) |
472 x 472 x 162 mm 18.58 x 18.58 x 6.37 inches |
Cut-out Dimentions (H x W) | 452 x 452 mm 17.80 x 17.80 inches |
Mounting depth | 158 mm 6.22 inches |
Recommended rear volume (backbox) | 50 - 100 litres |
Optimum rear volume | 70 litres |
Ceiling/wall thickness (total dog-leg span) | 10 - 70 mm 0.39 - 2.76 inches |
Weight incl. Grille | 10.8 kg 23.8 lb |
Finish | White |
Accessories | Manual Cut-out template Front grille Logo badge |
The Dali Phantom H-120 in-wall speaker brings the best qualities of a large floorstander in a speaker mounted in your wall. With an unprecedented 12" woofer that delivers deep and powerful bass, as well as a 5" woofer to handle the important midrange frequencies, this 3-way speaker delivers like no other in-wall loudspeaker. Perfect for spaces where floorstanding speakers or subwoofers can't be used, the PHANTOM H-120 is a full-range speaker that delivers all the bass you need without needing a separate subwoofer – it's all about true Hi-Fi sound, versatility and flexibility.
Warranty
2-year manufacturer's warranty
Dali Phantom H-120 Key Features
- Wide Dispersion - Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
- Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
- Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
- Traditional Speaker Technologies - DALI PHANTOM in-wall speakers feature many of our familiar technologies, including wood fibre cones and soft dome tweeters
Benefits of Dali Phantom H-120 In-wall Speaker
Deep and powerful bass
The Phantom H-120 in-wall loudspeaker brings the best qualities of a large floorstander in a speaker mounted in your wall. With an unprecedented 12" woofer that delivers deep and powerful bass, as well as a 5" woofer to handle the important midrange frequencies, this 3-way speaker delivers like no other in-wall loudspeaker. Perfect for spaces where floorstanding speakers or subwoofers can't be used, the PHANTOM H-120 is a full-range speaker that delivers all the bass you need without needing a separate subwoofer – it's all about true Hi-Fi sound, versatility and flexibility.
Details designed for optimal integration
Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-120 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-120 is also quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.
High quality crossover
Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.
Lightweight soft dome
The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-120 combines extended frequency response with wide dispersion and low colouration to improve the integration with the midrange and bass drivers.
Wood fibre cone
A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using Dali's signature wood fibre cone technology, the PHANTOM H-120 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.
Wide dispersion
All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.
Where to Buy?
Buy Dali Phantom H-120 In-wall Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Dali Phantom H-120 In-wall Speaker
Brand & Model # | Dali Phantom H-120 |
Frequency Range (+/-3 DB) [HZ] |
32 - 25,000 |
Sensitivity [2.83V/1M, DB] | 90 |
Nominal Impedance [ohms] | 4 |
Maximum SPL [dB] | 112 |
Recommended Amp. Power [Watts] | 50 - 400 |
Crossover Frequency [HZ] | 850 / 4,000 Hz |
Crossover principle | 2-way |
High Frequency Driver |
1 x 28 mm soft dome Soft woven fabric |
Low Frequency Driver/ Mid-range Driver(s) |
1 x 12 inch 1 x 5¼ inch Wood Fibre Cone |
Connection Input(s) | Single Wire |
Enclosure Type | Open Back |
Other Features | N/A |
Installation Placement | In-wall / In-ceiling |
Recommended Location | Front / Centre / Surround |
Outer dimensions incl. grille (H x W x D) |
487 x 487 x 164 mm 19.17 x 19.17 x 6.46 inches |
Outer dimensions excl. grille (H x W x D) |
472 x 472 x 162 mm 18.58 x 18.58 x 6.37 inches |
Cut-out Dimentions (H x W) | 452 x 452 mm 17.80 x 17.80 inches |
Mounting depth | 158 mm 6.22 inches |
Recommended rear volume (backbox) | 50 - 100 litres |
Optimum rear volume | 70 litres |
Ceiling/wall thickness (total dog-leg span) | 10 - 70 mm 0.39 - 2.76 inches |
Weight incl. Grille | 10.8 kg 23.8 lb |
Finish | White |
Accessories | Manual Cut-out template Front grille Logo badge |
Dali Phantom H-120 In-wall Speaker
Country of Origin: China
