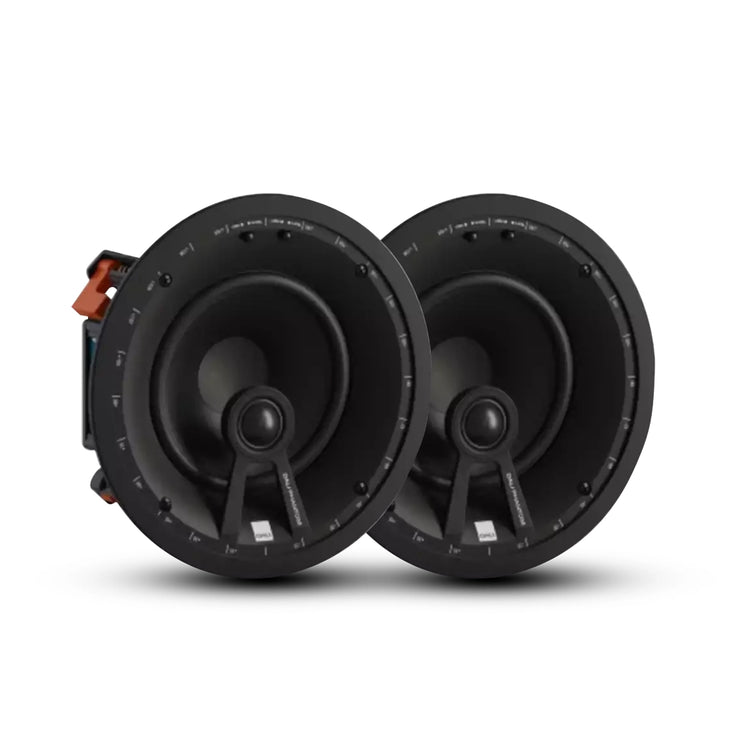

Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker

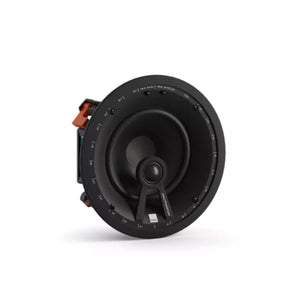

Dali Phantom E-80 WR - Front view

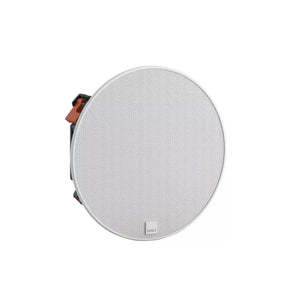

Dali Phantom E-80 WR - with grille
Dali Phantom E-80 WR
    Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker
    Dali Phantom E-80 WR - Front view
    Dali Phantom E-80 WR - with grille
    Dali Phantom E-80 WR
Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker
Dali Phantom E-80 WR - Front view
Dali Phantom E-80 WR - with grille
Dali Phantom E-80 WR
Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker
Dali Phantom E-80 WR - Front view
Dali Phantom E-80 WR - with grille
Dali Phantom E-80 WR
    Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker
    Dali Phantom E-80 WR - Front view
    Dali Phantom E-80 WR - with grille
    Dali Phantom E-80 WR
Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker
Dali Phantom E-80 WR - Front view
Dali Phantom E-80 WR - with grille
Dali Phantom E-80 WR

About

Description

The E-80 WR offers class-leading performance and versatility. With added weather resistance and IP65-rated ingress protection, the E-80 WR in-ceiling loudspeaker is suitable for almost any location, from high-humidity bathrooms to covered outdoor terraces. With a working range of -20 to +60°C and IP65 rating, it's ready to take on the elements. So whether you want background music for the laundry room, bathroom or spa, or immersive multi-channel sound on the terrace, the E-80 WR delivers. The dogleg clamp system makes for straightforward installation without the need for special tools. Simply connect the cables to the spring terminals, insert the speaker and turn the four clamp screws to tighten it into place. The speaker is also slim enough to fit into almost any standard ceiling.

Warranty

2-year manufacturer's warranty

Dali Phantom E-80 WR Key Features

  • Engineered weather resistance -  With its engineered weather-resistant features suitable for covered outdoor and high-humidity locations, the in-ceiling loudspeaker can fill almost every space with high-quality sound
  • Class-leading sound quality - This speaker delivers exceptional sound quality in its class, thanks to features like the tilted driver, which minimises driver and baffle resonance for reduced distortion and colouration
  • Functional versatility - It's more than just an in-ceiling loudspeaker - it's a high-performance sound solution for almost any ceiling location and any application
  • Easy installation - The intuitive dogleg clamp system makes installation simple – no special tools required

Benefits of Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker

Engineered weather resistance

Dali Phantom E-80 WR - Engineered weather resistance


With its engineered, weather-resistant features, the E-80 WR in-ceiling loudspeaker is suitable for covered outdoor and high-humidity locations. With a working range of -20 to +60°C and IP65 rating, it's ready to take on the elements. So whether you want background music for the laundry room, bathroom or spa, or immersive multi-channel sound on the terrace, the E-80 WR delivers.

High-performance drivers and low-loss surround

Dali Phantom E-80 WR - High-performance drivers and low-loss surround

The bass/midrange driver incorporates a stiff yet light polypropylene cone and a very low-loss rubber surround for uncoloured and natural midrange combined with deep and rich low frequency performance. The E-80 WR's 25 mm textile dome tweeter offers an impressively extended and detailed upper frequency response.

Fine-tuned for any space

Dali Phantom E-80 WR - Fine-tuned for any space

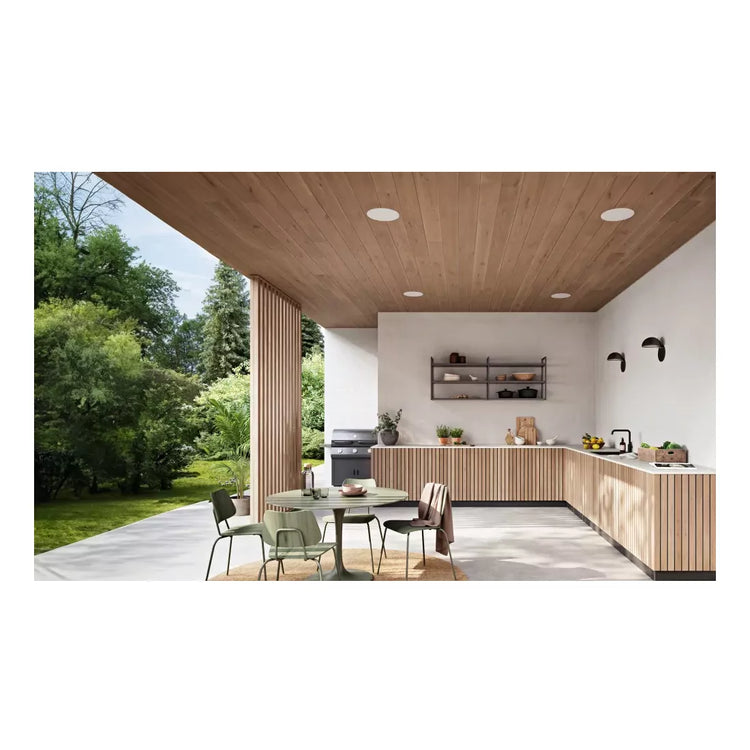

The E-80 WR is more than an in-ceiling loudspeaker – it's a high-performance sound solution for almost any ceiling and application. Install one or two speakers in your bathroom for high-quality tunes as you shower or several on the terrace for an immersive multi-channel audio space.

Easy installation

DALI E-80 WR - Easy installation

The dogleg clamp system makes for straightforward installation without the need for special tools. Simply connect the cables to the spring terminals, insert the speaker and turn the four clamp screws to tighten it into place. The speaker is also slim enough to fit into almost any standard ceiling.

Tilted drivers

DALI E-80 WR - Tilted drivers

The 5° off-axis tilt of the E-80 WR drivers means you can rotate the speaker to direct more sound towards the primary listening position. The tilted design also minimises resonance from the driver and baffle, which helps to lower distortion and colouration for a more accurate audio reproduction.

Paintable magnetic grille

DALI - Paintable magnetic grille

The white magnetic grille helps the E-80 WR blend discreetly into any room, while the paintable surface lets you add a splash of colour for an aesthetic twist. The grille is also electroplated to add extra protection against the elements.

Where to Buy?

Buy Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom E-80 WR In-ceiling Weather Resistant Speaker

Brand & Model # Dali Phantom E-80 WR
Frequency Range (+/-3 DB) [HZ]
49 - 25,000
Sensitivity [2.83V/1M, DB] 89 dB
Nominal Impedance [ohms] 6 ohm
Maximum SPL [dB] 107 dB
Recommended Amp. Power [Watts] 30 - 150
Crossover Frequency [HZ] 3,200
Crossover Principle
2-way
High Frequency Driver
1 x 25 mm soft dome / soft woven fabric
Low Frequency/midrange Driver(s) 1 x 8 " Polypropylene
Connection input Single wire
Enclosure Type Open back
Other features Normal/High+
Normal/Mid+
Galvanized grille
Installation location In-ceiling/In-wall
Recommended Placement Ceiling/Front/Centre/Surround
IP Rating IP65
Outer dimensions incl. grille (H x W x D) Ø 295 x 116 mm
Ø 11.61 x 4.57 inches
Outer dimensions excl. grille (H x W x D) Ø 278 x 113 mm
Ø 10.94 x 4.45 inches
Cut-out dimensions Ø  261 mm
Ø 10.28 inches
Mounting depth 109 mm
4.29 inches
Recommended rear volume (backbox) 5 - 100 litres
Optimum rear volume 30 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl.grille 2.50 kg / 5.51 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
