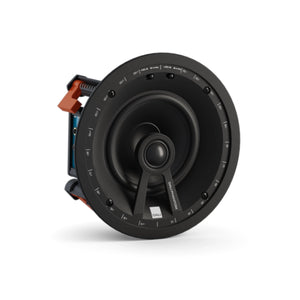

Dali Phantom E-50 In-ceiling Speaker

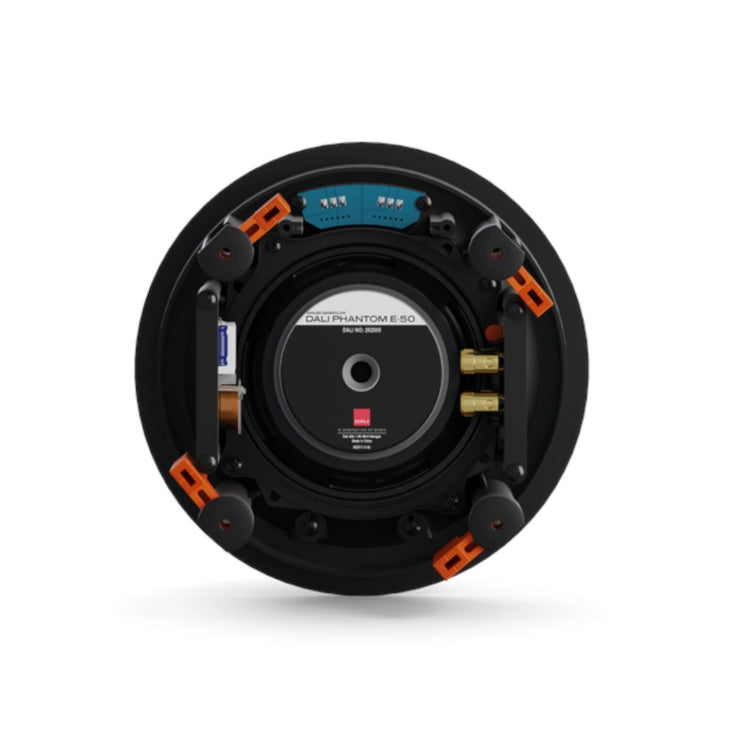

Dali Phantom E-50 In-ceiling Speaker - Rear View
Dali Phantom E-50
Dali Phantom E-50 - side rear angle view
    Dali Phantom E-50 In-ceiling Speaker
    Dali Phantom E-50 In-ceiling Speaker - Rear View
    Dali Phantom E-50
    Dali Phantom E-50 - side rear angle view
Dali Phantom E-50 In-ceiling Speaker
Dali Phantom E-50 In-ceiling Speaker - Rear View
Dali Phantom E-50
Dali Phantom E-50 - side rear angle view
Dali Phantom E-50 In-ceiling Speaker
Dali Phantom E-50 In-ceiling Speaker - Rear View
Dali Phantom E-50
Dali Phantom E-50 - side rear angle view
    Dali Phantom E-50 In-ceiling Speaker
    Dali Phantom E-50 In-ceiling Speaker - Rear View
    Dali Phantom E-50
    Dali Phantom E-50 - side rear angle view
Dali Phantom E-50 In-ceiling Speaker
Dali Phantom E-50 In-ceiling Speaker - Rear View
Dali Phantom E-50
Dali Phantom E-50 - side rear angle view

About

Description

The DALI Phantom E-50 in-ceiling speaker offers exceptionally clear, well-defined audio with impressive bass performance for its compact size. Its small footprint makes it an excellent choice for a stereo setup in a small room or as a rear speaker pair in a larger home cinema. While primarily designed for in-ceiling installation, the Phantom E-50 can also be mounted in-wall. Its user-friendly compass positioning system allows for precise tuning, ensuring optimal sound quality tailored to your space.

Warranty

2-year manufacturer's warranty

Dali Phantom E-50 Key Features

  • Wide dispersion -  DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Functional Flexibility - The Phantom E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space

Benefits of Dali Phantom E-50 In-ceiling Speaker

Designed for optimum in-ceiling use

Dali Phantom E-50 - Designed for optimum In-ceiling use

This compact in-ceiling loudspeaker delivers an incredibly clear and well-defined audio experience and impresses with the level of bass it can produce. Its compact size makes it perfect for a stereo setup in a small room or as a rear speaker pair in a larger home cinema. The PHANTOM E-50 is designed for in-ceiling use but can also be installed in-wall. Also, the easy-to-use compass positioning system makes for simple fine-tuning of the speaker for the best possible sound.

Design details

Dali Phantom E-50 - Design details

Thick edges around the PHANTOM E-50 baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-50 integrate perfectly into any room.

Protecting against overheating with PPTC

Dali Phantom E-50 - Protecting against overheating with PPTC

The PHANTOM E-50 crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function. Also called a resettable fuse, the PPTC safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Tweeter placement

Dali Phantom E-50 - Tweeter placement

The 25 mm soft dome tweeter module in the PHANTOM E-50 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter's positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.

Polypropylene woofer

Dali Phantom E-50 - Polypropylene woofer

To ensure the best balance between durability and great audio reproduction, the 5¼" woofer features a polypropylene cone that's tilted and angled to improve directionality and sound staging. Every part of the woofer has been designed according to our low-loss principles, so even smaller amplifiers can combine with the PHANTOM E-50 to deliver a high-quality audio experience.

Wide dispersion

Dali Phantom E-50 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-50 also has two slide switches for fine-tuning off-axis performance.

Where to Buy?

Buy Dali Phantom E-50 In-ceiling Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom E-50 In-ceiling Speaker

Brand & Model # Dali Phantom E-50
Frequency Range (+/-3 DB) [HZ]
58 - 25,000
Sensitivity [2.83V/1M, DB] 87 dB
Nominal Impedance [ohms] 8 ohm
Maximum SPL [dB] 104 dB
Recommended Amp. Power [Watts] 40 - 120
Crossover Frequency [HZ] 3,600
Crossover Principle
2-way
High Frequency Driver
1 x 25 mm soft dome / soft woven fabric
Low Frequency/midrange Driver(s) 1 x 5¼ " Polypropylene
Connection input Single wire
Enclosure Type Open back
Other features Normal/High+
Normal/Mid+
Installation location In-ceiling/In-wall
Recommended Placement Ceiling/Front/Centre/Surround
Outer dimensions incl. grille (H x W x D) Ø 231 x 105 mm
Ø 9.09 x 4.13 inches
Outer dimensions excl. grille (H x W x D) Ø 214 x 101 mm
Ø 8.43 x 3.98 inches
Cut-out dimensions Ø 197 mm
Ø 7.76 inches
Mounting depth 97 mm
3.82 inches
Recommended rear volume (backbox) 5 - 35 litres
Optimum rear volume 12 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl.grille 2 kg / 4.40 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
Description
