Key Features:

• DigitalMedia 8G+® receiver, 4K/60 scaler, audio extractor, and display controller
• Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable ^[1]
• HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
• Provides one HDMI® or DVI display output ^[2]
• Upscales the input signal to match the native resolution of any screen — including 4K and Ultra HD displays!
• Downscales 4K, UHD, and ultra high-resolution computer signals to enable viewing on 1080p and other lower-resolution displays
• Handles any input resolution from standard NTSC 480i or PAL 576i, to UHD and 4K
• Provides intelligent frame rate conversion
• Includes content-adaptive noise reduction
• Includes motion-adaptive de-interlacing
• Allows adjustable overscan or underscan up to 7.5%
• Automatically passes 3D video without scaling to 3D capable displays ^[8]
• Supports up to 8x8 video wall processing ^[9]
• Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
• Provides a balanced stereo analog line-level audio output with volume control ^[6]
• Allows de-embedding of stereo 2-channel audio signals
• HDCP 2.2 compliant
• Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable ^[1]
• Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e ^[1]
• Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e ^[1]
• Provides a 10/100 Ethernet LAN connection
• Compatible with Crestron USB over Ethernet Extenders ^[7]
• Enables device control via CEC, IR, RS-232, and Ethernet
• Provides two low-voltage relay control ports
• Allows quick, easy setup and diagnostics
• Powered via the DM connection or local power pack (included) ^[3,4]
• Low-profile surface mount design

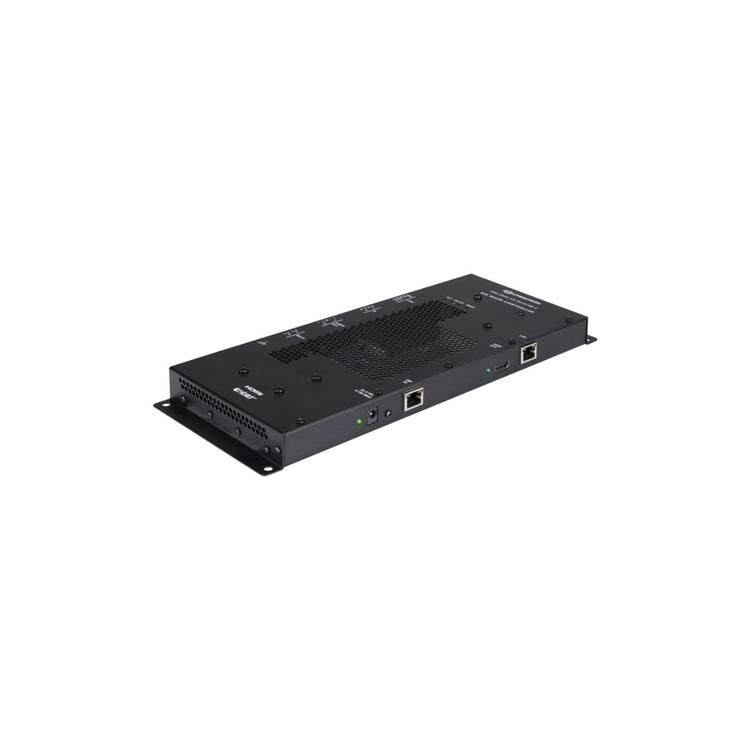

Benefits of Crestron DM-RMC-4K-SCALER-C  4K DigitalMedia 8G+® Receiver & Room Controller w/Scaler:

4K Ultra HD

Crestron DigitalMedia continues to advance the standard for digital AV signal distribution, delivering the world’s first end-to-end 4K system solution. The DM-RMC-4K-SCALER-C features the latest DM 8G+ technology, providing support for the transport of 4K and Ultra HD video signals. Support for 4K video also ensures support for the latest generation of computers and monitors with native resolutions beyond 1080p and WUXGA.

HDBaseT® Certified

Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ input, the DM-RMC-4K-SCALER-C can be connected directly to an HDBaseT compliant source without requiring a DM transmitter.

Multimedia Display Interface

A single HDMI digital AV output port is provided on the DM-RMC-4K-SCALER-C for connection to a display or other device. The HDMI output can also handle DVI signals using an appropriate adapter or interface cable.^[2]

A single CAT type cable connects the DM-RMC-4K-SCALER-C to a DM switcher or transmitter, or to an HDBaseT source, transporting video, audio, control, networking, and power signals all through one simple RJ45 connection.^[1,3,4] Multiple DM-RMC-4K-SCALER-Cs may be installed to handle each display in a multiroom distribution system, all fed from a central DM-MD series switcher. Or, a single DM-RMC-4K-SCALER-C can be fed straight from a DM 8G+ or HDBaseT transmitter, affording a simple solution for extending a computer or AV signal to a single display.

Embedded Device Control

The DM-RMC-4K-SCALER-C includes built-in RS-232, IR, and Ethernet control ports to enable programmable control of the display device connected to it (via a control system). It also offers an alternative to such conventional control methods by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to the control system, the DM-RMC-4K-SCALER-C provides a gateway for controlling the display device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters. The DM-RMC-4K-SCALER-C also supports CEC over HDBaseT, enabling control of an HDBaseT source connected to the DM 8G+ input. Two low-voltage relay ports are also included on the DM-RMC-4K-SCALER-C for control of a projection screen or lift.
