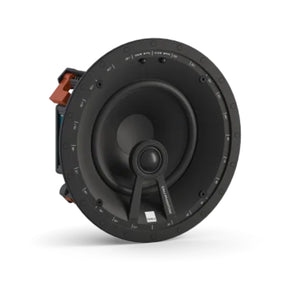

Dali Phantom E-60 In-ceiling Speaker
Dali Phantom E-60 In-ceiling Speaker - side rear view
Dali Phantom E-60

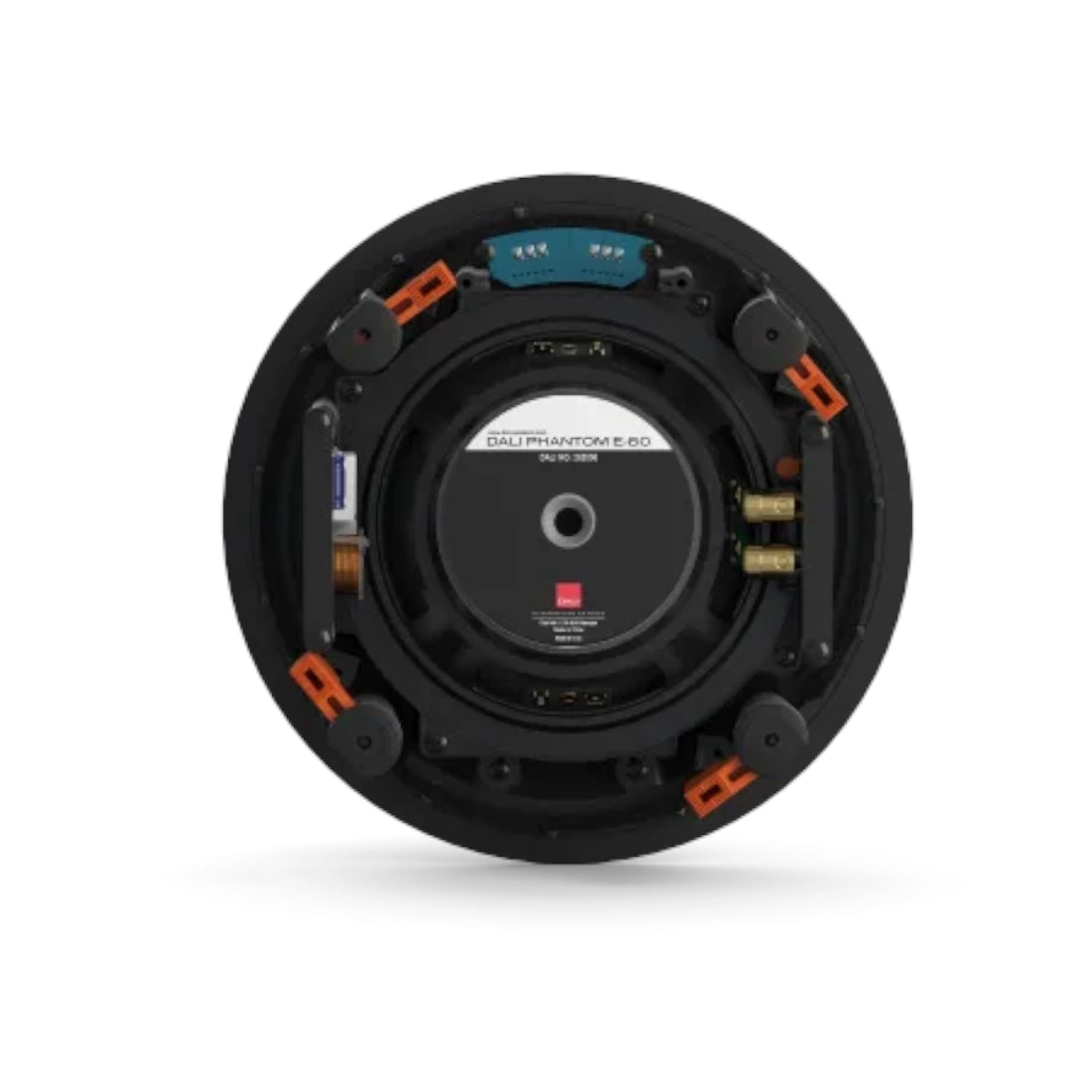

Dali Phantom E-60 - Rear View
    Dali Phantom E-60 In-ceiling Speaker
    Dali Phantom E-60 In-ceiling Speaker - side rear view
    Dali Phantom E-60
    Dali Phantom E-60 - Rear View
Dali Phantom E-60 In-ceiling Speaker
Dali Phantom E-60 In-ceiling Speaker - side rear view
Dali Phantom E-60
Dali Phantom E-60 - Rear View
Dali Phantom E-60 In-ceiling Speaker
Dali Phantom E-60 In-ceiling Speaker - side rear view
Dali Phantom E-60
Dali Phantom E-60 - Rear View
    Dali Phantom E-60 In-ceiling Speaker
    Dali Phantom E-60 In-ceiling Speaker - side rear view
    Dali Phantom E-60
    Dali Phantom E-60 - Rear View
Dali Phantom E-60 In-ceiling Speaker
Dali Phantom E-60 In-ceiling Speaker - side rear view
Dali Phantom E-60
Dali Phantom E-60 - Rear View

About

Description

The Dali Phantom E-60 is a great performing all-round in-ceiling speaker. It's big enough to deliver a complete audio experience and small enough to install discreetly into any room. Pair it for a stereo setup in a kitchen or family room or use it as a side or rear loudspeaker in a home cinema setup in a larger room. The PHANTOM E-60 is designed for in-ceiling use but can also be installed in-wall.

Warranty

2-year manufacturer's warranty

Dali Phantom E-60 Key Features

  • Wide dispersion -  DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Functional Flexibility - The Phantom E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space

Benefits of Dali Phantom E-60 In-ceiling Speaker

A flexible all-rounder

Dali Phantom E-60 - A great height, side or rear speaker

The PHANTOM E-60 is the perfect all-round loudspeaker. Its compact size makes it easy to install and fine-tune using the compass positioning system, but it's still big enough to deliver a complete audio experience. Pair it for a stereo setup in a kitchen or family room or use it as a side or rear loudspeaker in a home cinema setup in a larger room. The PHANTOM E-60 is designed for in-ceiling use but can also be installed in-wall.

Design details

Dali Phantom E-60 - Design details

Thick edges around the PHANTOM E-60 baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker. In contrast, the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 integrate into any room.

High quality crossover

Dali Phantom E-60 - High quality crossover

Designed specifically for the PHANTOM E-60, the crossover components have been chosen for their audiophile quality. All internal wiring is optimised for the speaker design and is secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Tweeter placement

Dali Phantom E-60 - Tweeter placement

The 25 mm soft dome tweeter module in the PHANTOM E-60 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter's positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.

Polypropylene woofer

Dali Phantom E-60 - Polypropylene woofer

To ensure the best balance between durability and great audio reproduction, the 6½" woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 to deliver a high-quality audio experience.

Wide dispersion

Dali Phantom E-50 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-60 also includes two slide switches for fine-tuning off-axis performance.

Where to Buy?

Buy Dali Phantom E-60 In-ceiling Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom E-60 In-ceiling Speaker

Brand & Model # Dali Phantom E-60
Frequency Range (+/-3 DB) [HZ]
52 - 25,000
Sensitivity [2.83V/1M, DB] 88 dB
Nominal Impedance [ohms] 8 ohm
Maximum SPL [dB] 105 dB
Recommended Amp. Power [Watts] 30 - 120
Crossover Frequency [HZ] 3,300
Crossover Principle
2-way
High Frequency Driver
1 x 25 mm soft dome / soft woven fabric
Low Frequency/midrange Driver(s) 1 x 6½ " Polypropylene
Connection input Single wire
Enclosure Type Open back
Other features Normal/High+
Normal/Mid+
Installation location In-ceiling/In-wall
Recommended Placement Ceiling/Front/Centre/Surround
Outer dimensions incl. grille (H x W x D) Ø 258 x 104 mm
Ø 10.16 x 4.09 inches
Outer dimensions excl. grille (H x W x D) Ø 242 x 100 mm
Ø 9.53 x 3.94 inches
Cut-out dimensions Ø 225 mm
Ø 8.86 inches
Mounting depth 96 mm
3.78 inches
Recommended rear volume (backbox) 5 - 50 litres
Optimum rear volume 15 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl.grille 2 kg / 4.40 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
Description

The Dali Phantom E-60 is a great performing all-round in-ceiling speaker. It's big enough to deliver a complete audio experience and small enough to install discreetly into any room. Pair it for a stereo setup in a kitchen or family room or use it as a side or rear loudspeaker in a home cinema setup in a larger room. The PHANTOM E-60 is designed for in-ceiling use but can also be installed in-wall.

Warranty

2-year manufacturer's warranty

Dali Phantom E-60 Key Features

  • Wide dispersion -  DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers
  • Easy Installation - The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place
  • Discreet Design - The thin magnetic front grilles integrate seamlessly into any home environment
  • Functional Flexibility - The Phantom E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space

Benefits of Dali Phantom E-60 In-ceiling Speaker

A flexible all-rounder

Dali Phantom E-60 - A great height, side or rear speaker

The PHANTOM E-60 is the perfect all-round loudspeaker. Its compact size makes it easy to install and fine-tune using the compass positioning system, but it's still big enough to deliver a complete audio experience. Pair it for a stereo setup in a kitchen or family room or use it as a side or rear loudspeaker in a home cinema setup in a larger room. The PHANTOM E-60 is designed for in-ceiling use but can also be installed in-wall.

Design details

Dali Phantom E-60 - Design details

Thick edges around the PHANTOM E-60 baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker. In contrast, the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 integrate into any room.

High quality crossover

Dali Phantom E-60 - High quality crossover

Designed specifically for the PHANTOM E-60, the crossover components have been chosen for their audiophile quality. All internal wiring is optimised for the speaker design and is secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

Tweeter placement

Dali Phantom E-60 - Tweeter placement

The 25 mm soft dome tweeter module in the PHANTOM E-60 is fixed over the woofer in a composite housing mounted on an aeroplane-wing profile wishbone bracket. As well as reducing the size of the speaker, the wing design and off-centre placement of the tweeter help eliminate sound colouration normally associated with coaxial drivers. The tweeter's positioning also helps the midrange and low frequencies blend gracefully with the high frequencies for a precise and natural overall performance, even at higher volumes.

Polypropylene woofer

Dali Phantom E-60 - Polypropylene woofer

To ensure the best balance between durability and great audio reproduction, the 6½" woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 to deliver a high-quality audio experience.

Wide dispersion

Dali Phantom E-50 - Wide dispersion

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling. The PHANTOM E-60 also includes two slide switches for fine-tuning off-axis performance.

Where to Buy?

Buy Dali Phantom E-60 In-ceiling Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Dali Phantom E-60 In-ceiling Speaker

Brand & Model # Dali Phantom E-60
Frequency Range (+/-3 DB) [HZ]
52 - 25,000
Sensitivity [2.83V/1M, DB] 88 dB
Nominal Impedance [ohms] 8 ohm
Maximum SPL [dB] 105 dB
Recommended Amp. Power [Watts] 30 - 120
Crossover Frequency [HZ] 3,300
Crossover Principle
2-way
High Frequency Driver
1 x 25 mm soft dome / soft woven fabric
Low Frequency/midrange Driver(s) 1 x 6½ " Polypropylene
Connection input Single wire
Enclosure Type Open back
Other features Normal/High+
Normal/Mid+
Installation location In-ceiling/In-wall
Recommended Placement Ceiling/Front/Centre/Surround
Outer dimensions incl. grille (H x W x D) Ø 258 x 104 mm
Ø 10.16 x 4.09 inches
Outer dimensions excl. grille (H x W x D) Ø 242 x 100 mm
Ø 9.53 x 3.94 inches
Cut-out dimensions Ø 225 mm
Ø 8.86 inches
Mounting depth 96 mm
3.78 inches
Recommended rear volume (backbox) 5 - 50 litres
Optimum rear volume 15 litres
Ceiling/wall thickness (total dog-leg span) 10 - 70 mm
0.39 - 2.76 inches
Weight incl.grille 2 kg / 4.40 lb
Finish White
Accessories Manual
Cut-out template
Front grille
Logo badge
