About
The slimmest floor-standing loudspeaker Bowers & Wilkins makes, the 704 S3 still packs a hefty punch. Its twin Aerofoil Profile bass drivers ensure ample extension and scale, while its decoupled Continuum cone FST™ driver renders crystal clear midrange performance. This elegant floor-standing loudspeaker is slimmer and easier to fit in than ever. An ideal fit for superlative sound in smaller spaces. Enjoy B&W's pristine studio-quality sound & stunning clarity in your music, movies, TV shows & gaming sessions.
Warranty
1-year manufacturer's warranty
Key Features
- Premium-grade 3-way compact floorstanding speaker from B&W
- Features a 1” Decoupled Carbon Dome tweeter that sits on top of the speaker
- Incorporates a 5” Continuum cone FST driver for articulate and detailed midrange
- Sports 2 x 5” Aerofoil Profile woofers for a deep bass response
- Optimum crossover tuning for amazing power, loudness and clarity
- Minimal and classy aesthetics that emanates a high-end appeal
- Inspired by technologies found in B&W's flagship and iconic speakers
- Timbre-matched with speakers from the B&W 700 S3 series
Benefits of Bowers & Wilkins (B&W) 704 S3 Floorstanding Speaker
Slim design, big sound
This elegant floor-standing loudspeaker is slimmer and easier to accommodate than ever. Perfect for superlative sound in smaller spaces.
A house for high frequencies
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated mid-range cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Bio-mimetic Suspension and mid-range decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Technical Specifications of Bowers & Wilkins 704 S3 Floorstanding Speaker
Brand & Model # | B&W 704 S3 Floorstanding Speaker |
Technical features |
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-TopContinuum™ cone FST™ midrange Decoupled midrange Aerofoil™ Profile bass cones Flowport™ |
|
3-way vented-box system
|
Drive units |
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange2x ø130mm (5 in) Aerofoil profile bass |
Frequency range
|
43Hz and 33kHz
|
Frequency response |
48Hz - 28kHz ±3dB
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz<0.5% 300Hz - 20kHz |
Sensitivity | 88dB spl (2.83Vrms, 1m) |
Nominal Impedance | 8Ω (minimum 3.1Ω) |
Recommended Amplifier Power | 30W - 150W into 8Ω on unclipped programme |
Max recommended cable impedance | 0.1Ω |

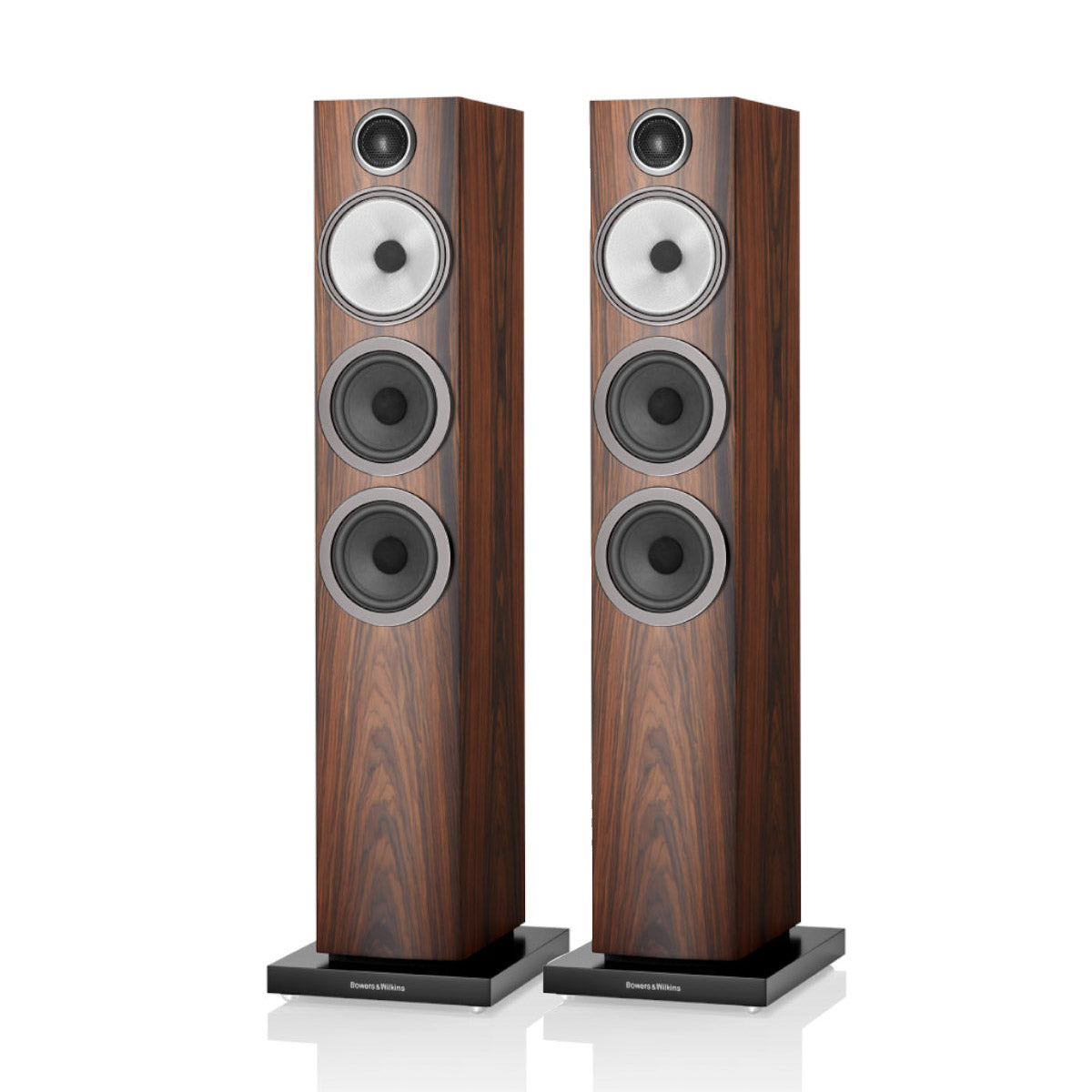

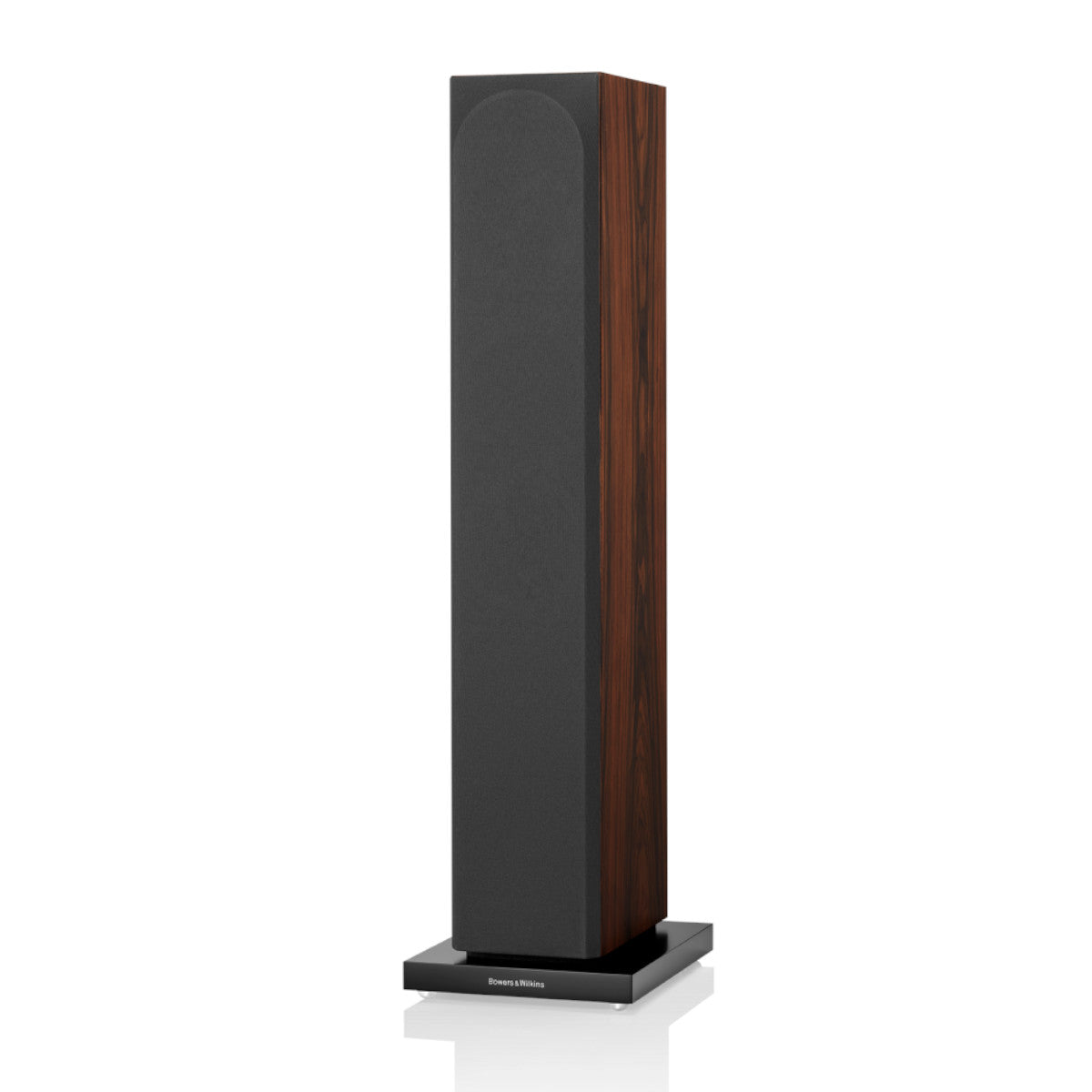

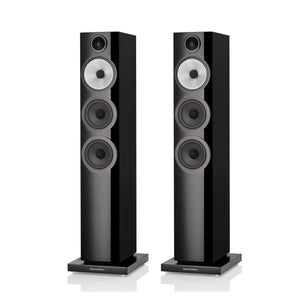

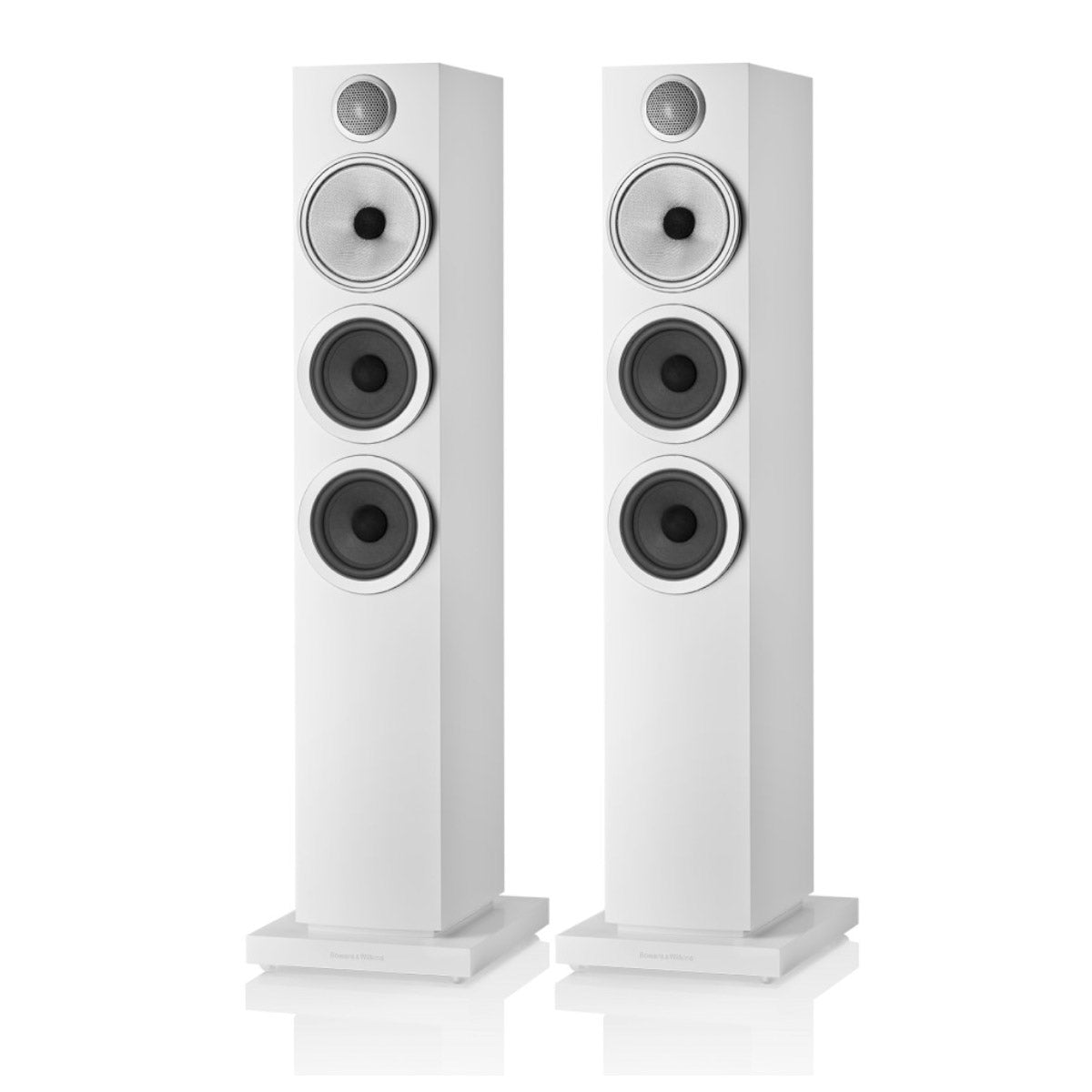

Cabinet finishes | Gloss Black Satin White Mocha |

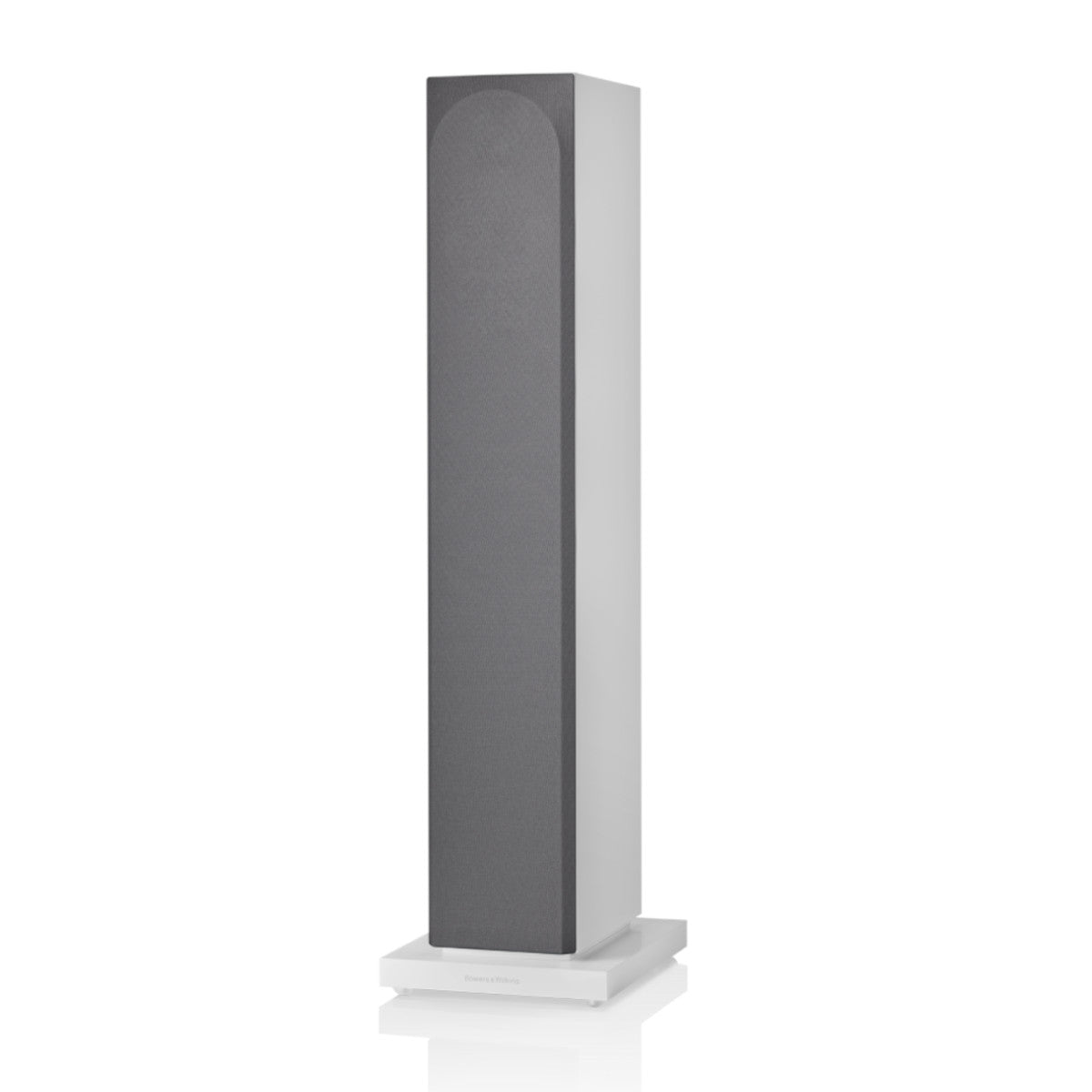

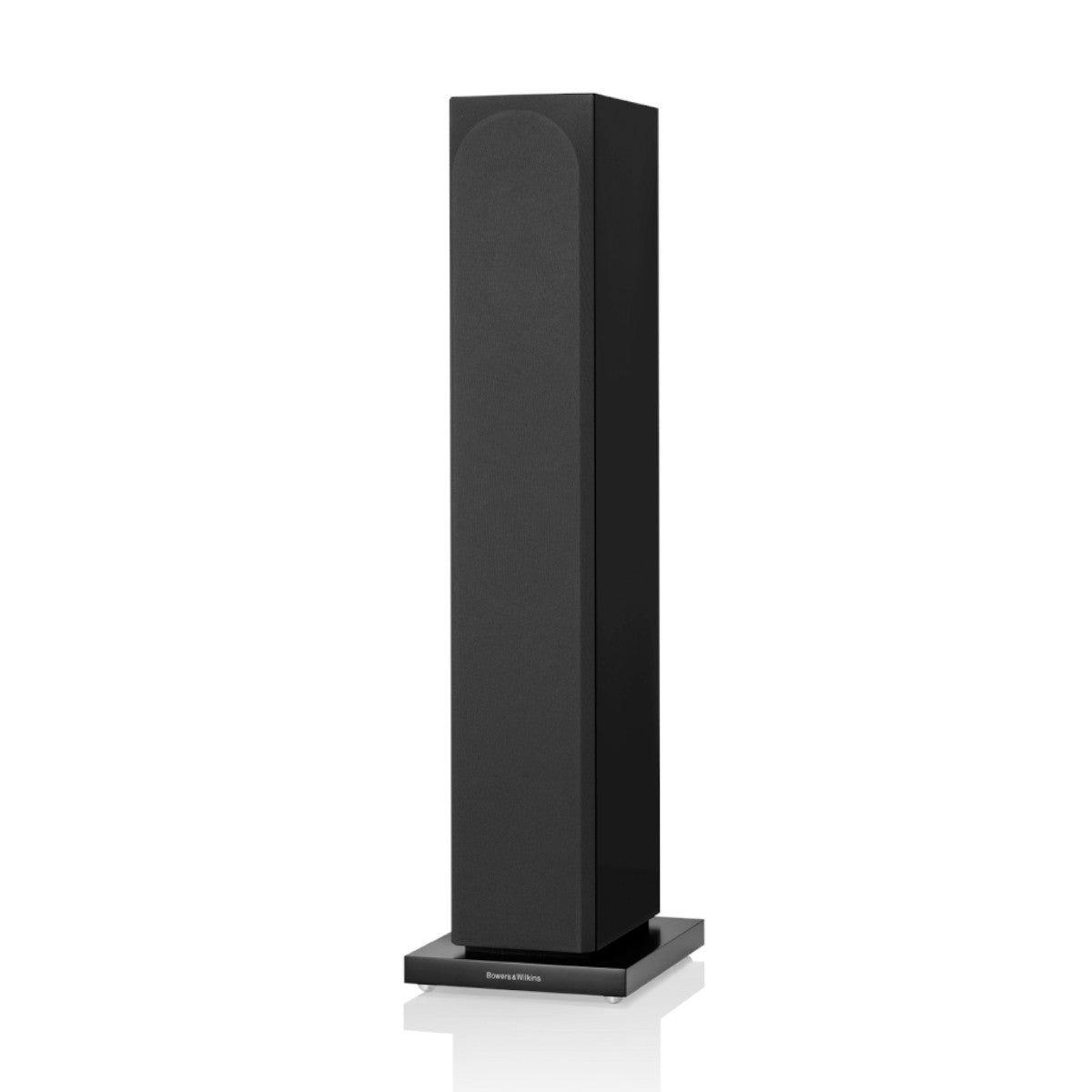

Grille finishes | Black Grey (Satin White only) |
Dimensions |
Height: 925 mm cabinet only
964 mm including plinthWidth: 165 mm cabinet only 252 mm including plinth Depth: 263 mm cabinet only 300 mm including grille and terminals 321 mm including plinth |
Weight |
20.53kg
|
The slimmest floor-standing loudspeaker Bowers & Wilkins makes, the 704 S3 still packs a hefty punch. Its twin Aerofoil Profile bass drivers ensure ample extension and scale, while its decoupled Continuum cone FST™ driver renders crystal clear midrange performance. This elegant floor-standing loudspeaker is slimmer and easier to fit in than ever. An ideal fit for superlative sound in smaller spaces. Enjoy B&W's pristine studio-quality sound & stunning clarity in your music, movies, TV shows & gaming sessions.
Warranty
1-year manufacturer's warranty
Key Features
- Premium-grade 3-way compact floorstanding speaker from B&W
- Features a 1” Decoupled Carbon Dome tweeter that sits on top of the speaker
- Incorporates a 5” Continuum cone FST driver for articulate and detailed midrange
- Sports 2 x 5” Aerofoil Profile woofers for a deep bass response
- Optimum crossover tuning for amazing power, loudness and clarity
- Minimal and classy aesthetics that emanates a high-end appeal
- Inspired by technologies found in B&W's flagship and iconic speakers
- Timbre-matched with speakers from the B&W 700 S3 series
Benefits of Bowers & Wilkins (B&W) 704 S3 Floorstanding Speaker
Slim design, big sound
This elegant floor-standing loudspeaker is slimmer and easier to accommodate than ever. Perfect for superlative sound in smaller spaces.
A house for high frequencies
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated mid-range cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Bio-mimetic Suspension and mid-range decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Technical Specifications of Bowers & Wilkins 704 S3 Floorstanding Speaker
Brand & Model # | B&W 704 S3 Floorstanding Speaker |
Technical features |
Decoupled Carbon Dome tweeter

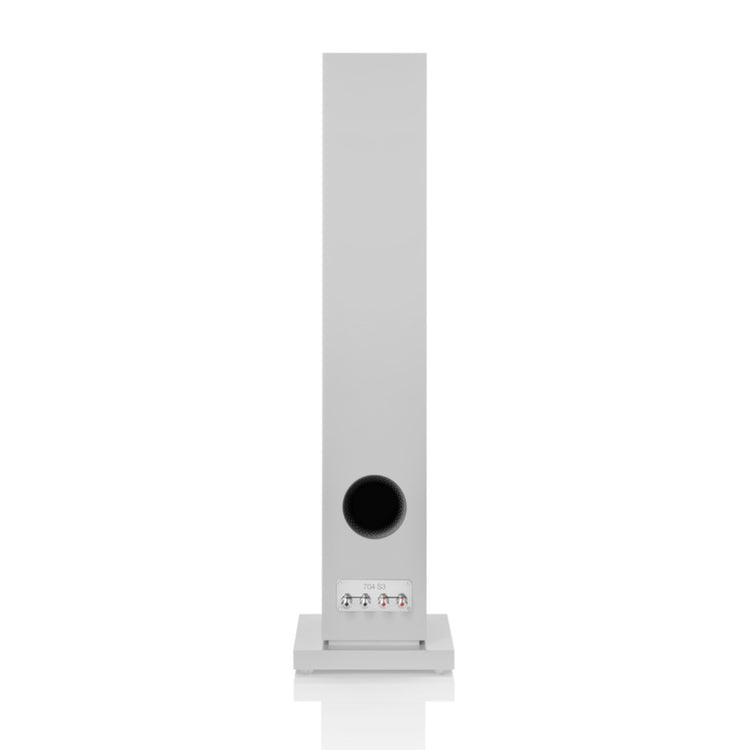

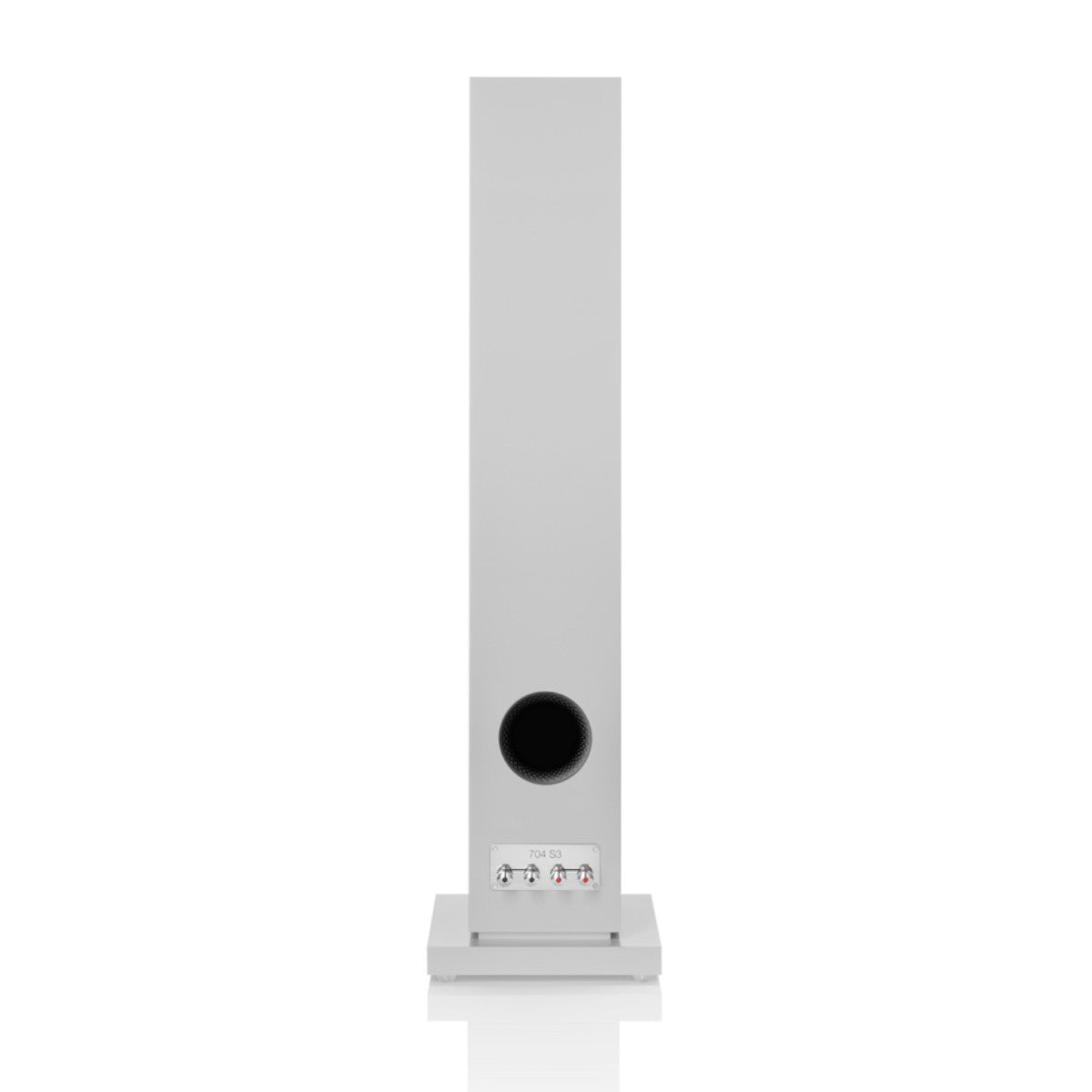

Solid Body Tweeter-on-TopContinuum™ cone FST™ midrange Decoupled midrange Aerofoil™ Profile bass cones Flowport™ |
|
3-way vented-box system
|
Drive units |
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange2x ø130mm (5 in) Aerofoil profile bass |
Frequency range
|
43Hz and 33kHz
|
Frequency response |
48Hz - 28kHz ±3dB
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz<0.5% 300Hz - 20kHz |
Sensitivity | 88dB spl (2.83Vrms, 1m) |
Nominal Impedance | 8Ω (minimum 3.1Ω) |
Recommended Amplifier Power | 30W - 150W into 8Ω on unclipped programme |
Max recommended cable impedance | 0.1Ω |
Cabinet finishes | Gloss Black Satin White Mocha |
Grille finishes | Black Grey (Satin White only) |
Dimensions |
Height: 925 mm cabinet only
964 mm including plinthWidth: 165 mm cabinet only 252 mm including plinth Depth: 263 mm cabinet only 300 mm including grille and terminals 321 mm including plinth |
Weight |
20.53kg
|

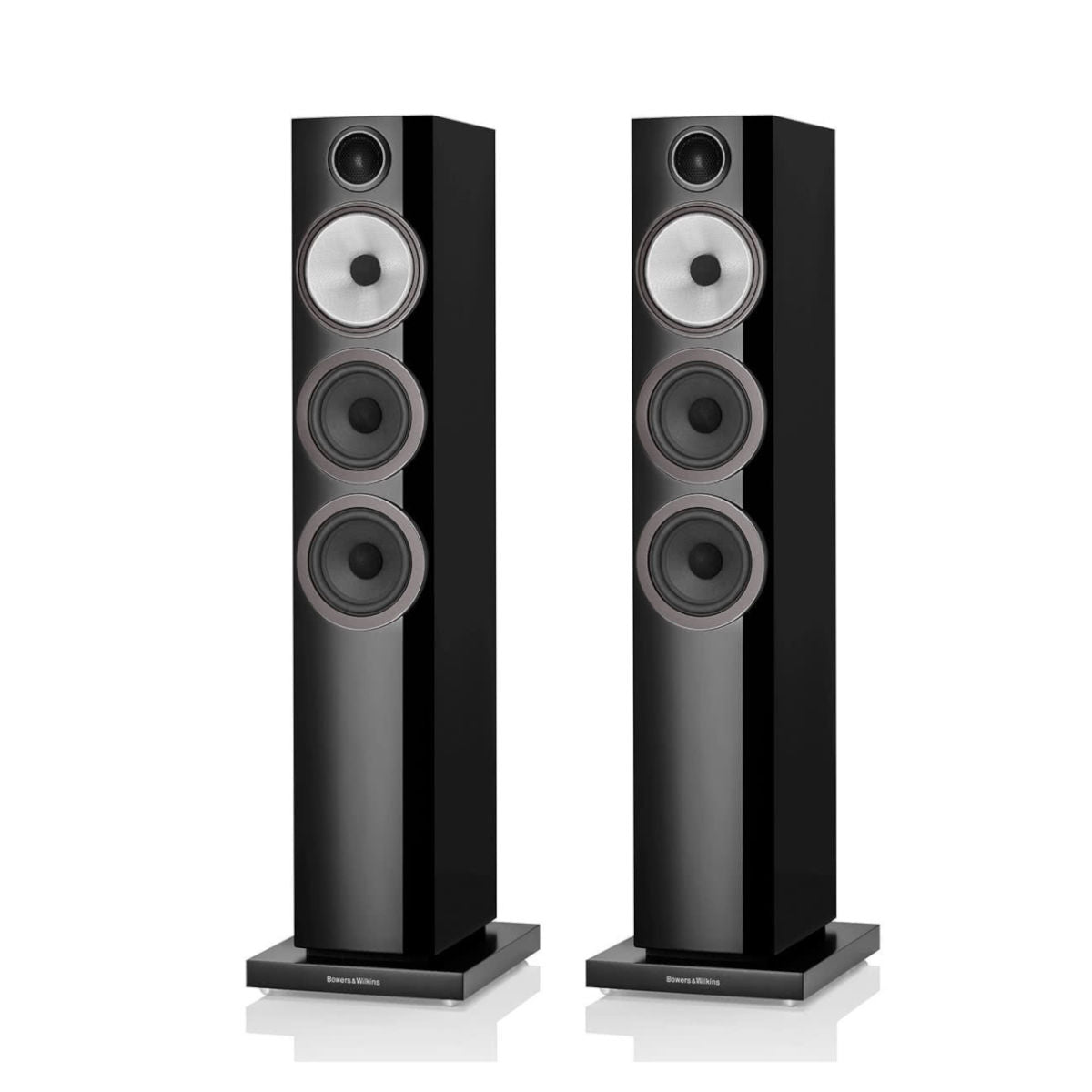

Bowers & Wilkins (B&W) 704 S3 Floorstanding Speaker (Pair)
Country of Origin: China
